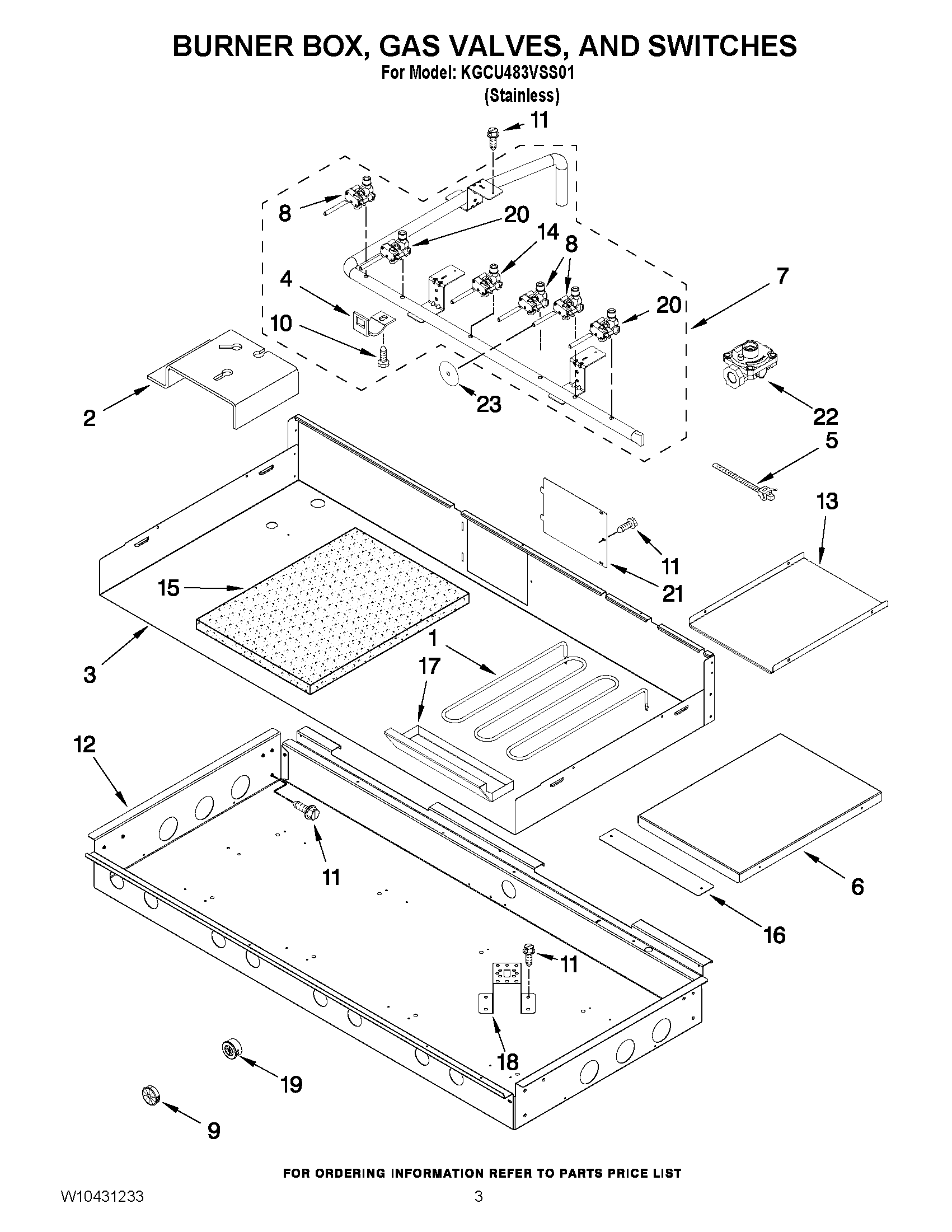

KGCU483VSS01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

Position	Product
NI	W10353152 Whirlpool Gas Tubing
NI	W10280797 Whirlpool Gas Tubing
NI	W10353141 Whirlpool Gas Tubing Assembly
NI	WPW10353133 Whirlpool Gas Tubing
NI	W10353154 Whirlpool Gas Tubing
1	W10193014 Whirlpool Grille Element
2	Bracket, Mounting Orifice
3	COVER, BURNER BOX
4	W10189107 Whirlpool Mounting Bracket
5	W11675299 Whirlpool Tie Wire
6	W10246074 Whirlpool Insulation Tray
7	ASSEMBLY, MANIFOLD
8	WPW10385582 Whirlpool Burner Valve
9	W10189097 Whirlpool Bushing Assembly
10	W10189140 Whirlpool Screw
11	SCREW
12	BOX, BURNER
13	W10145620 Whirlpool Bottom Model
14	WPW10385583 Whirlpool Burner Valve
15	W11684995 Whirlpool Insulation
16	COVER, PLATE
17	W10276497 Whirlpool Drip Tray
18	W10369547 Whirlpool Mounting Bracket
19	Snap Bushing
20	WPW10371235 Whirlpool Burner Valve
21	W10115843 Whirlpool Access Cover
22	WP9759091 Whirlpool Regulator
23	W10423373 Whirlpool Switch Seal
