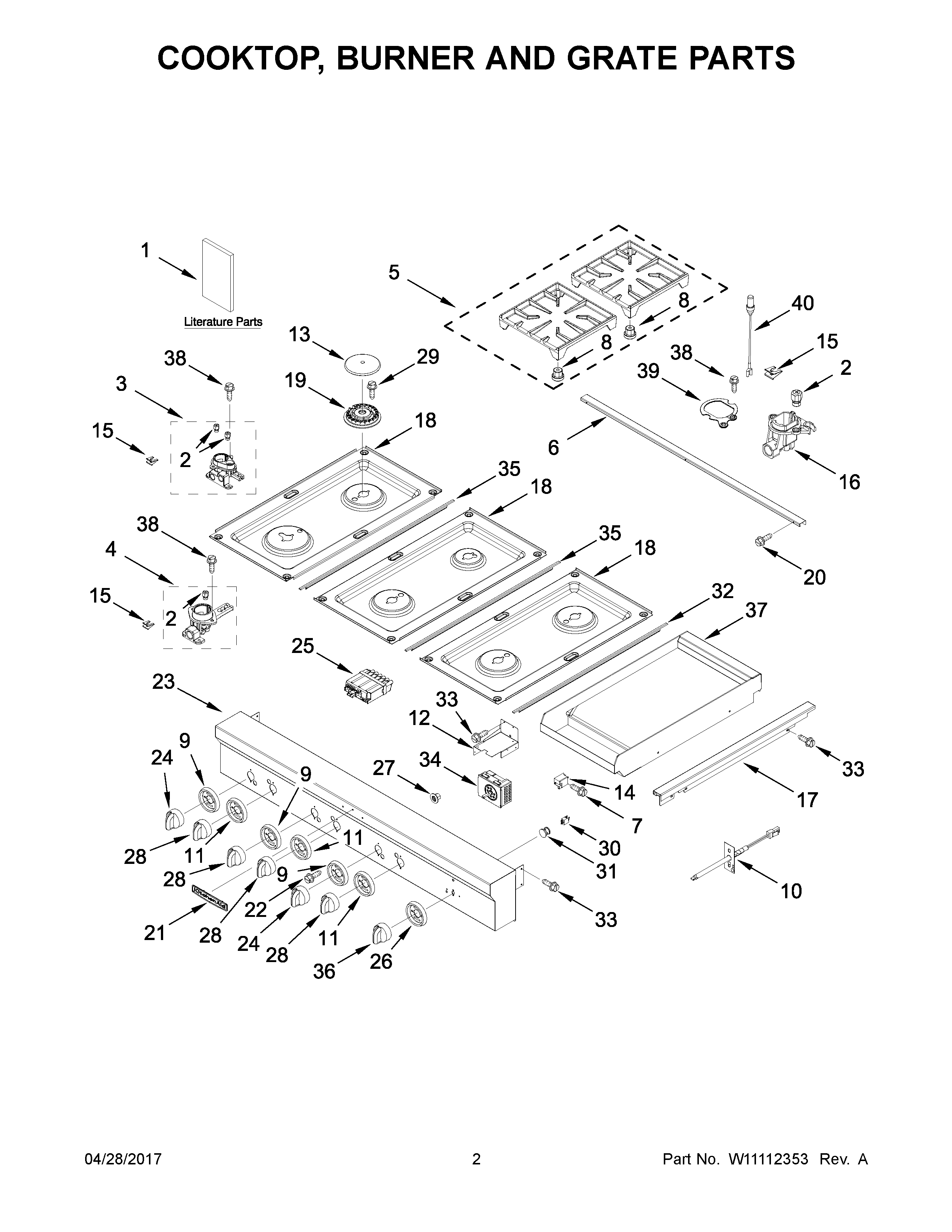

KGCU483VSS02 02 – COOKTOP, BURNER AND GRATE PARTS

KGCU483VSS02 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KGCU483VSS02 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NI16515 Whirlpool Clip
NIW10624584 Whirlpool Power Cord
NIW10116096 Whirlpool Wire Harness
NIW10856625 Whirlpool Venturi
NIW11676349 Whirlpool Screw
NI8287106 Whirlpool Clip Assembly
NICABINET (NOT A SERVICEABLE PART)
NIWPL W10283996
NIW10763503 Whirlpool Wire Harness
NIW10399615 Whirlpool Wire Harness
1DSafer Cooking Tips (French)
1BINSTRUCTIONS, INSTALLATION
1TECH SHEET
1AGUIDE, USE & CARE
1CSAFER COOKING TIPS (ENGLISH
2BW11051480 Whirlpool Orifice Assembly
2AW10819958 Whirlpool Orifice Spud
2CW10791075 Whirlpool Orifice Spud
2W10657945 Whirlpool Orifice Spud
3W10846622 Whirlpool Orifice Holder
4W10846623 Whirlpool Orifice Holder
5W11569347 Whirlpool Grate Kit
6W10269216 Whirlpool Top Trim
74450800 Whirlpool Oven Screw
88186321 Whirlpool Range Foot Pads Set of 4
9W10261510 Whirlpool Knob Bezel
10W10319835 Whirlpool Sensor
11W10261512 Whirlpool Knob Bezel
12BRACKET, SPARK MODULE
13ACAP-BURNER
13BCAP-BURNER
13CAP-BURNER
14W11601369 Whirlpool Spark Module
15W11684564 Whirlpool Clip Assembly
15A8286863 Whirlpool Oven Clip
16W10883622 Whirlpool Orifice Holder
17AW10226013 Whirlpool Cooktop Trim Assembly
17W10226012 Whirlpool Cooktop Trim
18W10352969 Whirlpool Cooktop Assembly
18AW10352966 Whirlpool Cooktop
18BW10352963 Whirlpool Cooktop
19ABURNR-HEAD
19BBURNR-HEAD
19W11106799 Whirlpool Range Burner Base Surface
20SCREW
21W10201187 Whirlpool Nameplate
22SCREW
23WPL W10778223
24W11244176 Whirlpool Knob Assembly
25WPW10475147 Whirlpool Spark Module
26W10261515 Whirlpool Knob Bezel
27WPL 7103P16660
28W11177673 Whirlpool Knob
29WPW10373929 Whirlpool Screw
30W10116114 Whirlpool Indicator Light
31W10116115 Whirlpool Light Lens
32W10291193 Whirlpool Trim Top
33SCREW
34WPW10116113 Whirlpool Infinite Switch
35W10271524 Whirlpool Trim Top
36W10250390 Whirlpool Knob
37W10625221 Whirlpool Module
38AW10491985 Whirlpool Screw
38WP3177991 Whirlpool Screw
398286930 Whirlpool Oven Gasket
40WPL 8286724
