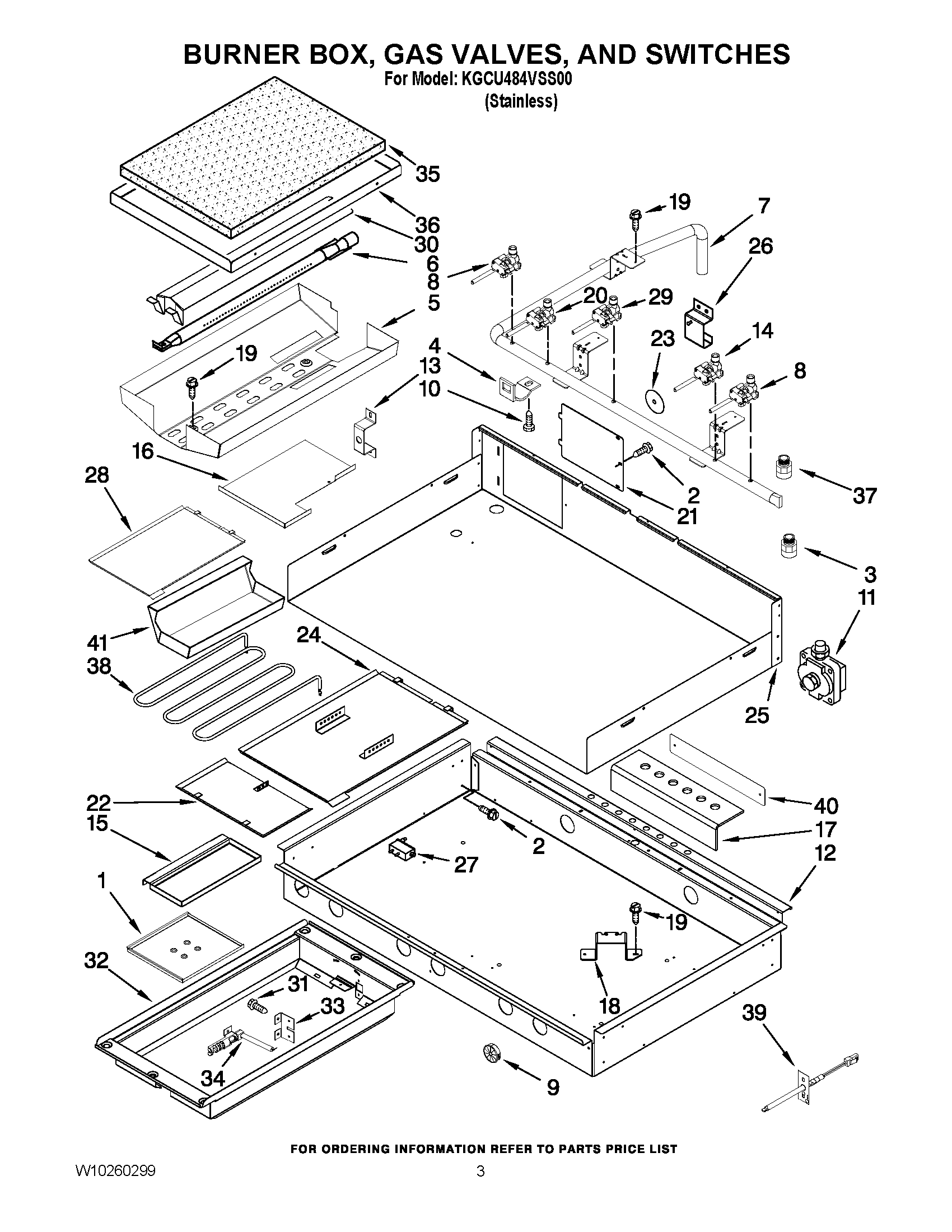

KGCU484VSS00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NIW10158807 Whirlpool Burner Tube
NITUBING, GAS (LEFT REAR)
NIW10115911 Whirlpool Gas Tubing
NIW10115910 Whirlpool Gas Tubing
1TRAY, GRILL DRIP
2WP4449809 Whirlpool Screw
34453115 Whirlpool Oven Adapter
4W10189107 Whirlpool Mounting Bracket
5DEFLECTOR, GRILL
6W10223569 Whirlpool Burner Grille
7MANIFOLD
8WPW10326645 Whirlpool Burner Valve
9W10189097 Whirlpool Bushing Assembly
10W10189140 Whirlpool Screw
11WP9759091 Whirlpool Regulator
12BURNER BOX
13BRACKET, GRILL ORIFICE MOUNTING
14WPW10385583 Whirlpool Burner Valve
15W10250473 Whirlpool Drip Tray
16DRIP TRAY HOLDER
17DRIP TRAY ROUTER
18BRACKET, BURNER (LEFT FRONT, LEFT REAR & RIGHT FRONT)
19WP3177991 Whirlpool Screw
20WPW10371235 Whirlpool Burner Valve
21W10115843 Whirlpool Access Cover
22W10250468 Whirlpool Grille Guard
23W10189177 Whirlpool Seal Switch
24DEFLECTOR, GREASE (REAR)
25COVER, BURNER BOX
26Bracket, Mounting Orifice
27W11601369 Whirlpool Spark Module
28DRIP TRAY ROUTER 1
29W10305285 Whirlpool Grill Valve
30FLAME SPREADER
31SCREW
32WPW10267890 Whirlpool Module
33BRACKET, GRILL IGNITOR
34W10268770 Whirlpool Surface Igniter
35W11684995 Whirlpool Insulation
36W10246074 Whirlpool Insulation Tray
37W10145620 Whirlpool Bottom Model
38W10193014 Whirlpool Grille Element
39WPW10131825 Whirlpool Oven Temperature Sensor
40COVER, PLATE
41W10276497 Whirlpool Drip Tray
