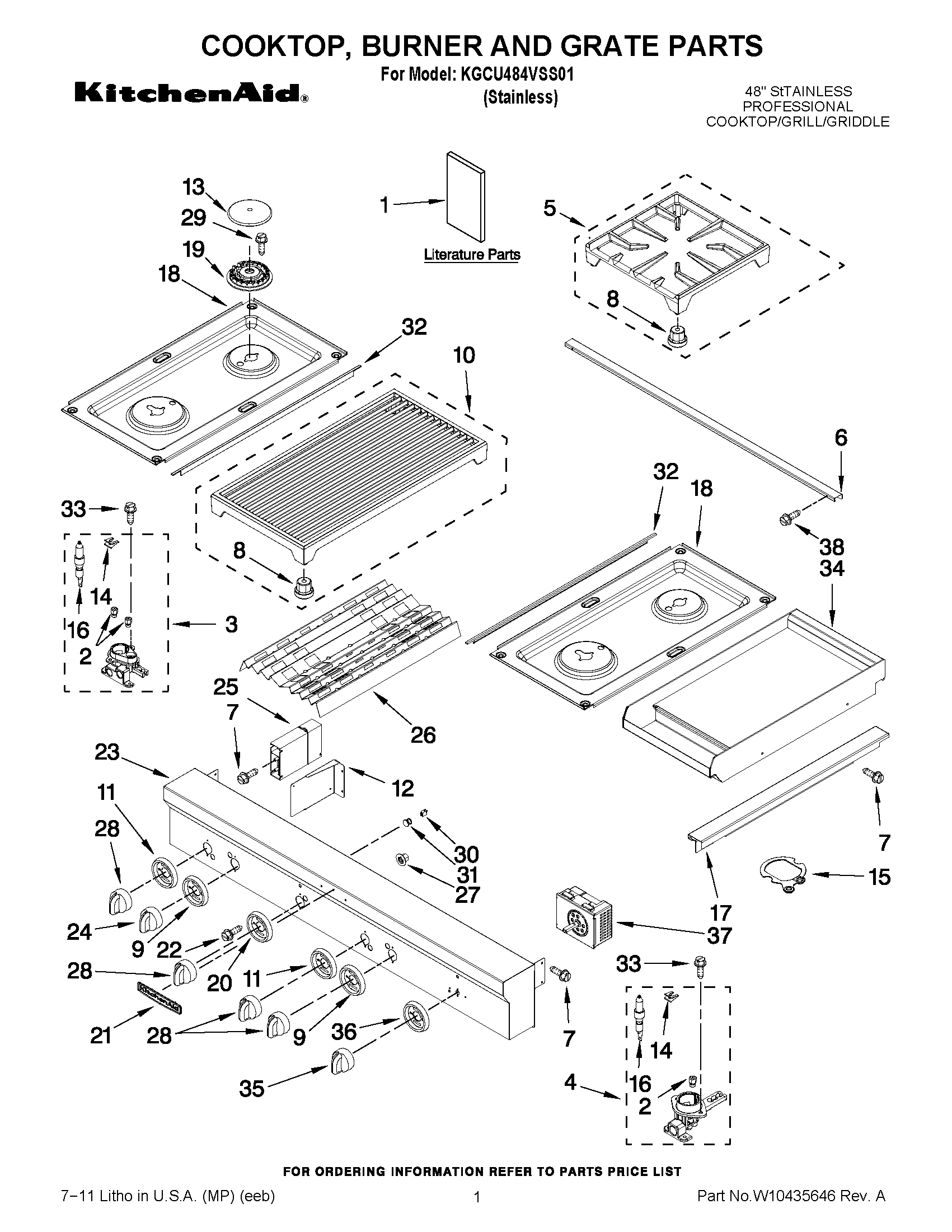

KGCU484VSS01 01 – COOKTOP, BURNER AND GRATE PARTS

KGCU484VSS01 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KGCU484VSS01 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
1TECH SHEET
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
24456495 Whirlpool Oven Orifice
2W11051480 Whirlpool Orifice Assembly
2SPUD-ORFCE
2W10819958 Whirlpool Orifice Spud
3WPW10364555 Whirlpool Orifice Holder
4W10282659 Whirlpool Orifice Holder
4WPW10364556 Whirlpool Orifice Holder
5WPW10115928 Whirlpool Burner Grate
6W10269216 Whirlpool Top Trim
7SCREW
8W10185266 Whirlpool Burner Grate Foot Pad (4 Pack)
9W10261510 Whirlpool Knob Bezel
10W11241676 Whirlpool Grille Grate
11W10261512 Whirlpool Knob Bezel
12W10367052 Whirlpool Switch Bracket
13CAP-BURNER
13CAP-BURNER
13CAP-BURNER
148286863 Whirlpool Oven Clip
14W10256046 Whirlpool Clip
158286930 Whirlpool Oven Gasket
16WPW10145991 Whirlpool Surface Igniter
16W10833887 Whirlpool Surface Igniter
17W10226012 Whirlpool Cooktop Trim
17W10226013 Whirlpool Cooktop Trim Assembly
18W10352966 Whirlpool Cooktop
18W10352969 Whirlpool Cooktop Assembly
19BURNR-HEAD
19BURNR-HEAD
19W11106799 Whirlpool Range Burner Base Surface
20BEZEL, GRILL
21W10201187 Whirlpool Nameplate
22SCREW
23W10910413 Whirlpool Control Panel
24W11244176 Whirlpool Knob Assembly
25MODULE, SPARK
26WAVE, TRAY
27WPL 7103P16660
28W11177673 Whirlpool Knob
29W11404293 Whirlpool Screw
30W10116114 Whirlpool Indicator Light
31W10116115 Whirlpool Light Lens
32W10291193 Whirlpool Trim Top
33WP3177991 Whirlpool Screw
34W10625221 Whirlpool Module
35W10250390 Whirlpool Knob
36W10261515 Whirlpool Knob Bezel
37WPW10116113 Whirlpool Infinite Switch
38SCREW
