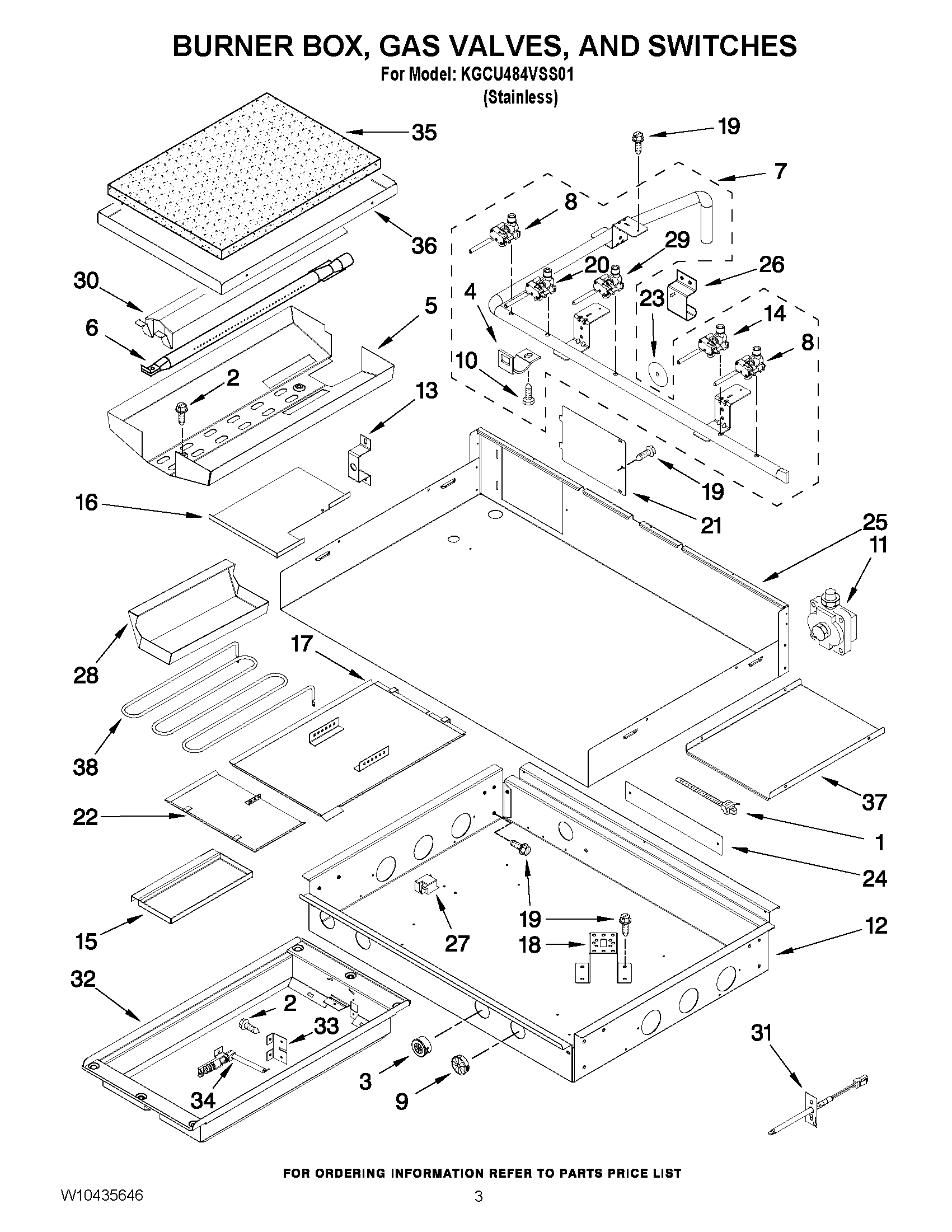

KGCU484VSS01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NIW10353141 Whirlpool Gas Tubing Assembly
NIW10158807 Whirlpool Burner Tube
NIW10280797 Whirlpool Gas Tubing
NIWPW10353133 Whirlpool Gas Tubing
NIW10353154 Whirlpool Gas Tubing
NIW10353152 Whirlpool Gas Tubing
1W11675299 Whirlpool Tie Wire
2SCREW
3Snap Bushing
4W10189107 Whirlpool Mounting Bracket
5DEFLECTOR, GRILL
6W10223569 Whirlpool Burner Grille
7WPW10402600 Whirlpool Manifold
8WPW10385582 Whirlpool Burner Valve
9W10189097 Whirlpool Bushing Assembly
10W10189140 Whirlpool Screw
11WP9759091 Whirlpool Regulator
12BOX, BURNER
13BRACKET, GRILL ORIFICE MOUNTING
14WPW10385583 Whirlpool Burner Valve
15W10250473 Whirlpool Drip Tray
16HOLDER, DRIP TRAY
17DRIP TRAY, ROUTER 1
18W10369547 Whirlpool Mounting Bracket
19SCREW
20WPW10371235 Whirlpool Burner Valve
21W10115843 Whirlpool Access Cover
22W10250468 Whirlpool Grille Guard
23W10189177 Whirlpool Seal Switch
24COVER, PLATE
25COVER, BURNER BOX
26Bracket, Mounting Orifice
27W11601369 Whirlpool Spark Module
28W10276497 Whirlpool Drip Tray
29W10305285 Whirlpool Grill Valve
30FLAME SPREADER
31W10319835 Whirlpool Sensor
32WPW10267890 Whirlpool Module
33BRACKET, GRILL IGNITOR
34W10268770 Whirlpool Surface Igniter
35W11684995 Whirlpool Insulation
36W10246074 Whirlpool Insulation Tray
37W10145620 Whirlpool Bottom Model
38W10193014 Whirlpool Grille Element
