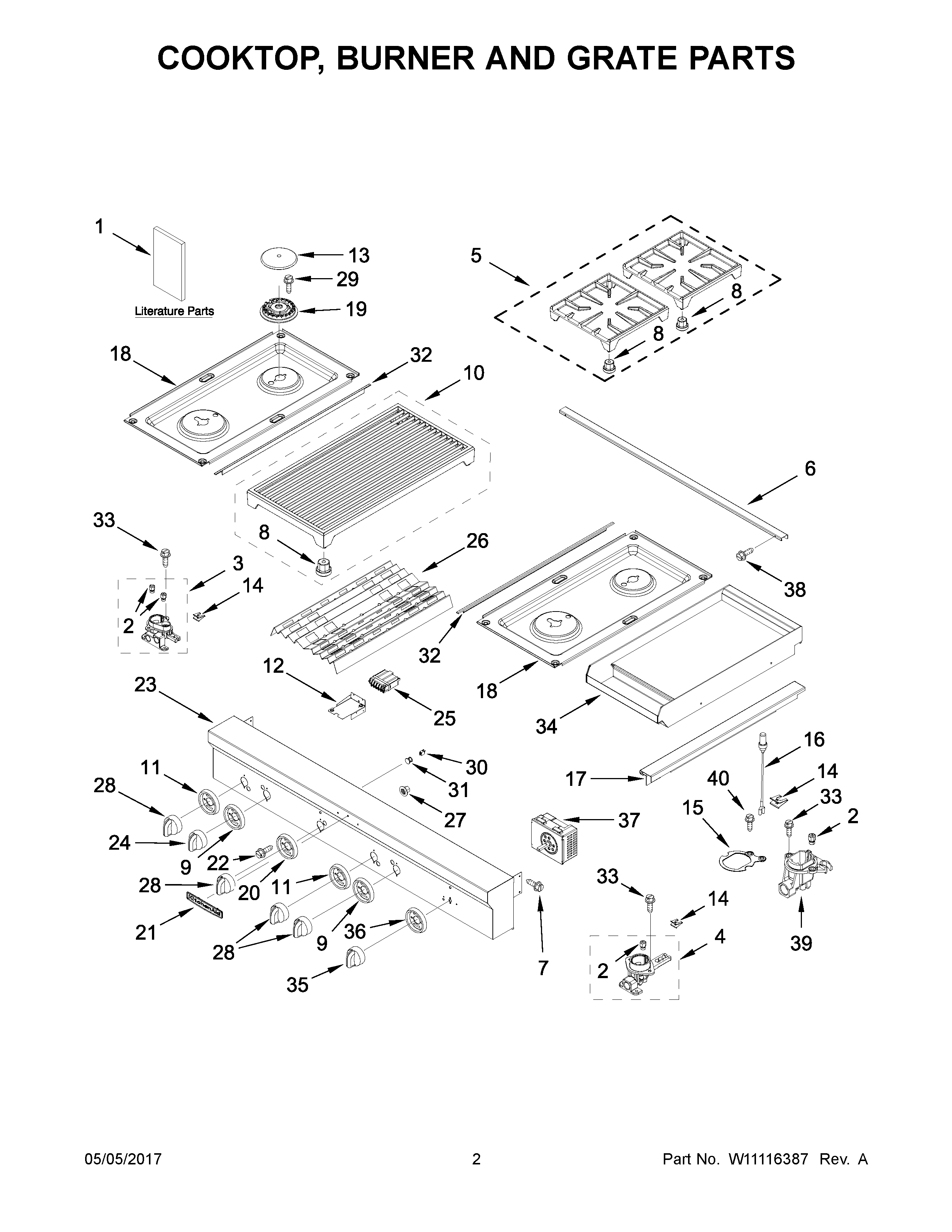

KGCU484VSS02 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	W10624584 Whirlpool Power Cord
NI	8287106 Whirlpool Clip Assembly
NI	4450800 Whirlpool Oven Screw
NI	W10116096 Whirlpool Wire Harness
NI	W10116174 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10116181 Whirlpool Wire Harness
NI	W10763505 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
1B	INSTRUCTIONS, INSTALLATION
1A	GUIDE, USE & CARE
1D	Safer Cooking Tips (French)
1C	SAFER COOKING TIPS (ENGLISH
1	TECH SHEET
2C	W10791075 Whirlpool Orifice Spud
2B	W11051480 Whirlpool Orifice Assembly
2A	W10819958 Whirlpool Orifice Spud
2	W10657945 Whirlpool Orifice Spud
3	W10846622 Whirlpool Orifice Holder
4	W10846623 Whirlpool Orifice Holder
5	W11569347 Whirlpool Grate Kit
6	W10269216 Whirlpool Top Trim
7	SCREW
8	8186321 Whirlpool Range Foot Pads Set of 4
9	W10261510 Whirlpool Knob Bezel
10	W11241676 Whirlpool Grille Grate
11	W10261512 Whirlpool Knob Bezel
12	BRACKET, SPARK MODULE
13	CAP-BURNER
13A	CAP-BURNER
13B	CAP-BURNER
14A	8286863 Whirlpool Oven Clip
14	W11684564 Whirlpool Clip Assembly
15	8286930 Whirlpool Oven Gasket
16	WPL 8286724
17	W10226012 Whirlpool Cooktop Trim
17A	W10226013 Whirlpool Cooktop Trim Assembly
18	W10352969 Whirlpool Cooktop Assembly
18A	W10352966 Whirlpool Cooktop
19A	BURNR-HEAD
19B	BURNR-HEAD
19	W11106799 Whirlpool Range Burner Base Surface
20	BEZEL, GRILL
21	W10201187 Whirlpool Nameplate
22	SCREW
23	W10910413 Whirlpool Control Panel
24	W11244176 Whirlpool Knob Assembly
25	WPW10475147 Whirlpool Spark Module
26	WAVE, TRAY
27	WPL 7103P16660
28	W11177673 Whirlpool Knob
29	W11241230 Whirlpool Screw
30	W10116114 Whirlpool Indicator Light
31	W10116115 Whirlpool Light Lens
32	W10291193 Whirlpool Trim Top
33A	W10491985 Whirlpool Screw
33	WP3177991 Whirlpool Screw
34	W10625221 Whirlpool Module
35	W10250390 Whirlpool Knob
36	W10261515 Whirlpool Knob Bezel
37	WPW10116113 Whirlpool Infinite Switch
38	SCREW
39	W10883622 Whirlpool Orifice Holder
40	W11676349 Whirlpool Screw
