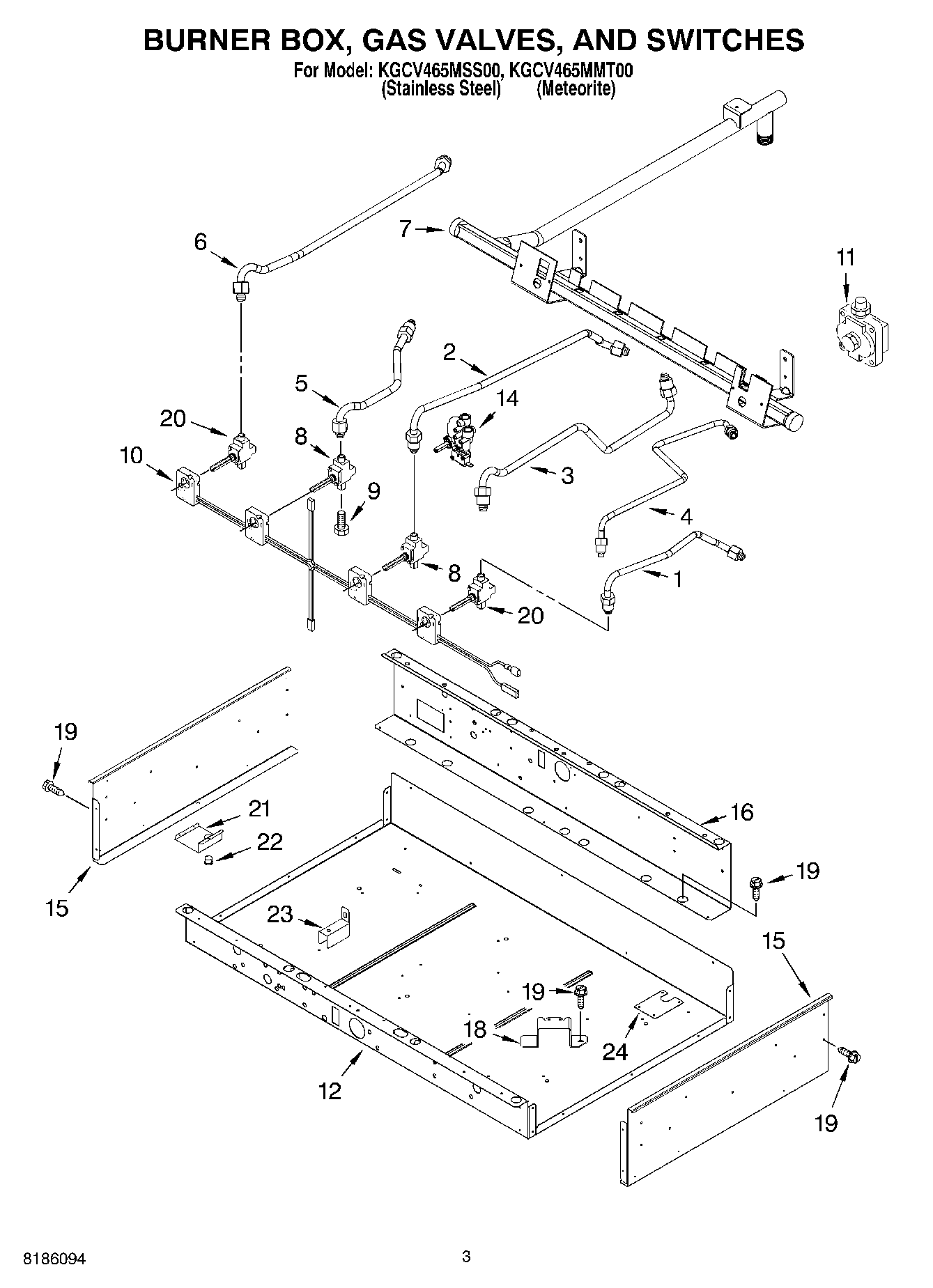

KGCV465MMT00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

KGCV465MMT00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

KGCV465MMT00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1Tubing, Gas Burner – RF
2Tubing, Gas Burner – RR
3Tubing, Gas Burner – Inner
4Tubing, Gas Burner – External
5Tubing, Gas Burner – LF
6Tubing, Gas Burner – LR
7Manifold
8Valve, Burner (Silver)
9Bolt (Gas Valve)
10Burner Switch & Harness Assembly
10WP3188425 Whirlpool Seal Switch
11WP9759091 Whirlpool Regulator
12Burner Box
14Dual Valve, Triple Crown Brnr
15Side, Burner Box (Left Hand)
15Side, Burner Box (Right Hand)
16Support, Rear
18Bracket, Burner
19WP3177991 Whirlpool Screw
20Valve, Burner (Small (1))
21Cover, Shelf
22Bushing, Cover Shelf
23WPL 4449845
24WIRING HARNESS PARTS
24W10392007 Whirlpool Power Cord
24L.P. Orific Spud Pack
244173634 Whirlpool Bushing
24Bushing
24Cover, Panel
24Harness, Wire Ignitor 28“
24W10851604 Whirlpool Conversion Kit
24Harness, Wire Ignitor (42“)
248285402 Whirlpool Oven Grounding Wire
24Harness, Ignitor 15“ (2)
24Miscellaneous
