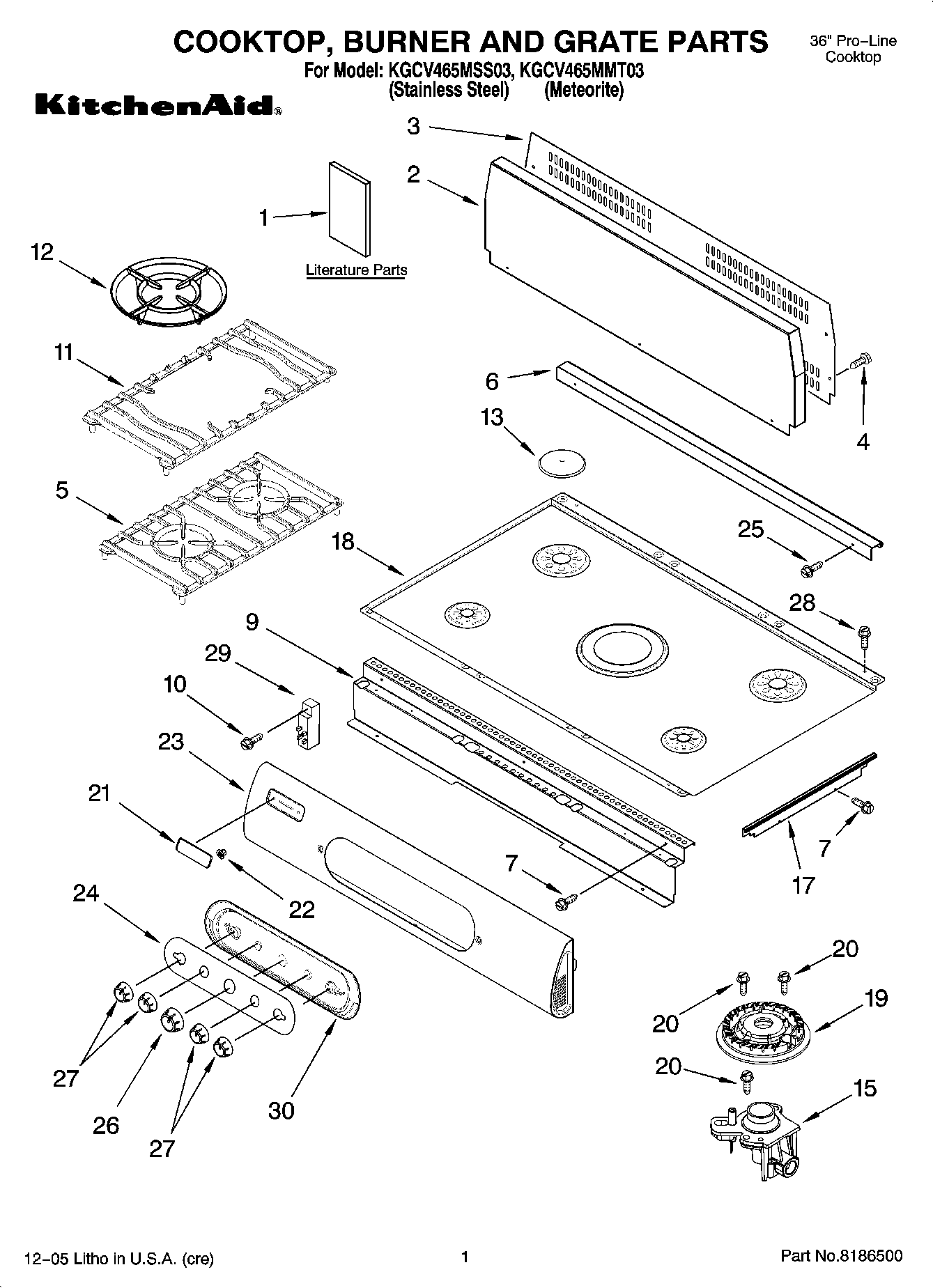

KGCV465MMT03 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	Installation Instructions
1	Wiring Diagram
1	Use & Care Guide
1	Instructions, LP Conversion
2	Backsplash (S.S. Model)
2	Backsplash (Meteorite Model)
3	Support, Backsplash
4	WP3196557 Whirlpool Screw
5	Grate, Side
6	Trim, Island (Meteorite Model)
6	Trim, Island
7	WP3177991 Whirlpool Screw
9	Support, Control Panel
10	WP12990527 Whirlpool Microwave Screw
11	Grate, Center
12	Grate, Ring
13	Cap, Burner ((14K))
13	WP8284669 Whirlpool Burner Cap
15	Burner Base w/Orifice (Small (2))
15	WPW10155786 Whirlpool Surface Burner Orifice Holder
17	Trim, Side Right Hand (S.S. Model)
17	Trim, Side Right Hand (Meteorite Model)
17	Trim, Side Left Hand (Meteorite Model)
17	Trim, Side Left Hand (S.S. Model)
18	Cooktop
19	Burner Head (Turbi)
19	WP4455979 Whirlpool Range Small Burner Head
20	WP3368921 Whirlpool Screw
21	Nameplate
22	WP2004333 Whirlpool Refrigerator Nut
23	Control Frame (S.S. Model)
23	Control Frame (Meteorite Model)
24	Panel, Control (Meteorite Model)
24	Panel, Control (S.S. Model)
25	SCREW
26	Knob, Center Brnr (Meteorite Model)
26	Knob, Center Brnr (S.S. Model)
27	Knob, Burner (4) (S.S. Model)
27	Knob, Burner (4) (Meteorite Model)
28	Screw
29	WPW10110486 Whirlpool Spark Module
30	WPL 8285285
