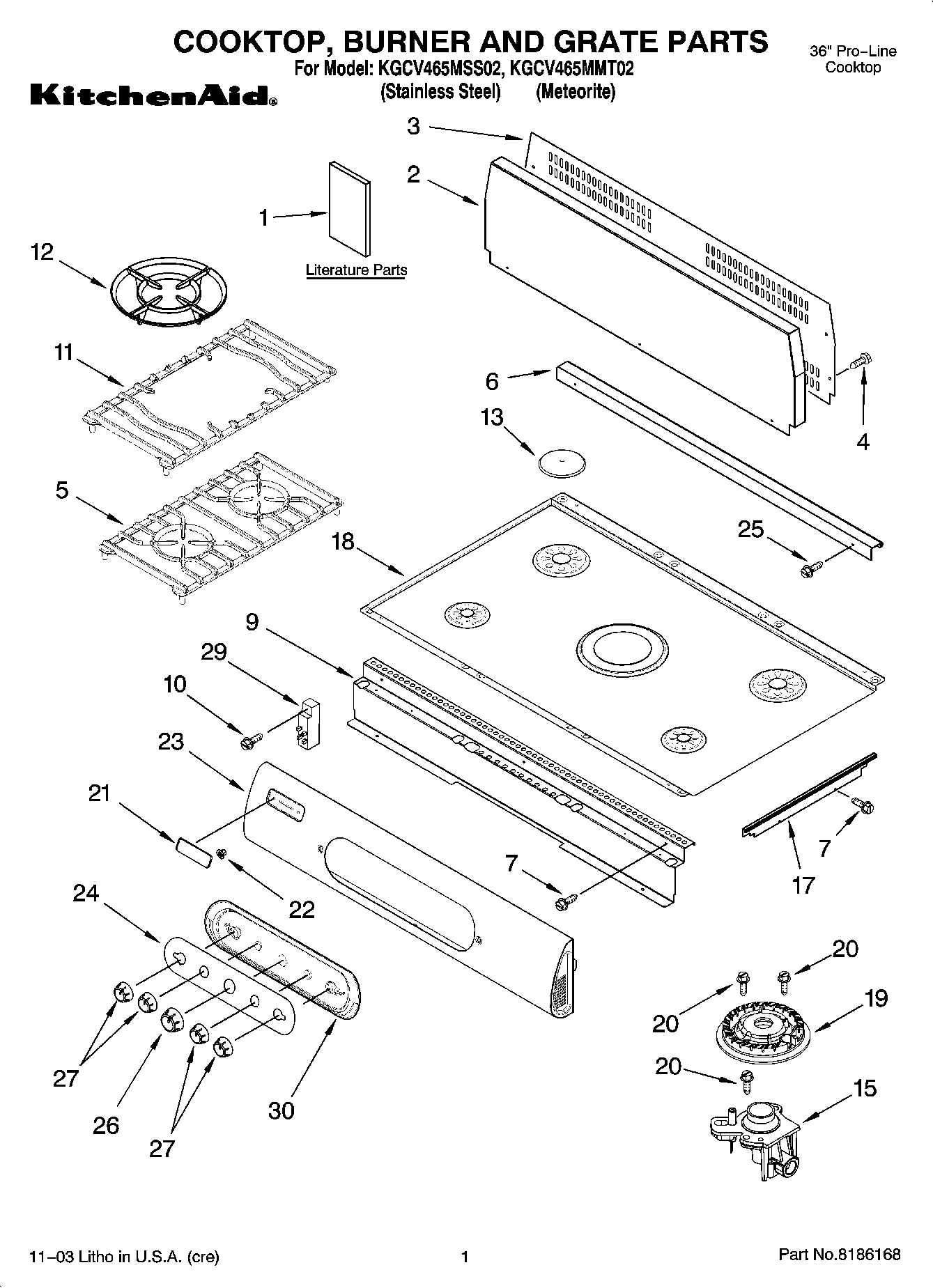

KGCV465MSS02 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	Literature Parts (Installation Instructions)
1	Literature Parts (Instructions, LP Conversion)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Wiring Diagram)
2	Backsplash (Meteorite Model)
2	Backsplash (S.S. Model)
3	Support, Backsplash
4	WP3196557 Whirlpool Screw
5	Grate, Side
6	Trim, Island (Meteorite Model)
6	Trim, Island
7	WP3177991 Whirlpool Screw
9	Support, Control Panel
10	WP12990527 Whirlpool Microwave Screw
11	Grate, Center
12	Grate, Ring
13	Cap, Burner ((14K))
13	WP8284669 Whirlpool Burner Cap
15	Orifice Holder (Includes Orific & Ignitor) (Auxi)
15	WPW10155786 Whirlpool Surface Burner Orifice Holder
17	Trim, Side Right Hand (S.S. Model)
17	Trim, Side Right Hand (Meteorite Model)
17	Trim, Side Left Hand (S.S. Model)
17	Trim, Side Left Hand (Meteorite Model)
18	Screw
18	Cooktop
19	WP4455979 Whirlpool Range Small Burner Head
19	Burner Head (Turbi)
20	WP3368921 Whirlpool Screw
21	Nameplate
22	WP2004333 Whirlpool Refrigerator Nut
23	Control Frame (Meteorite Model)
23	Control Frame (S.S. Model)
24	Panel, Control (Meteorite Model)
24	Panel, Control (S.S. Model)
25	SCREW
26	Knob, Center Brnr (S.S. Model)
26	Knob, Center Brnr (Meteorite Model)
27	Knob, Burner (4) (S.S. Model)
27	Knob, Burner (4) (
29	WPW10110486 Whirlpool Spark Module
30	WPL 8285285
