KGCV465MSS02 02 – BURNER BOX, GAS VALVES, AND SWITCHES

KGCV465MSS02 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

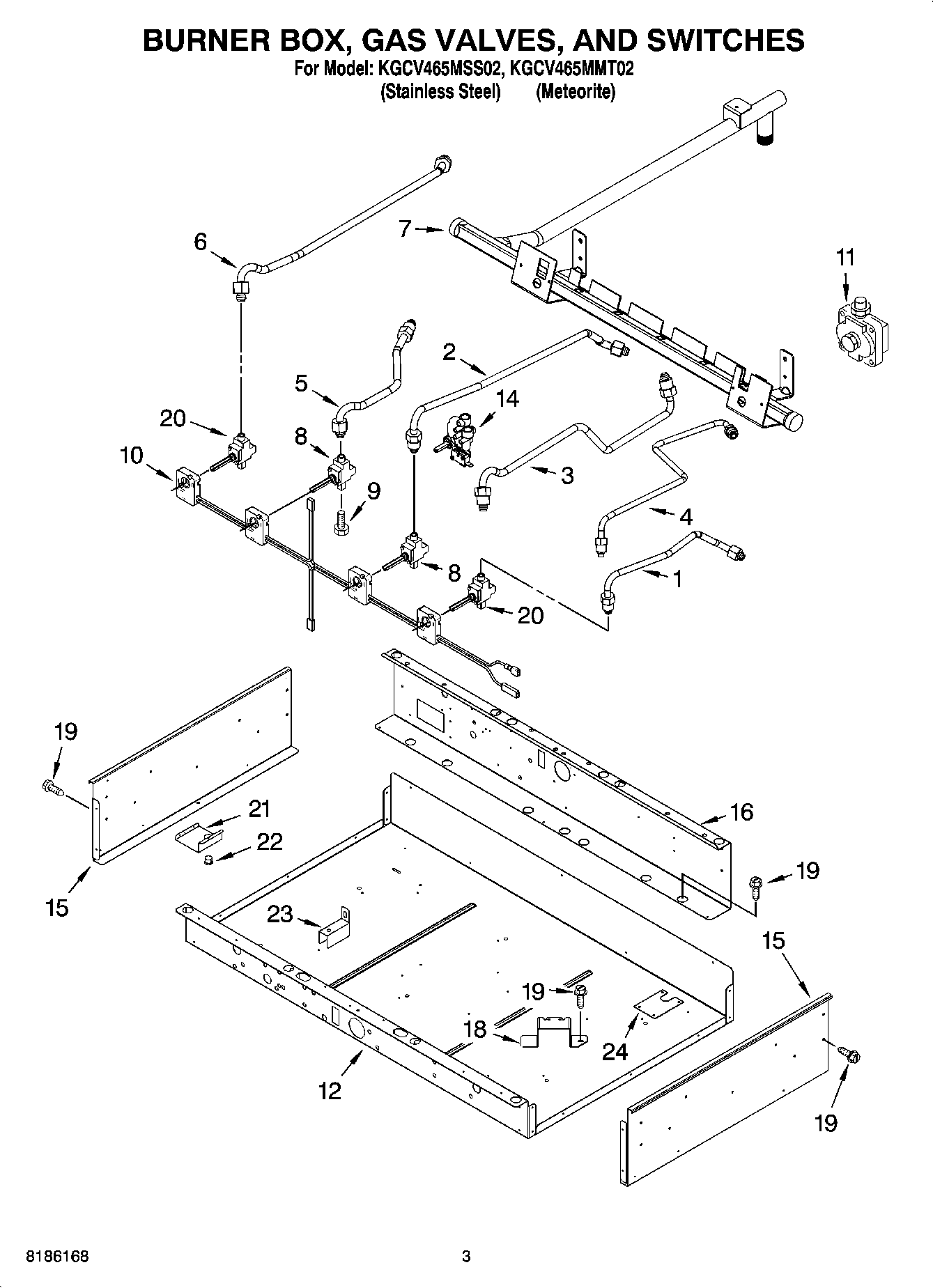

KGCV465MSS02 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1Tubing, Gas Burner – RF
2Tubing, Gas Burner – RR
3Tubing, Gas Burner – Inner
4Tubing, Gas Burner – External
5Tubing, Gas Burner – LF
6Tubing, Gas Burner – LR
7Manifold
8Valve, Burner (Bronze)
9WP3186217 Whirlpool Screw
10WP3188425 Whirlpool Seal Switch
10Burner Switch & Harness Assembly
11WP9759091 Whirlpool Regulator
12Burner Box
14Dual Valve, Triple Crown Brnr
15Side, Burner Box (Left Side)
15Side, Burner Box (Right Side)
16Support, Rear
18Bracket, Burner
19WP3177991 Whirlpool Screw
20WP4456816 Whirlpool Burner Valve
21Cover, Shelf
22Bushing, Cover Shelf
23WPL 4449845
24L.P. Orific Spud Pack
24WIRING HARNESS PARTS
24Cover, Panel
24W10851604 Whirlpool Conversion Kit
24W10392007 Whirlpool Power Cord
248285402 Whirlpool Oven Grounding Wire
244456627 Whirlpool Wire Harness
24Harness, Wire (Ignitor 42“)
24Bushing
244173634 Whirlpool Bushing
24Miscellaneous
