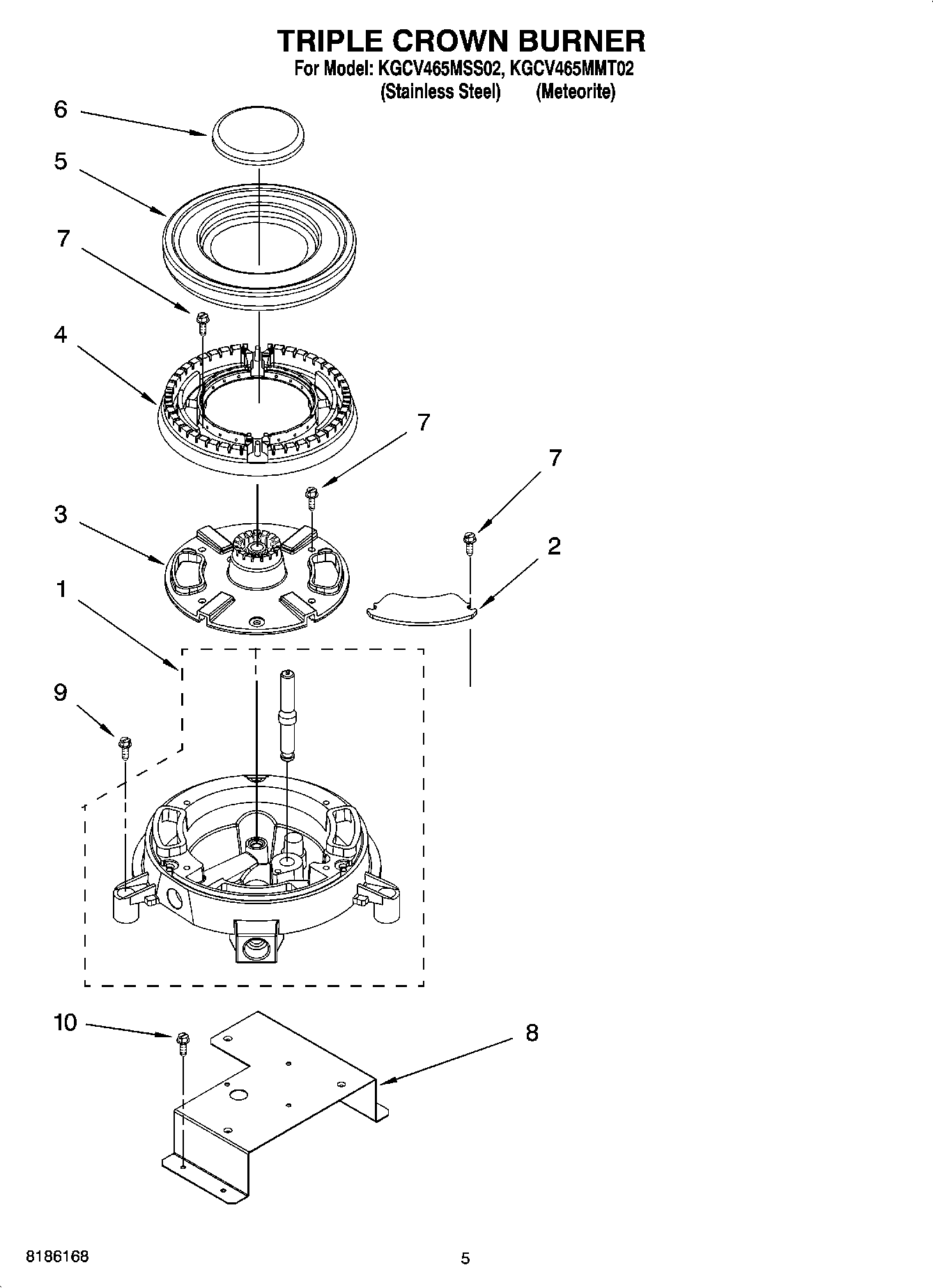

KGCV465MSS02 03 – TRIPLE CROWN BURNER

KGCV465MSS02 03 – TRIPLE CROWN BURNER

Written by

in

KGCV465MSS02 03 – TRIPLE CROWN BURNER

Products

PositionProduct
1Burner Assy., Triple Crown Brnr
28285250 Whirlpool Oven Cover Plate
3WP8285255 Whirlpool Burner Head
4WP8285256 Whirlpool Burner Head
5WP8285258 Whirlpool Top Cap
6Cap, Burner Int.
7WP3400702 Whirlpool Screw
8Bracket, Triple Crown Burner
9WP12990527 Whirlpool Microwave Screw
10WP3177991 Whirlpool Screw
