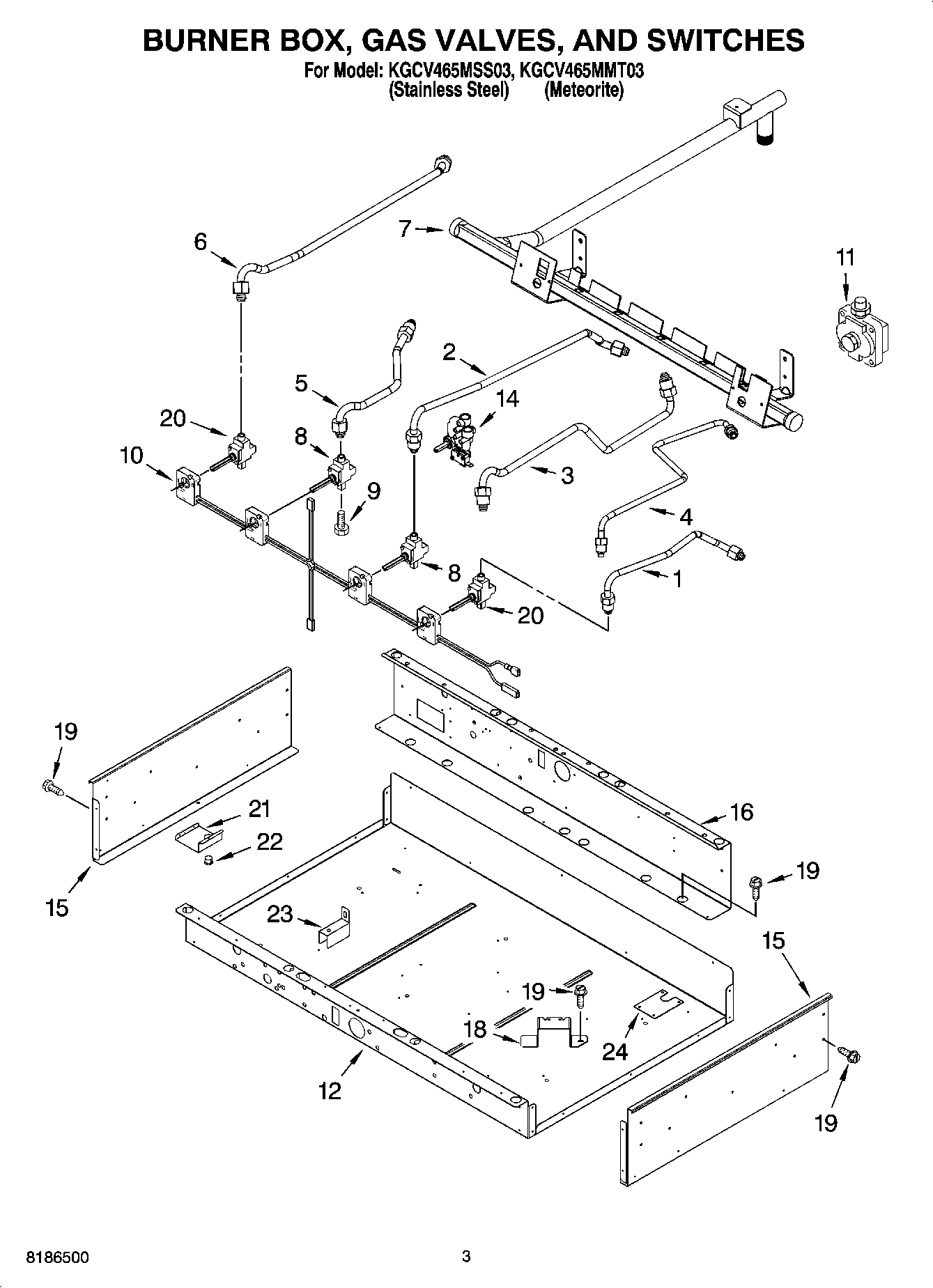

KGCV465MSS03 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1Tubing, Gas Burner – RF
2Tubing, Gas Burner – RR
3Tubing, Gas Burner – Inner
4Tubing, Gas Burner – External
5Tubing, Gas Burner – LF
6Tubing, Gas Burner – LR
7Manifold
8Valve, Burner (Bronze)
9WP3186217 Whirlpool Screw
10Burner Switch & Harness Assembly
10WP3188425 Whirlpool Seal Switch
11WP9759091 Whirlpool Regulator
12Burner Box
14VALVE, TCB
15Side, Burner Box (Right Side)
15Side, Burner Box (Left Side)
16Support, Rear
18Bracket, Burner
19WP3177991 Whirlpool Screw
20WP4456816 Whirlpool Burner Valve
21Cover, Shelf
22Bushing, Cover Shelf
23WPL 4449845
24Cover, Panel
