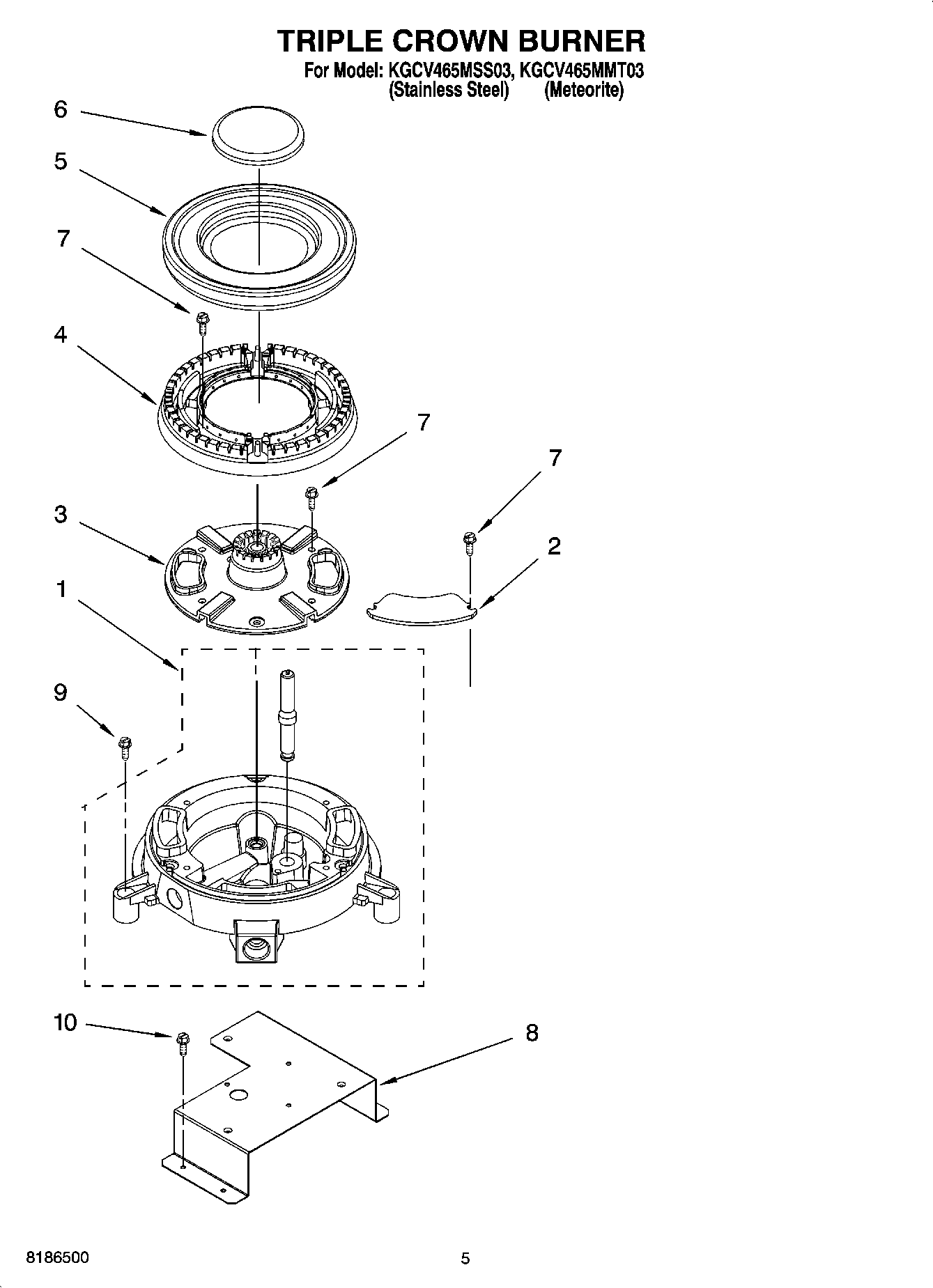

KGCV465MSS03 03 – TRIPLE CROWN BURNER, OPTIONAL PARTS

KGCV465MSS03 03 – TRIPLE CROWN BURNER, OPTIONAL PARTS

Written by

in

KGCV465MSS03 03 – TRIPLE CROWN BURNER, OPTIONAL PARTS

Products

PositionProduct
W10392007 Whirlpool Power Cord
WIRING HARNESS PARTS
L.P. Orific Spud Pack
W10851604 Whirlpool Conversion Kit
8285402 Whirlpool Oven Grounding Wire
4456627 Whirlpool Wire Harness
Miscellaneous
Harness, Wire (Ignitor 42“)
4173634 Whirlpool Bushing
Bushing
Cleaner, Stainless Steel
1Burner Assy., Triple Crown Brnr
28285250 Whirlpool Oven Cover Plate
3WP8285255 Whirlpool Burner Head
4WP8285256 Whirlpool Burner Head
5WP8285258 Whirlpool Top Cap
6Cap, Burner Int.
7WP3400702 Whirlpool Screw
8Bracket, Triple Crown Burner
9WP12990527 Whirlpool Microwave Screw
10WP3177991 Whirlpool Screw
