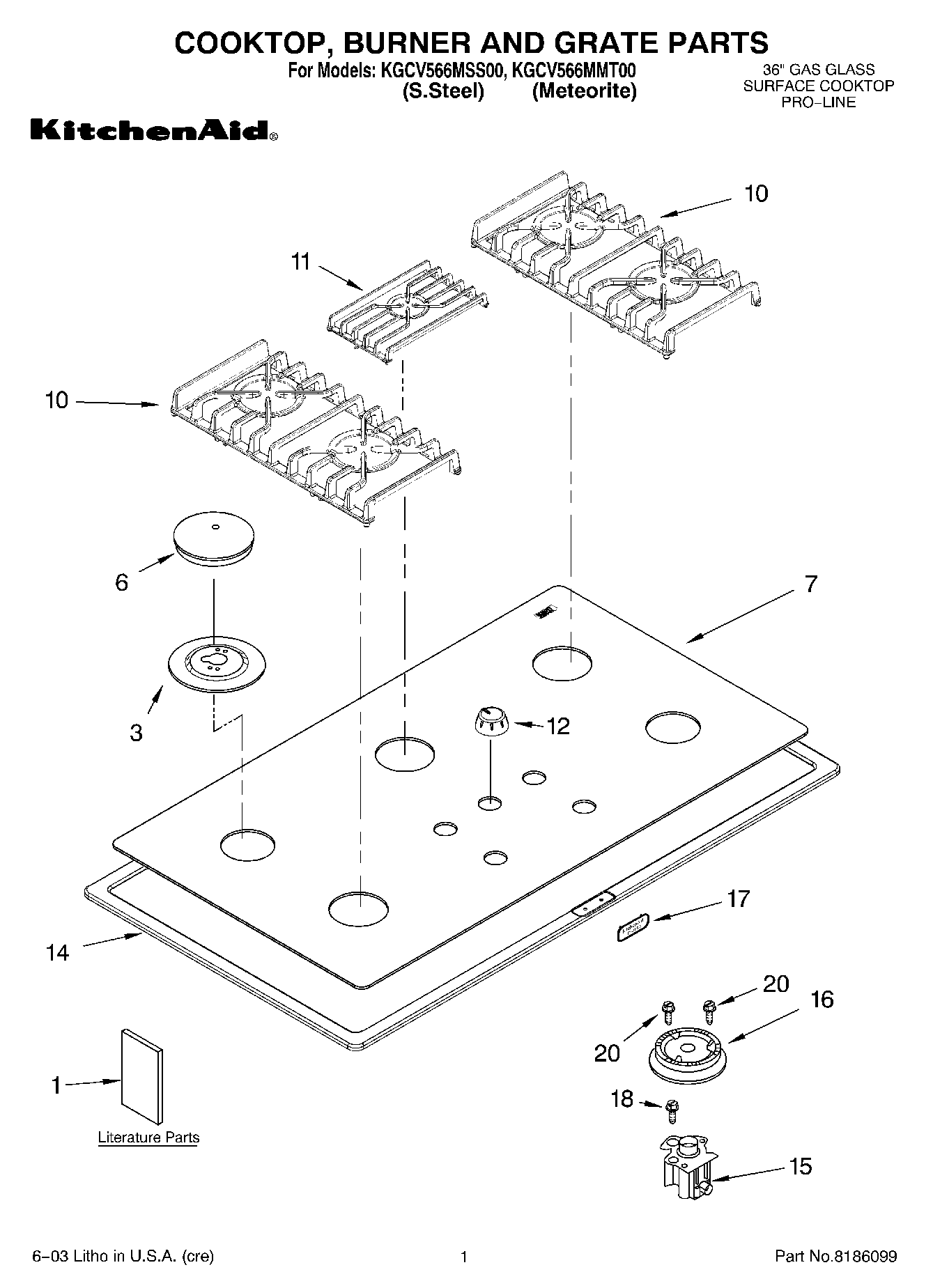

KGCV566MMT00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	Safer Cooking Tips
1	LITERATURE PARTS (L.P. Conversion Instructions)
1	LITERATURE PARTS (Use & Care Guide)
1	LITERATURE PARTS (Wiring Diagram)
1	Literature Parts (Installation Instructions)
3	Bezel, Bu
3	(Bezel, Burner (Black)) (6K RF-LR)
3	(Bezel, Burner (Black)) (14K LF)
6	WP8284669 Whirlpool Burner Cap
6	Cap, Burner ((14K))
6	WP4456536 Whirlpool Burner Cap
7	Cooktop Glass
10	Grate, Side (Brnr)
11	Grate, Cntr (Brnr)
12	Knob, Control (5) (Meteorite)
12	Knob, Control (5) (Euro Silver)
14	Trim, Glass (Meteorite)
14	Trim, Glass (Brushed S.Steel)
15	Holder, Orifice (Includes 13 & 14) (RF 6K)
15	814513 Whirlpool Top Burner
15	Holder, Orifice (Includes 13 & 14) (LF 12K)
15	Orifice Holder (Turbi)
16	Burner Head (Turbi)
16	WP4455981 Whirlpool Burner Head
16	WP4455979 Whirlpool Range Small Burner Head
17	NAMEPLATE
18	WP4449809 Whirlpool Screw
20	WP3368921 Whirlpool Screw
