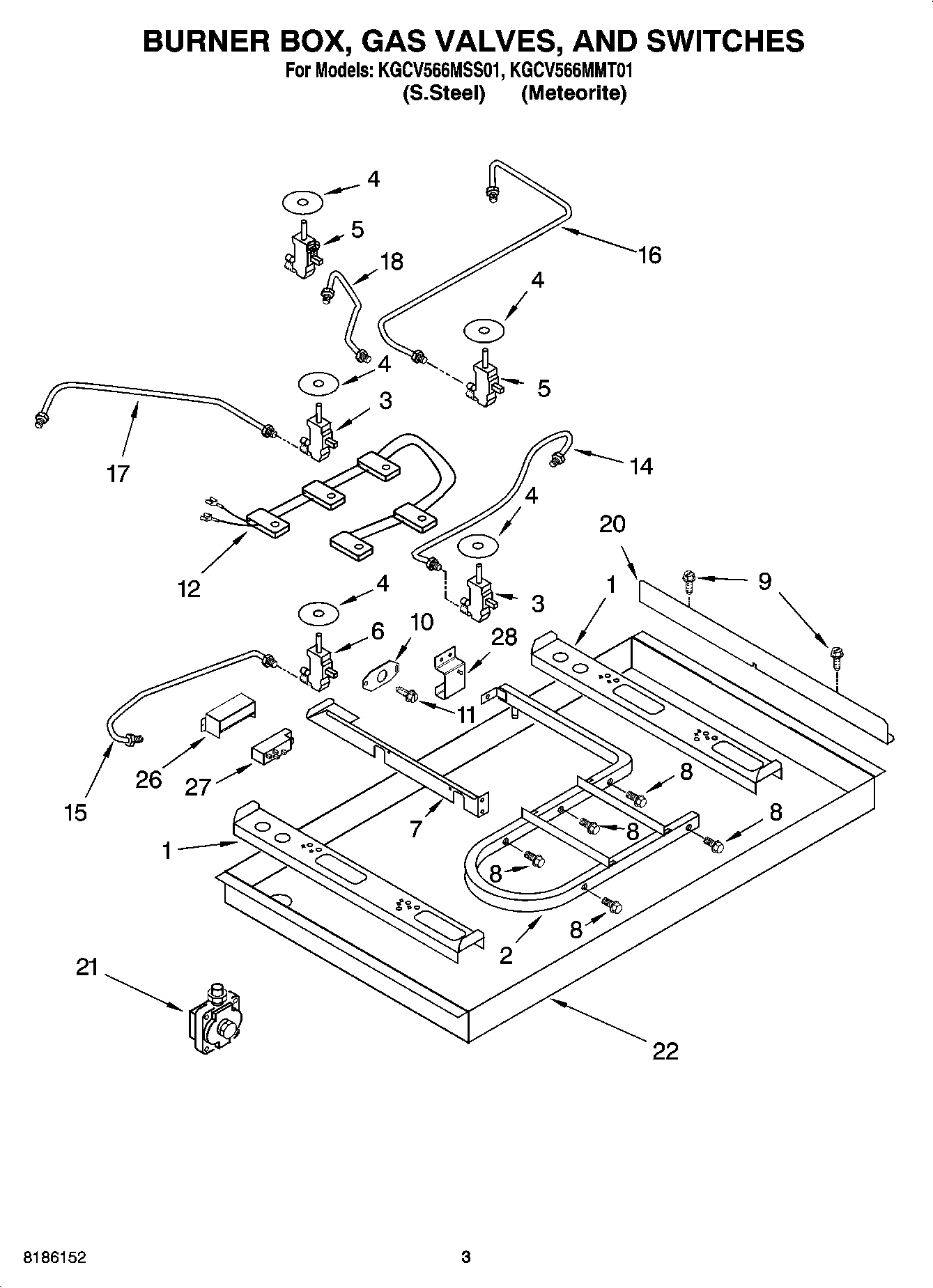

KGCV566MMT01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

KGCV566MMT01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

KGCV566MMT01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1W10203756 Whirlpool Support
2Pipe, Manifold
3Valve, Burner (Small (1))
4WP3188425 Whirlpool Seal Switch
5Valve, Burner (Large (3))
6Valve, Burner (Silver)
7Rail, Center
8Bolt (Gas Valve)
103192491 Whirlpool Support Bracket
11W10491985 Whirlpool Screw
12Harness & Switches
14Tubing, Gas Burner (RF)
15Tubing, Gas Burner (LF)
16Tubing, Gas Burner (RR)
17Tubing, Gas Burner (LR)
18Tubing, Gas Burner (CR)
203191462 Whirlpool Oven Heat Shield
21Regulator, Pressure
22Burner Box
26Heat Shield, Spark Module
27WPW10110486 Whirlpool Spark Module
28WP3192741 Whirlpool LP Conversion Kit
28FOLLOWING PARTS NOT ILLUSTRATED
28Miscellaneous
28Bracket, Mounting
28Seal, Foam-Cooktop
288186533 Whirlpool Hardware
28Nut, Tinnerman (2)
28W10392007 Whirlpool Power Cord
284173634 Whirlpool Bushing
28WP3177991 Whirlpool Screw
284456627 Whirlpool Wire Harness
284456626 Whirlpool Wire
28Hardware Kit (Mounting)
288285402 Whirlpool Oven Grounding Wire
28WIRING HARNESS PARTS
