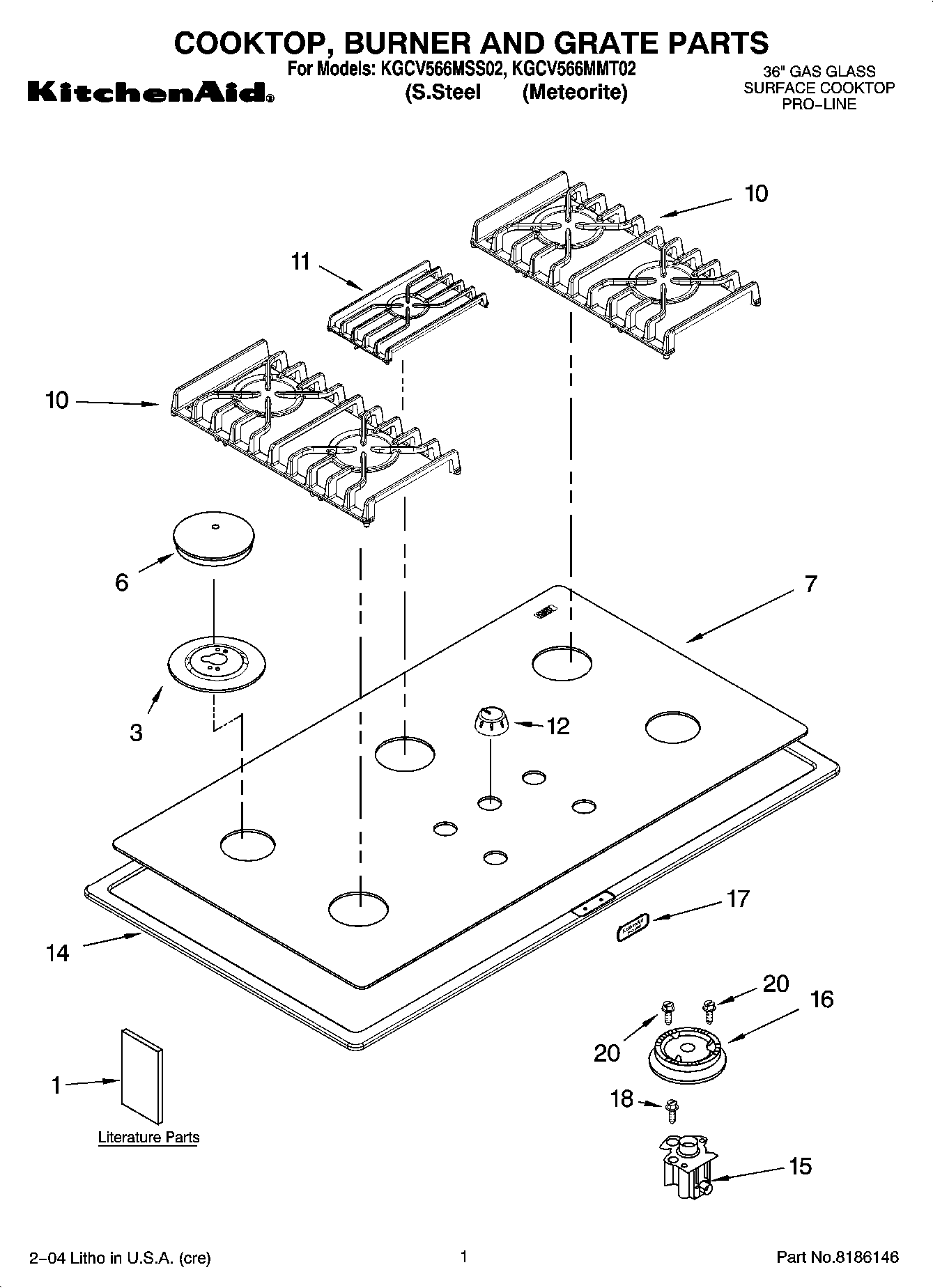

KGCV566MMT02 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	Safer Cooking Tips
1	LITERATURE PARTS (L.P. Conversion Instructions)
1	LITERATURE PARTS (Use & Care Guide)
1	LITERATURE PARTS (Wiring Diagram)
1	Literature Parts (Installation Instructions)
3	Bezel, Bu
3	(Bezel, Burner (Black)) (6K RF-LR)
3	(Bezel, Burner (Black)) (14K LF)
6	Cap, Burner ((14K))
6	WP8284669 Whirlpool Burner Cap
6	WP4456536 Whirlpool Burner Cap
7	Cooktop Glass
10	Grate, Side (Brnr)
11	Grate, Cntr (Brnr)
12	Knob, Control (5) (Meteorite)
12	Knob, Control (5) (Euro Silver)
14	Trim, Glass (Meteorite)
14	Trim, Glass (Brushed S.Steel)
15	Holder, Orifice (Semi-Rapid)
15	WPW10155786 Whirlpool Surface Burner Orifice Holder
15	WPW10128448 Whirlpool Igniter and Orifice Holder
15	WPW10155785 Whirlpool Orifice Holder
16	Burner Head (Turbi)
16	WP4455979 Whirlpool Range Small Burner Head
16	WP4455981 Whirlpool Burner Head
17	NAMEPLATE
18	WP4449809 Whirlpool Screw
20	WP3368921 Whirlpool Screw
