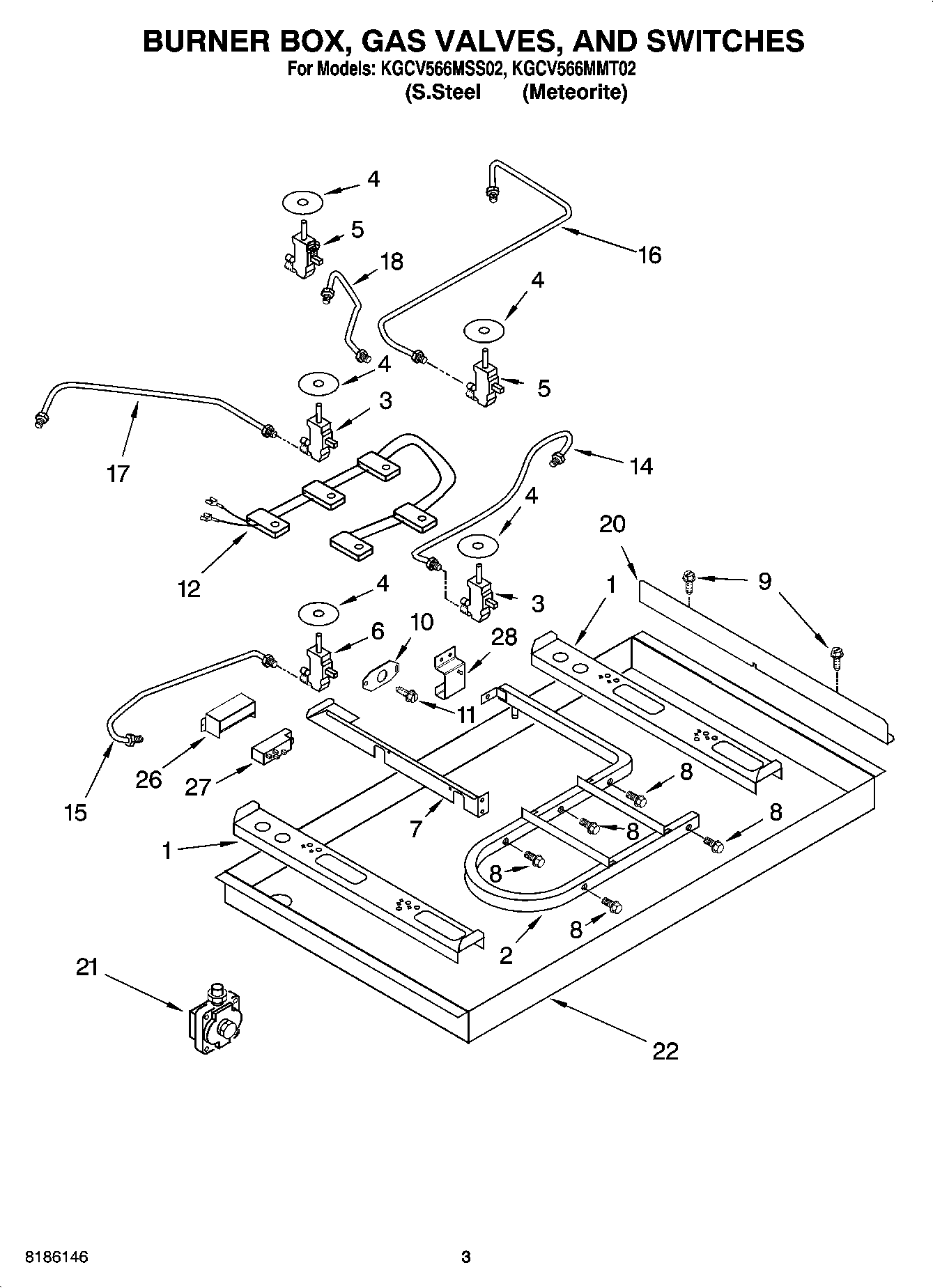

KGCV566MMT02 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

Products

Position	Product
1	WP489174 Whirlpool Refrigerator Screw
1	W10203756 Whirlpool Support
2	Pipe, Manifold
3	WP4456816 Whirlpool Burner Valve
4	WP3188425 Whirlpool Seal Switch
5	WP4456817 Whirlpool Burner Valve
6	Valve, Burner (Bronze)
7	Rail, Center
8	WP3186217 Whirlpool Screw
10	3192491 Whirlpool Support Bracket
11	W10491985 Whirlpool Screw
12	WP4456901 Whirlpool Wire Harness
14	Tubing, Gas Burner (RF)
15	Tubing, Gas Burner (LF)
16	Tubing, Gas Burner (RR)
17	Tubing, Gas Burner (LR)
18	Tubing, Gas Burner (CR)
20	3191462 Whirlpool Oven Heat Shield
21	Regulator, Pressure
22	Burner Box
26	Heat Shield, Spark Module
27	WP12990527 Whirlpool Microwave Screw
27	WPW10110486 Whirlpool Spark Module
28	Hardware Kit (Mounting)
28	8186533 Whirlpool Hardware
28	W10392007 Whirlpool Power Cord
28	4173634 Whirlpool Bushing
28	WP3177991 Whirlpool Screw
28	WIRING HARNESS PARTS
28	Miscellaneous
28	FOLLOWING PARTS NOT ILLUSTRATED
28	Bracket, Mounting
28	Seal, Foam-Cooktop
28	4456627 Whirlpool Wire Harness
28	4456626 Whirlpool Wire
28	8285402 Whirlpool Oven Grounding Wire
28	WP3192741 Whirlpool LP Conversion Kit
