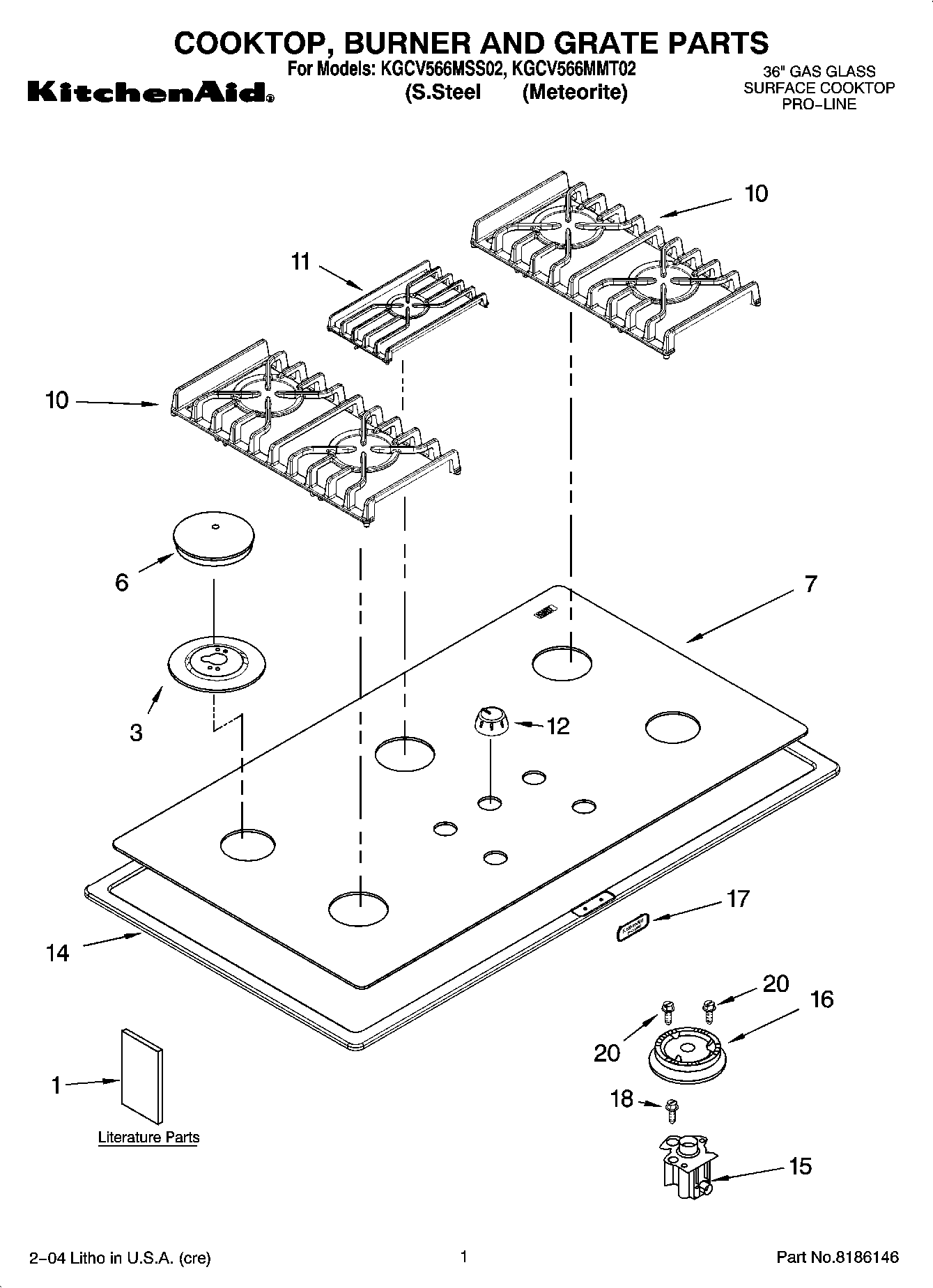

KGCV566MSS02 01 – COOKTOP, BURNER AND GRATE PARTS

KGCV566MSS02 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KGCV566MSS02 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1Safer Cooking Tips
1LITERATURE PARTS (L.P. Conversion Instructions)
1LITERATURE PARTS (Use & Care Guide)
1LITERATURE PARTS (Wiring Diagram)
1Literature Parts (Installation Instructions)
3Bezel, Bu
3(Bezel, Burner (Black)) (6K RF-LR)
3(Bezel, Burner (Black)) (14K LF)
6Cap, Burner ((14K))
6WP8284669 Whirlpool Burner Cap
6WP4456536 Whirlpool Burner Cap
7Cooktop Glass
10Grate, Side (Brnr)
11Grate, Cntr (Brnr)
12Knob, Control (5) (Meteorite)
12Knob, Control (5) (Euro Silver)
14Trim, Glass (Meteorite)
14Trim, Glass (Brushed S.Steel)
15Holder, Orifice (Semi-Rapid)
15WPW10155786 Whirlpool Surface Burner Orifice Holder
15WPW10128448 Whirlpool Igniter and Orifice Holder
15WPW10155785 Whirlpool Orifice Holder
16Burner Head (Turbi)
16WP4455979 Whirlpool Range Small Burner Head
16WP4455981 Whirlpool Burner Head
17NAMEPLATE
18WP4449809 Whirlpool Screw
20WP3368921 Whirlpool Screw
