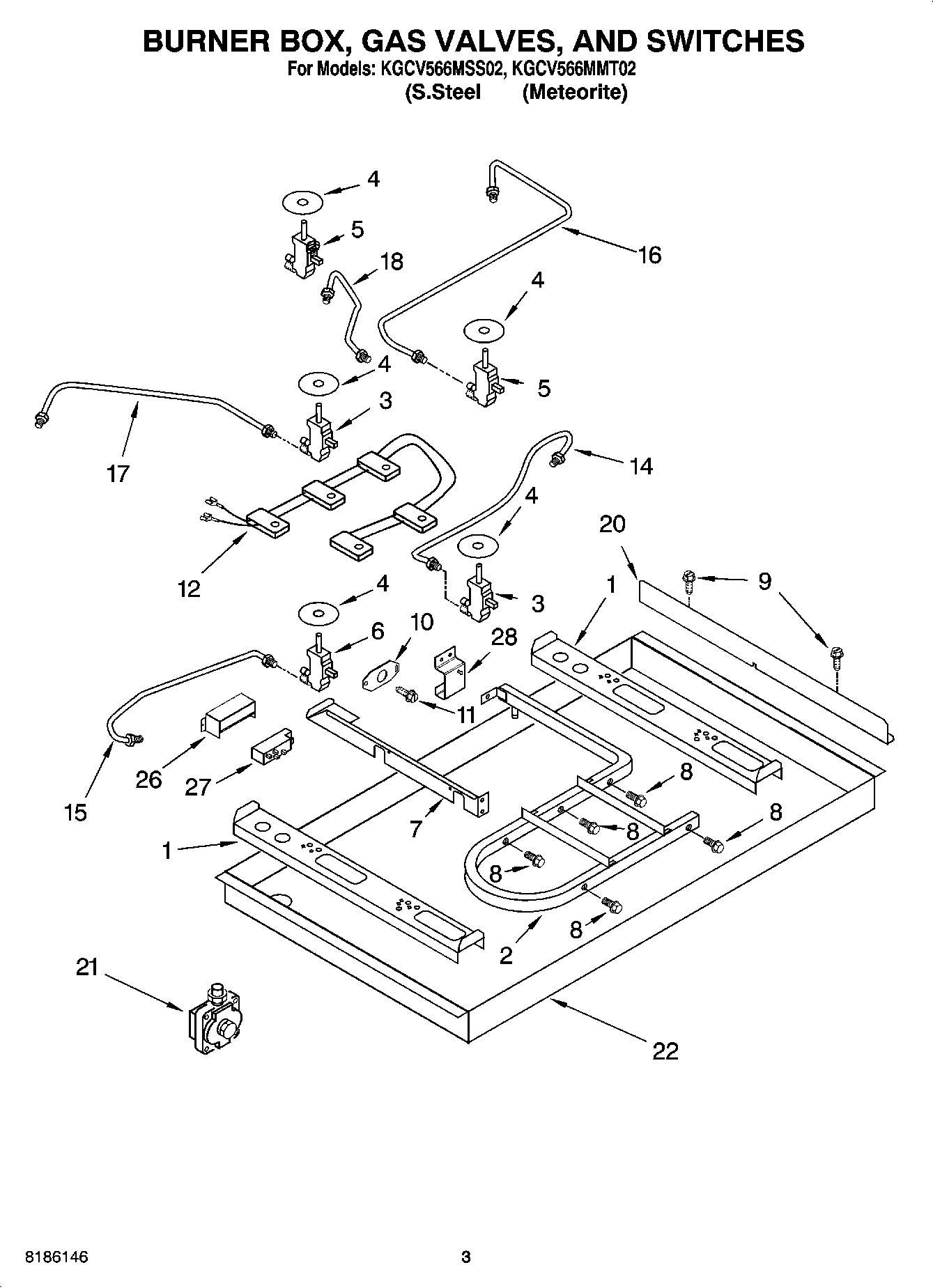

KGCV566MSS02 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1WP489174 Whirlpool Refrigerator Screw
1W10203756 Whirlpool Support
2Pipe, Manifold
3WP4456816 Whirlpool Burner Valve
4WP3188425 Whirlpool Seal Switch
5WP4456817 Whirlpool Burner Valve
6Valve, Burner (Bronze)
7Rail, Center
8WP3186217 Whirlpool Screw
103192491 Whirlpool Support Bracket
11W10491985 Whirlpool Screw
12WP4456901 Whirlpool Wire Harness
14Tubing, Gas Burner (RF)
15Tubing, Gas Burner (LF)
16Tubing, Gas Burner (RR)
17Tubing, Gas Burner (LR)
18Tubing, Gas Burner (CR)
203191462 Whirlpool Oven Heat Shield
21Regulator, Pressure
22Burner Box
26Heat Shield, Spark Module
27WPW10110486 Whirlpool Spark Module
27WP12990527 Whirlpool Microwave Screw
28FOLLOWING PARTS NOT ILLUSTRATED
28Miscellaneous
28Bracket, Mounting
28Seal, Foam-Cooktop
288186533 Whirlpool Hardware
28W10392007 Whirlpool Power Cord
284173634 Whirlpool Bushing
28WP3177991 Whirlpool Screw
284456627 Whirlpool Wire Harness
28WP3192741 Whirlpool LP Conversion Kit
284456626 Whirlpool Wire
28Hardware Kit (Mounting)
288285402 Whirlpool Oven Grounding Wire
28WIRING HARNESS PARTS
