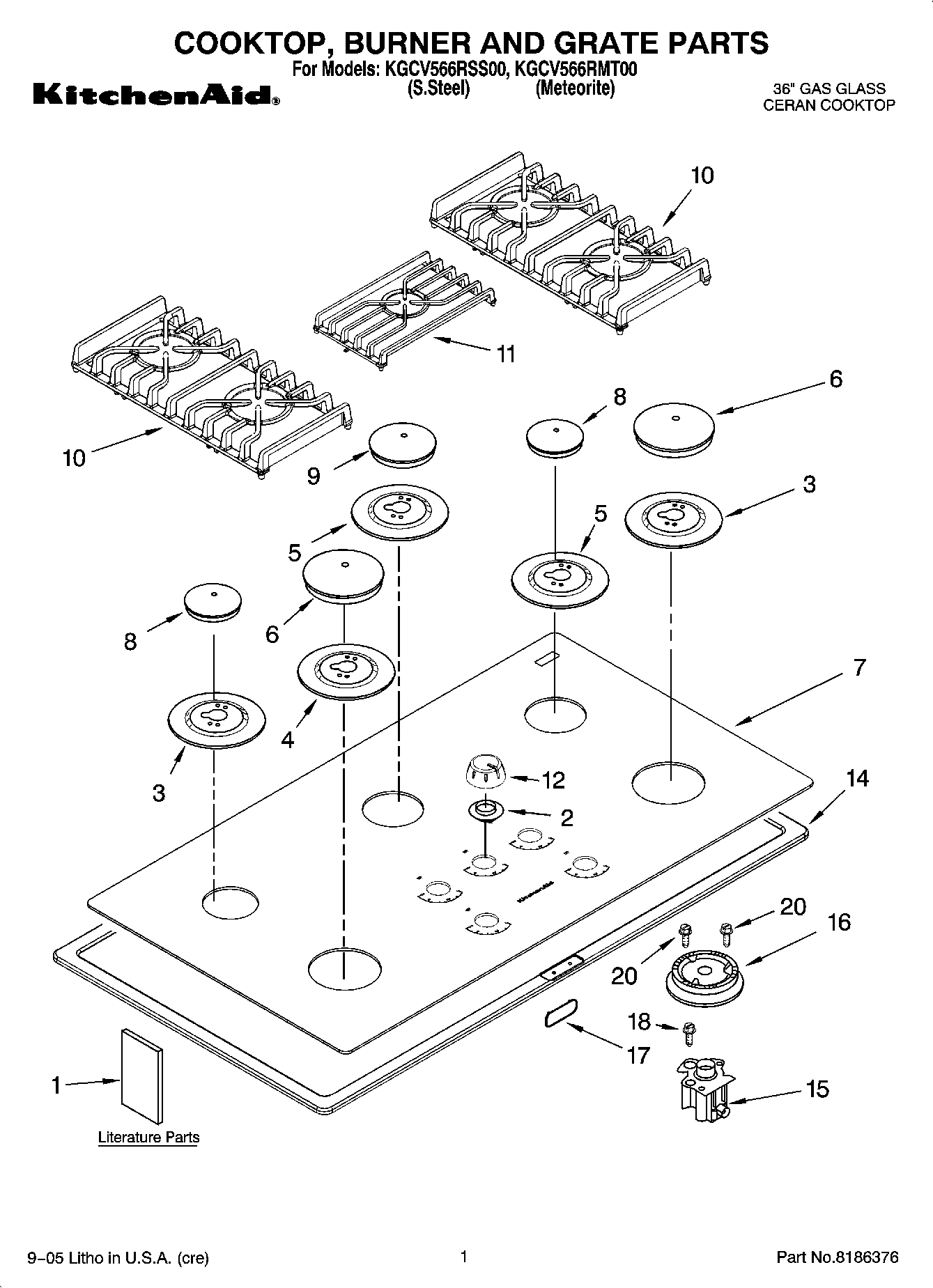

KGCV566RSS00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1Wiring Diagram
1Safe Cooking Tips
1Safe Cooking Tips (French)
1Use & Care Guide
1LP Conversion Instructions
1Installation Instructions
2W10854242 Whirlpool Grommet
2WP3180081 Whirlpool Grommet
2Grommet, Glass (Biscuit)
39753602BL Whirlpool Bezel
48285779BL Whirlpool Bezel Assembly
5Bezel, Cooktop (RR) (Center) (Black)
6WP8286156CB Whirlpool Cooktop Burner Cap
7Cooktop Glass
8WP8286153CB Whirlpool Burner Cap
9WP8286154CB Whirlpool Burner Cap
10Grate, Burner
11Grate, Center
12Knob, Control (4) (Meteorite)
12Knob, Control (4) (S.Steel)
14Trim, Glass (Brushed S.Steel)
14Trim, Glass (Meteorite)
15WP8286177 Whirlpool Orifice Holder
15WPW10128450 Whirlpool Orifice Holder
15WPW10128448 Whirlpool Igniter and Orifice Holder
16WPW10406878 Whirlpool Burner Base (16K)
16WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
16WPW10406243 Whirlpool Burner Head Auxiliary 6K
17NAMEPLATE
18WP4449809 Whirlpool Screw
20WP3368921 Whirlpool Screw
