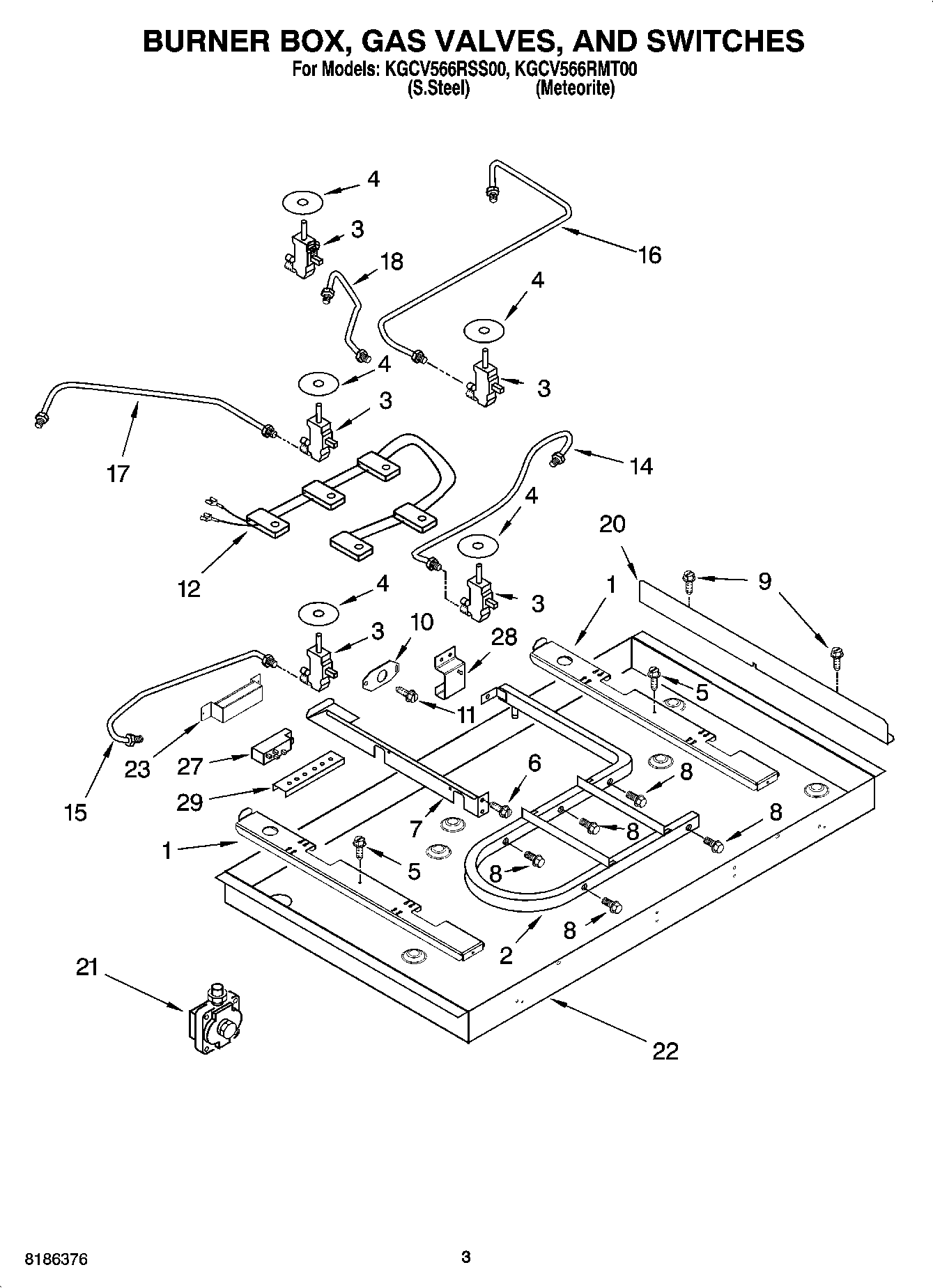

KGCV566RSS00 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS

Products

Position	Product
	WIRING HARNESS PARTS
	Miscellaneous
	Seal, Foam-Cooktop
	FOLLOWING PARTS NOT ILLUSTRATED
	Hardware Kit (Mounting)
	4456626 Whirlpool Wire
	8285402 Whirlpool Oven Grounding Wire
	WP8286320 Whirlpool Spud Orifice
	4456627 Whirlpool Wire Harness
	4173634 Whirlpool Bushing
	W10392007 Whirlpool Power Cord
	8186533 Whirlpool Hardware
	WP3177991 Whirlpool Screw
	Nut, Tinnerman (2)
	Cleaner (Stainless Steel)
1	8285796 Whirlpool Support Assembly
2	Pipe, Manifold
3	Valve, Gas Burner (White)
3	WP4456817 Whirlpool Burner Valve
3	8286561 Whirlpool Oven Burner Valve
4	WP3188425 Whirlpool Seal Switch
5	WP489174 Whirlpool Refrigerator Screw
6	Screw
7	Rail, Center
8	WP3186217 Whirlpool Screw
10	3192491 Whirlpool Support Bracket
11	W10491985 Whirlpool Screw
12	WP4456901 Whirlpool Wire Harness
14	8285768 Whirlpool Oven Gas Tubing
15	8285766 Whirlpool Oven Gas Tubing
16	8285767 Whirlpool Oven Gas Tubing
17	8285769 Whirlpool Gas Tubing
18	8285770 Whirlpool Gas Tubing Assembly
20	3191462 Whirlpool Oven Heat Shield
21	Regulator, Pressure
22	8285773 Whirlpool Burner Box
22	WP3196557 Whirlpool Screw
23	8285789 Whirlpool Heat Shield
27	WP12990527 Whirlpool Microwave Screw
27	WPW10110486 Whirlpool Spark Module
28	Bracket, Mounting Orifice
29	WP3400093 Whirlpool Screw
