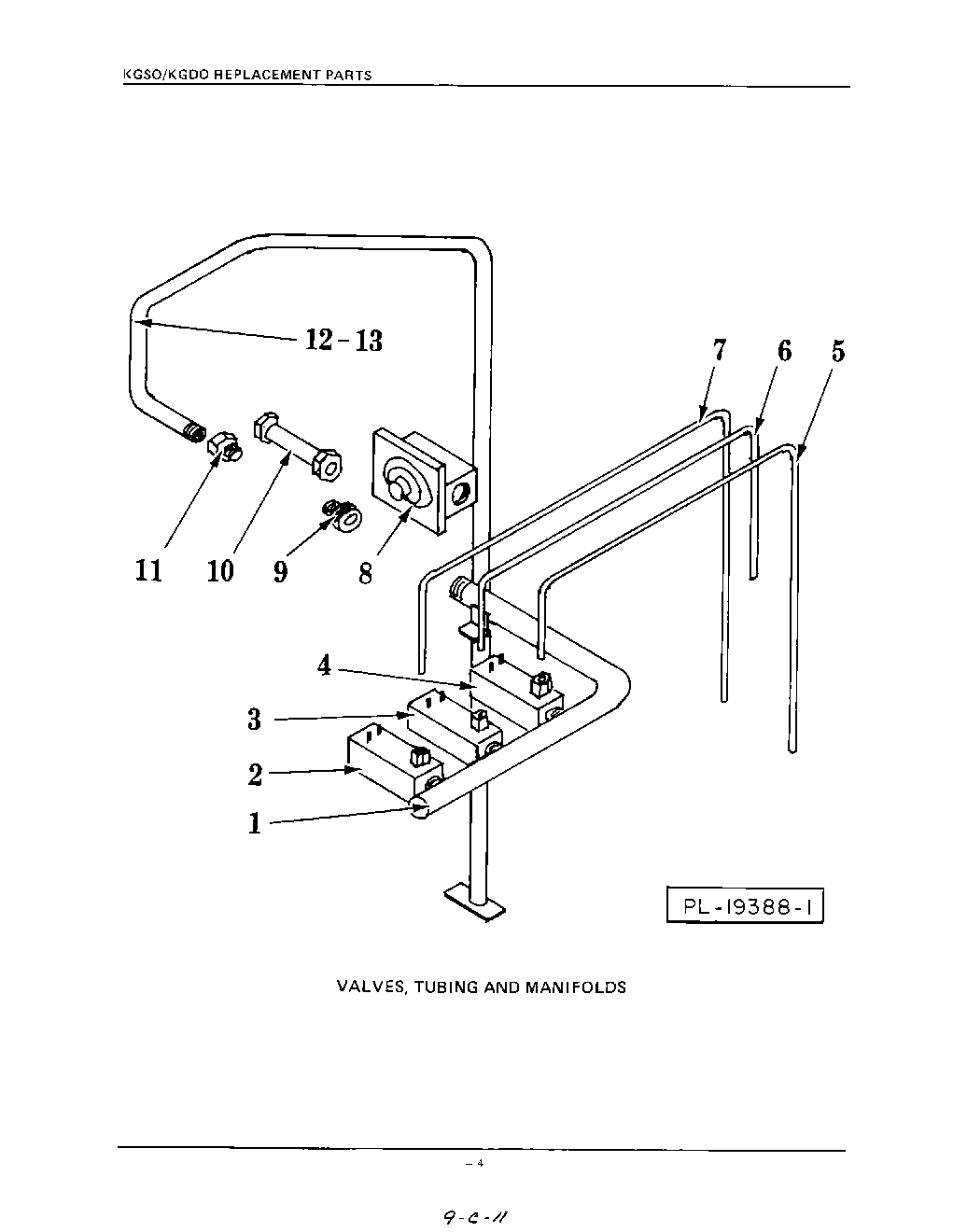

KGDO245EE 03 – VALVES TUBING AND MANIFOLDS

Products

PositionProduct
1Valve Manifold
2Valve, Bake-Single or Upper Oven
3Valve, Broil
4Valve, Bake-Lower Oven KGDO-245
5Tube, L/O Bake Valve
6Tubing, Broil Valve
7Tubing, Bake Valve
8Pressure Regulator
9Reducing Nipple
10Regulator Tube
11Connector
12Inlet Manifold KGSO-145
13Inlet Manifold KGDO-245
