KGDO245EE 04 – CONTROL COMPARTMENT

KGDO245EE 04 – CONTROL COMPARTMENT

Written by

in

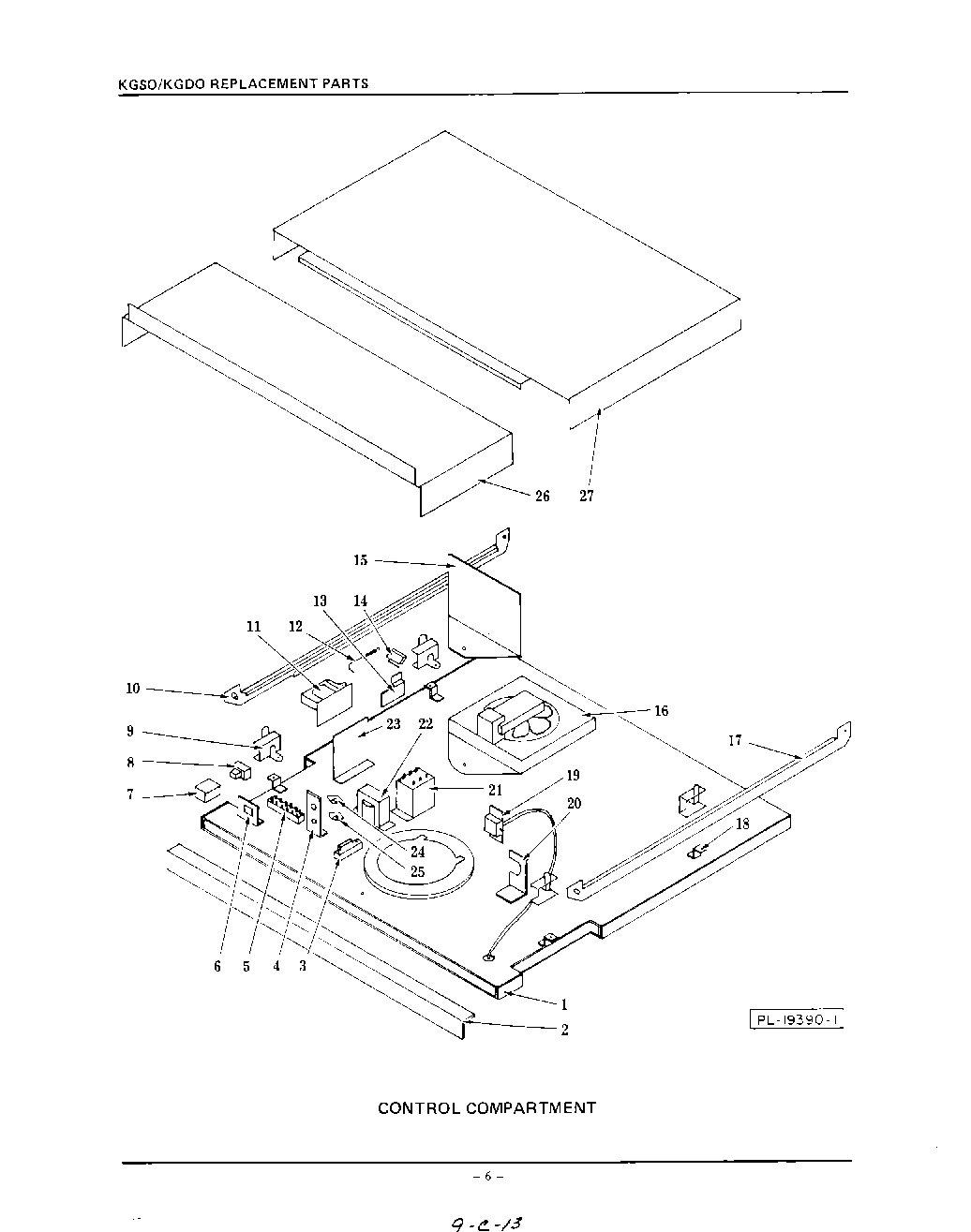

KGDO245EE 04 – CONTROL COMPARTMENT

Products

PositionProduct
1Sandwich Panel Assy.
2Panel Stiffener Angle
3Resistor Block
4Fan Switch Mounting Bracket
5Terminal Block, Distribution
6Disconnect Plug Bracket
7Disconnect Block – Cap
8Disconnect Block – Plug
9Arm Guide
10Extension Arm, L.H.
11Solenoid
12WPL 305127
13Solenoid Stop
14Damper Safety Switch
15Wire Shield
16Blower Assy
17Extension Arm, R.H.
18Extension Bracket
19K.W Thermostat
20K.W T/Stat Mounting Bracket
21Relay, Meat Probe KESO-145/175, KEDO-245/275
22Transformer, Meat Probe KESO-145/175, KEDO-245/275
23Solenoid Mounting Bracket
24High Limit Fan Switch
25Fan Switch
26Cabinet Top, Front
27Cabinet Top, Rear
