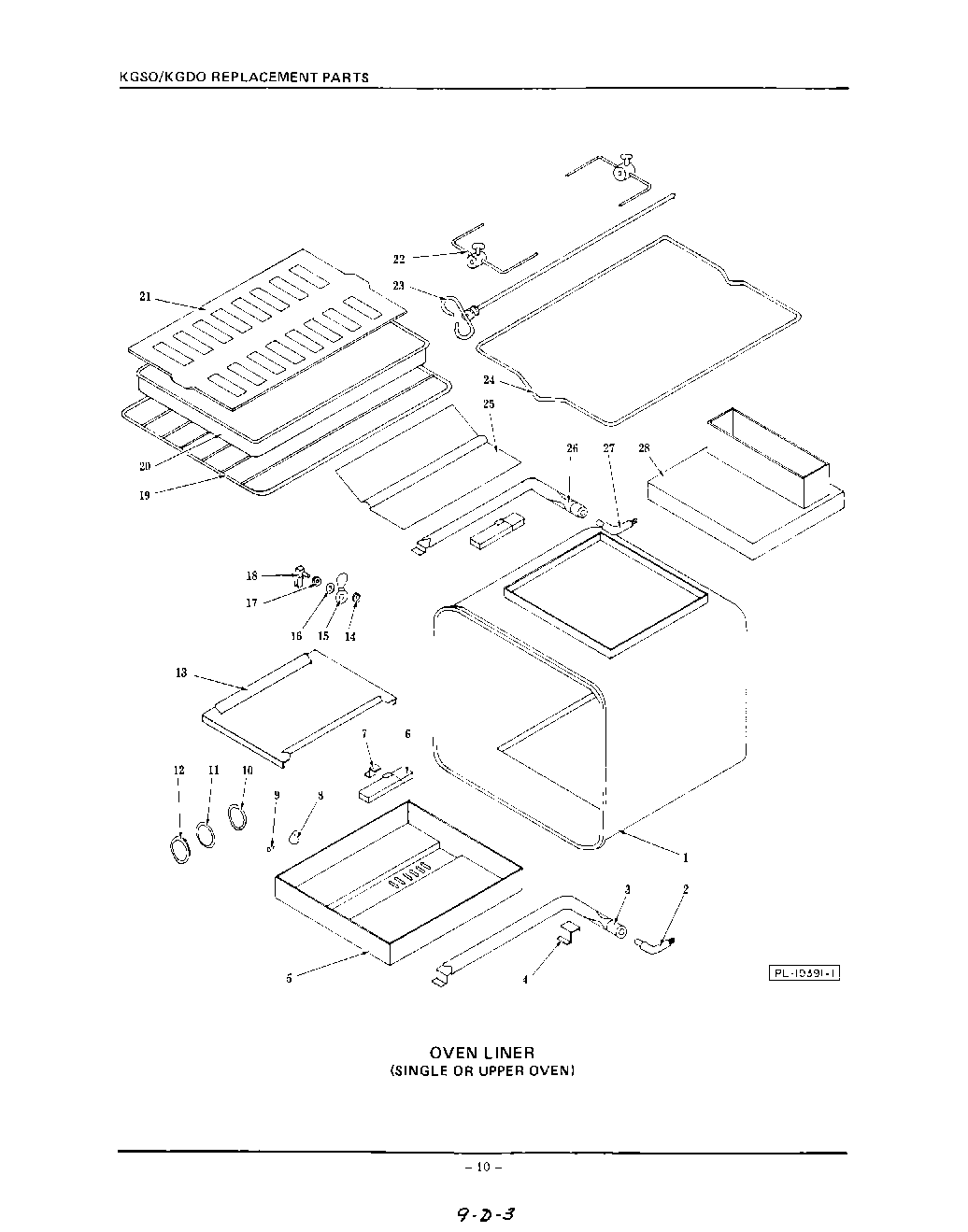

KGDO245EE 07 – SINGLE OR UPPER OVENadmin2025-04-26T11:17:58+00:00KGDO245EE 07 – SINGLE OR UPPER OVEN
Products
| Position | Product |
|---|
| 1 | Oven Liner |
| 2 | Orifice Fitting, Bake |
| 3 | Burner, Bake |
| 4 | Burner Clamp |
| 5 | Burner Box |
| 6 | Ignitor |
| 7 | Bracket, Ignitor Mounting |
| 8 | Rotisserie Cover KESO-145/175, KEDO-245/275 |
| 9 | Shoulder Screw KESO-145/175, KEDO-245/275 |
| 10 | Light Lens Gasket |
| 11 | Light Lens |
| 12 | Light Lens Retainer |
| 13 | Oven Bottom |
| 14 | Nut, Meat Probe KESO-145/175, KEDO-245/275 |
| 15 | Probe Jack Cover KESO-145/175, KEDO-245/275 |
| 16 | Gasket |
| 17 | Nut, Hex Jam KESO-145/175, KEDO-245/275 |
| 18 | Meat Probe Jack KESO-145/175, KEDO-245/275 |
| 19 | Oven Rack |
| 20 | Broiler Pan |
| 21 | Broiler Pan Grid |
| 22 | Rotisserie Skewer KESO-14 |
| 23 | Rotisserie Spear |
| 24 | Rotisserie Rack |
| 25 | Broil Baffle |
| 26 | Burner, Broiler |
| 27 | Orifice Fitting, Broil |
| 28 | Oven Liner Top |
