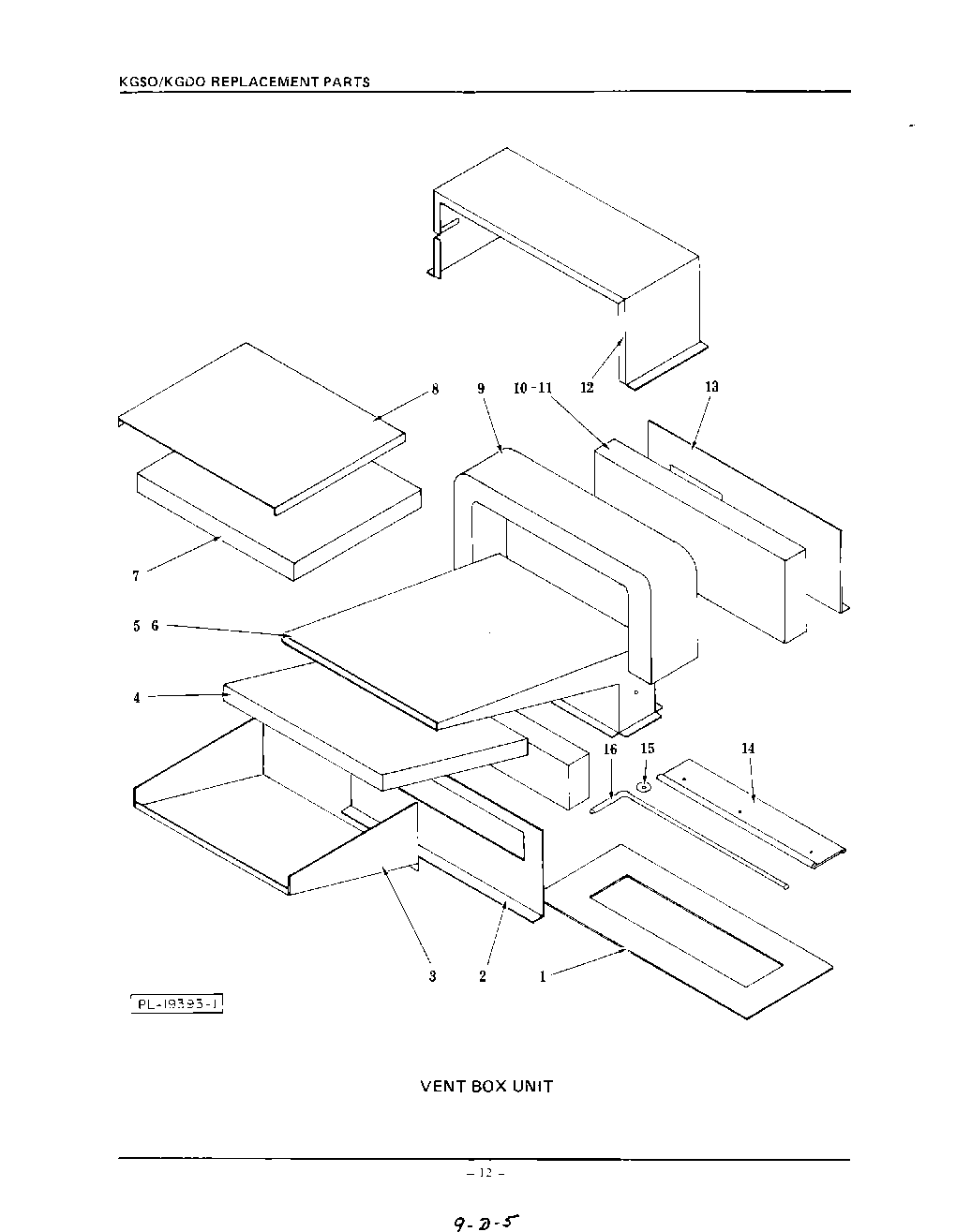

KGDO245EE 08 – VENT BOX

Written by

Products

Position	Product
1	WPL 305065
2	Shoulder Rivet
3	Exhaust Insulation Retainer
5	Vent Box KGSO-145
6	Vent Box KGDO-245
7	Insulation, Exhaust Top
8	Exhaust Insulation Retainer Top
9	Insulation, Top & Sides
10	Insulation Back KGSO-145
11	Insulation Back KGDO-245
12	Insulation Box
13	Insulation Box Back
14	Damper
15	Washer
16	Damper Rod
