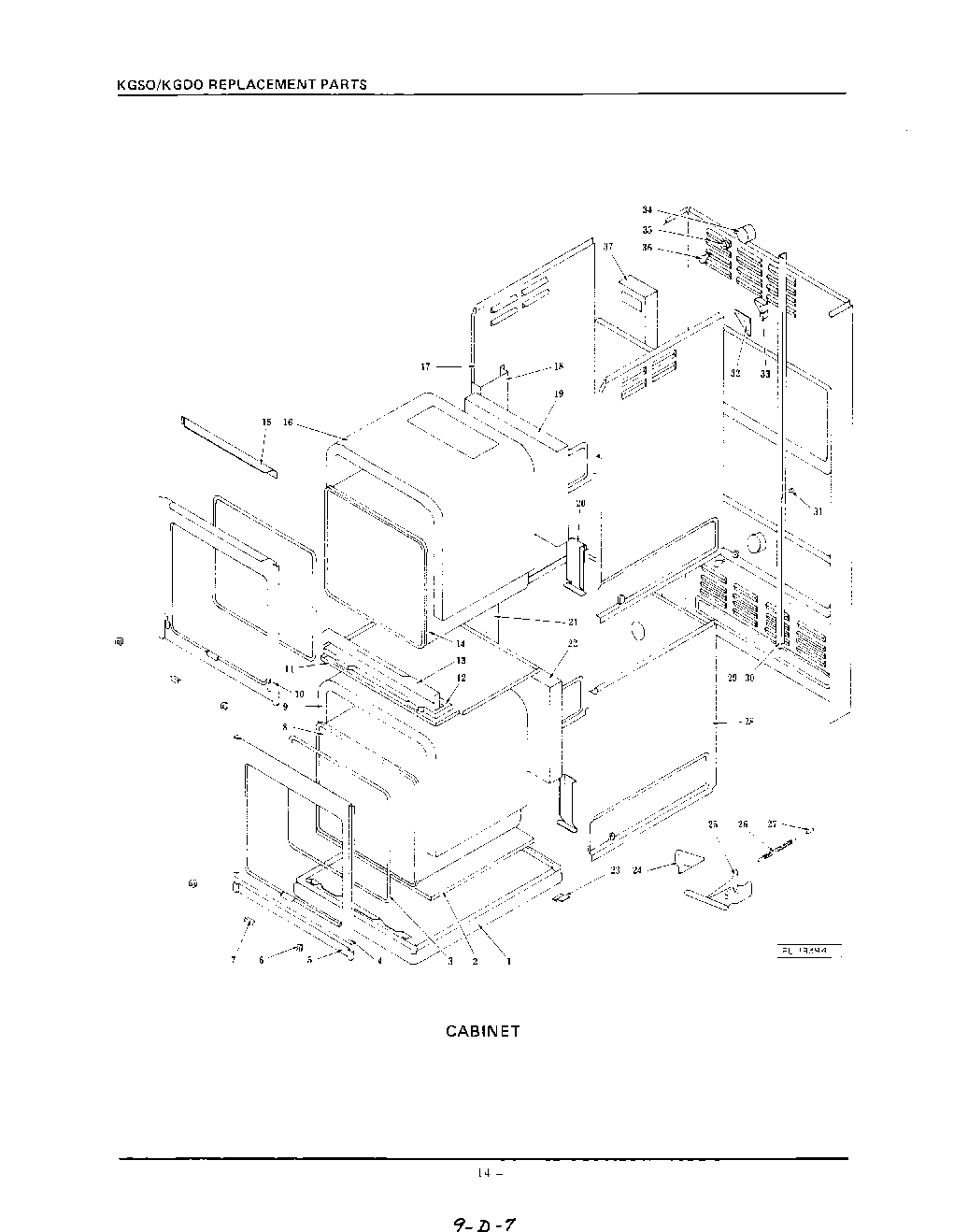

KGDO245EE 09 – CABINET

KGDO245EE 09 – CABINET

Written by

in

KGDO245EE 09 – CABINET

Products

PositionProduct
1Main Bottom
2Insulation, Bottom
3Door Gasket KESO-140/145, KEDO-240/245
4Front Frame, Lower Door KGDO-245
5Bottom Trim
6Hinge Arm Guide
7Cover – Seal End
8Oven Liner, Lower Oven (See Page 9) KGDO-245
9Insulation, Top & Sides, Lower Oven KGDO-245
10WPL 3052392
11Air Baffle KGDO-245
12Rear Support KGDO-245
13Front Support KGDO-245
14Oven Liner Single or Upper Oven (See Page 10)
15WPL CC31733
16Insulation, Top & Sides Single or Upper Oven
17Cabinet Side, Single or Upper Oven
18Air Duct, Right
18Air Duct, Left
19Insulation, Back, Single or Upper Oven
20Rear Anchor
21Air Duct, Left Lower Oven KGDO-245
21Air Duct, Right Lower Oven KGDO-245
22Insulation, Back, Lower Oven KGDO-245
23Orifice Mounting Bracket
24WPL CC22054
24xCam Plate, L.H.
25WPL CC22049
26WPL CC606517
27WPL CC22058
28Cabinet Side, Lower Oven KGDO-245
29xCabinet Support, Left, Single Oven KGSO-145
29Cabinet Support, Right, Single Oven KGSO-145
30xCabinet Support, Left, Double Oven KGDO-245
30Cabinet Support, Right, Double Oven KGDO-245
31WPL CC71194
32WPL CC19760
33WPL 305104
34WPL CC22022
35WPL CC566083
36WPL BL27
37WPL 305283
