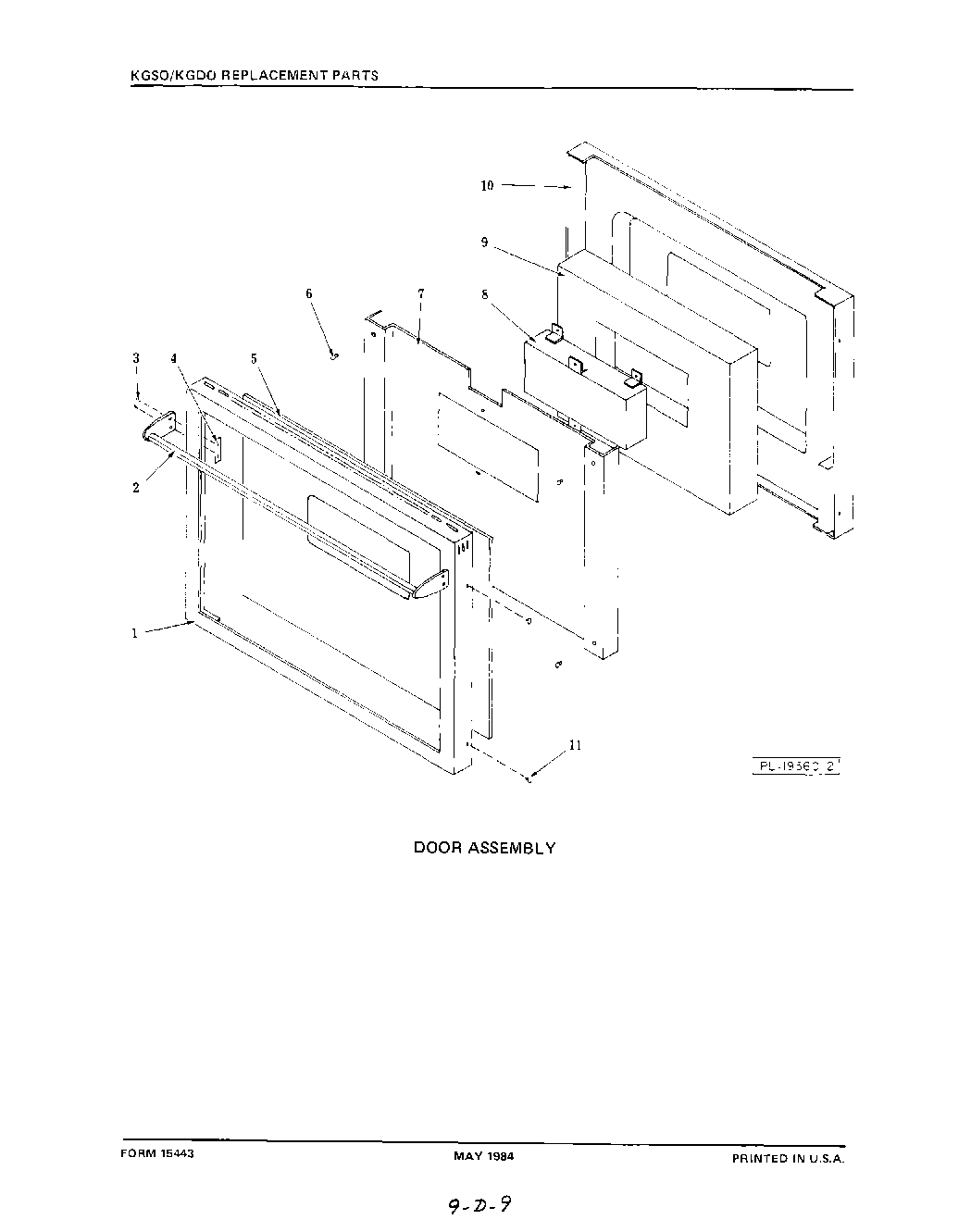

KGDO245EE 10 – DOOR ASSEMBLY

Products

PositionProduct
1Door Frame KEDO-240
2Door Handle
3Screw, 8-32 x 3/8“ PFHMS
4Tinnerman
5Door Glass KEDO-240
6Rubber Bumper
7Insulation Retainer KEDO-240
8Window Pack
9Insulation KEDO-240
10Door Liner KEDO-240
11Screw, 8A x 3/8“ PKESMS
