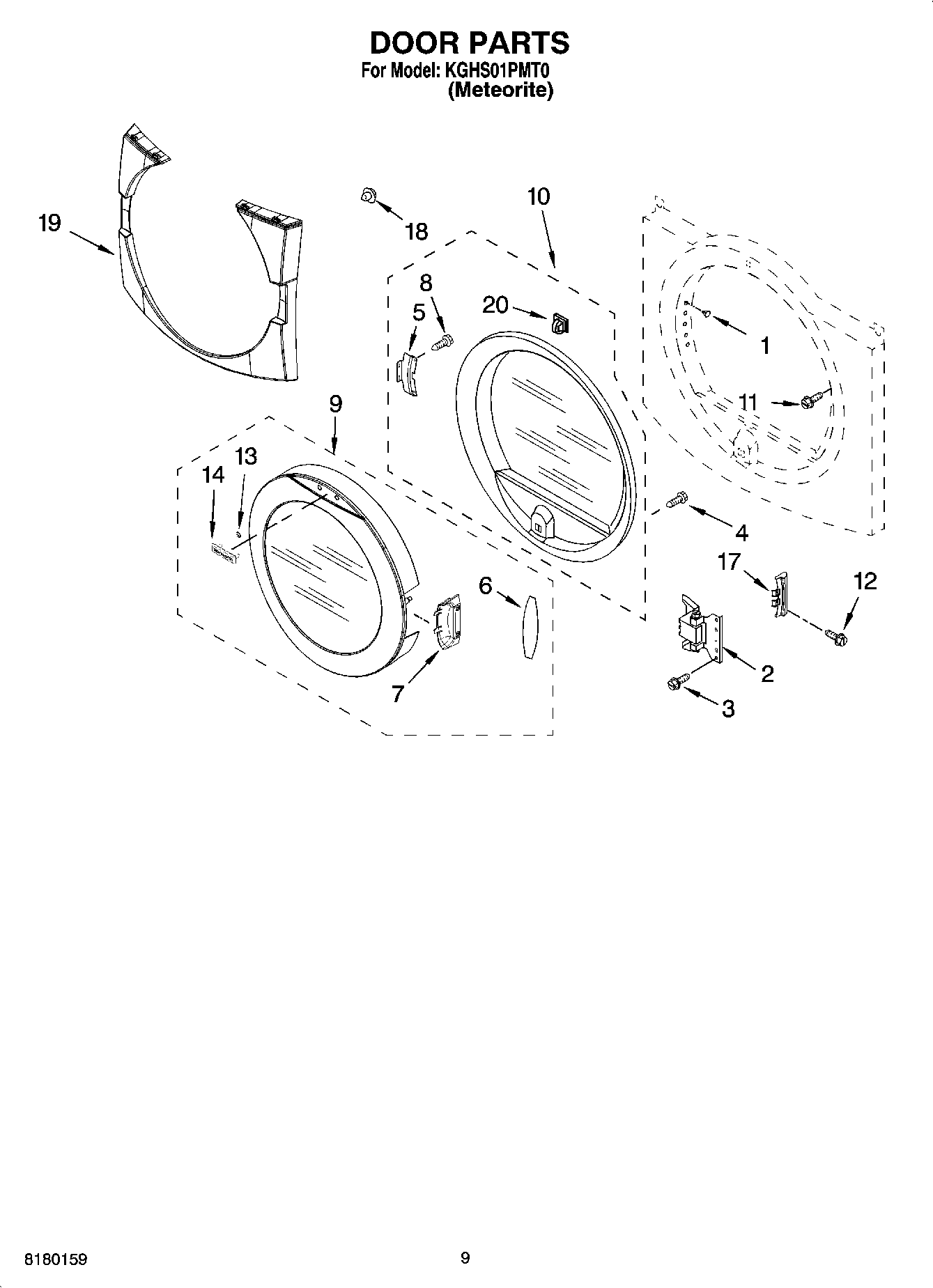

KGHS01PMT0 05 – DOOR PARTS

Products

Position	Product
1	Plug, Hole (5)
2	Door Hinge Assembly
3	Screw, 10-32 x 1/2
4	SCREW
5	Bracket, Handle
6	Pad, Door Handle
7	Handle, Door
8	WP308685 Whirlpool Microwave Screw
9	Door & Window Assembly (Includes Illus. 6, 7, 13 & 14)
10	Inner Door Assembly (Includes Illus. 5, 8 & 20)
11	WP355515 Whirlpool Screw
12	WP90767 Whirlpool Screw
13	WP2004333 Whirlpool Refrigerator Nut
14	Medallion
17	Cover-Hinge, Rotating
18	Clip, Trim Panel
19	Trim & Clip Assembly (Cashmere Metallic)
20	WP3389441 Whirlpool Door Catch
