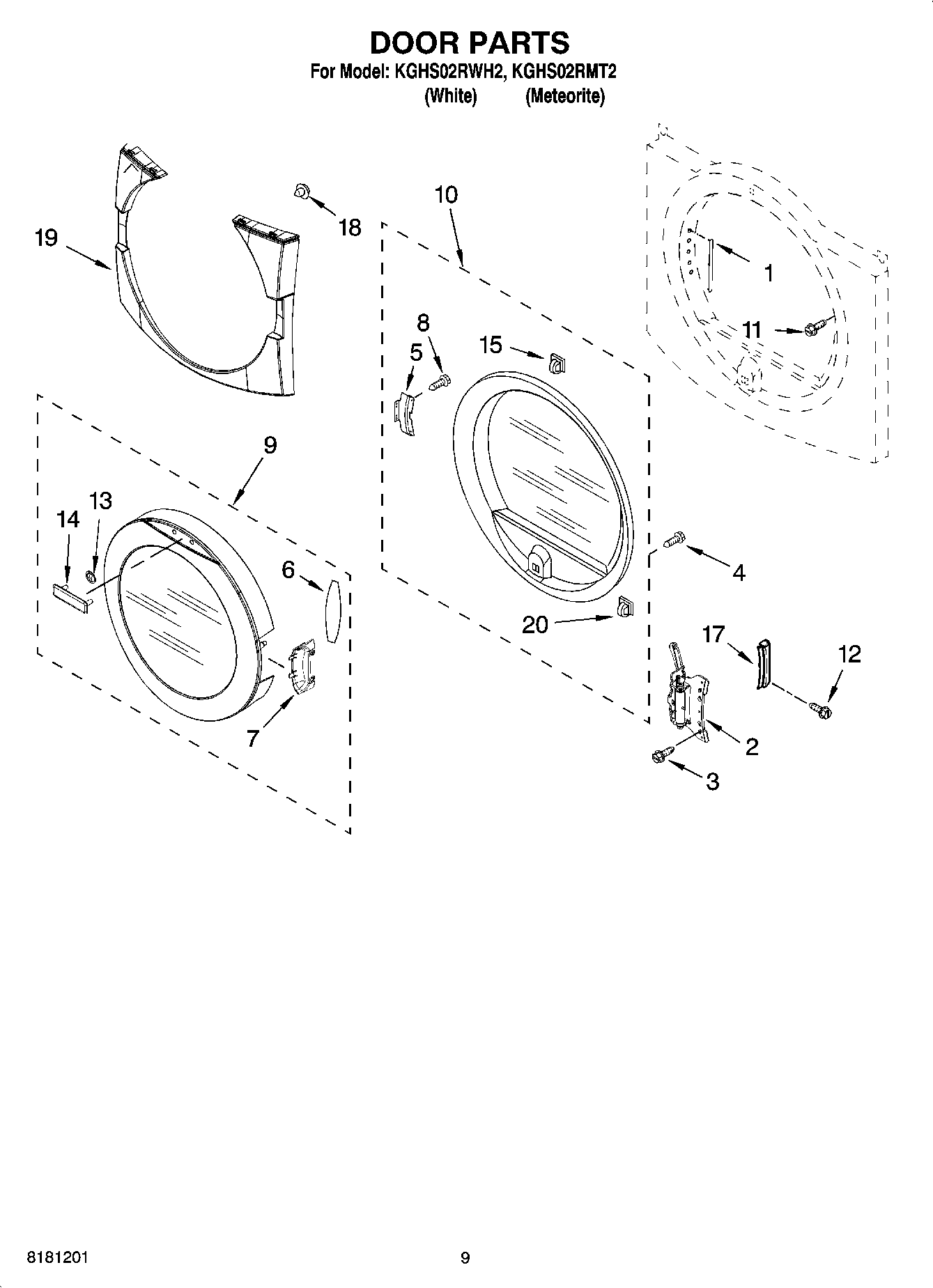

KGHS02RWH2 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	8541503 Whirlpool Stacking Kit
	ACCESSORY PARTS, KIT, HOLD DOWN
	4392067 Whirlpool Dryer Repair Kit
	W11224254 Whirlpool Test Kit
	W10202939 Whirlpool Touch Up
	ACCESSORY PARTS
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
1	Plug, Strip
2	280200 Whirlpool Hinge Assembly
3	Screw, 10-32 x 1/2
4	SCREW
5	Bracket, Handle
6	Pad, Door Handle
7	Handle, Door
8	WP308685 Whirlpool Microwave Screw
9	Door & Window Assembly (Includes Illus. 6, 7, 13 & 14)
10	Inner Door Assembly (Includes Illus. 5, 8 & 20)
11	WP355515 Whirlpool Screw
12	3400859 Whirlpool Screw
13	WP2004333 Whirlpool Refrigerator Nut
14	Medallion
15	279570 Whirlpool Dryer Door Latch Kit
17	Cover-Hinge, Rotating (Cashmere Metallic)
17	Cover-Hinge, Rotating (White)
18	Clip, Trim Panel
19	Trim & Clip Assembly (Cashmere Metallic)
19	Trim & Clip Assembly (White)
20	WP3389441 Whirlpool Door Catch
