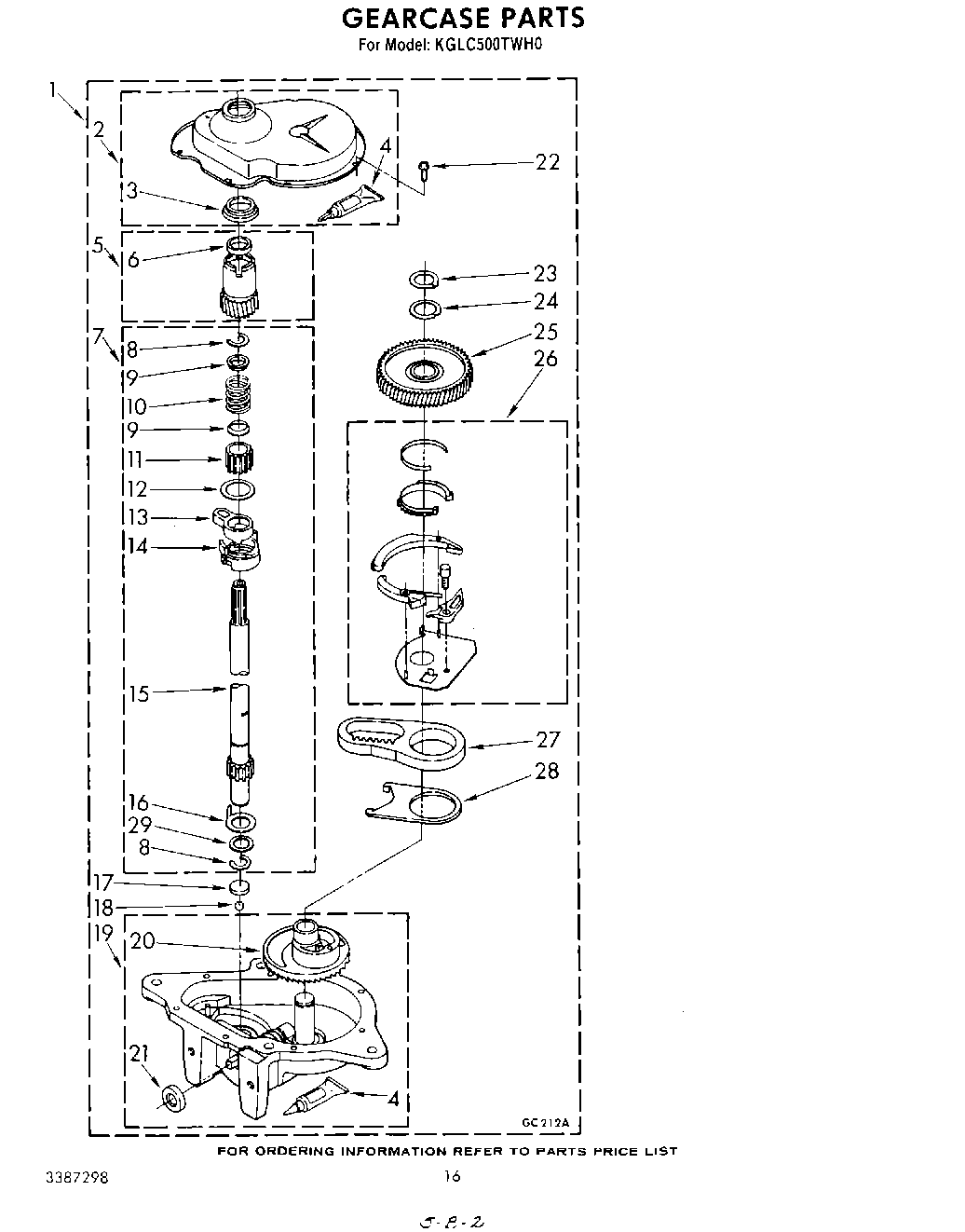

KGLC500TPL0 13 – GEARCASE

Products

Position	Product
1	3360629 Whirlpool Washer Gearcase Transmission
2	285202 Whirlpool Cover Assembly
3	WP3349985 Whirlpool Shaft Seal
4	WP285195 Whirlpool Sealer Assembly
6	WP356427 Whirlpool Shaft Seal
7	WP389387 Whirlpool Agitator Shaft
8	Ring, Retaining (2)
9	62677 Whirlpool Retainer
10	Spring, Agitator
12	62619 Whirlpool Washer
15	Shaft, Agitator
16	Washer, Cam Thrust
17	285205 Whirlpool Bearing
19	Bottom and Pinion, Gearcase
20	Gear, Main Drive
21	285352 Whirlpool Washer Oil Seal Kit for Gearcase Input Shaft
22	WP3351614 Whirlpool Screw
23	Ring, Retaining
24	Washer Kit, Thrust
26	NEUTRL-PAK
29	WP388815 Whirlpool Washer
