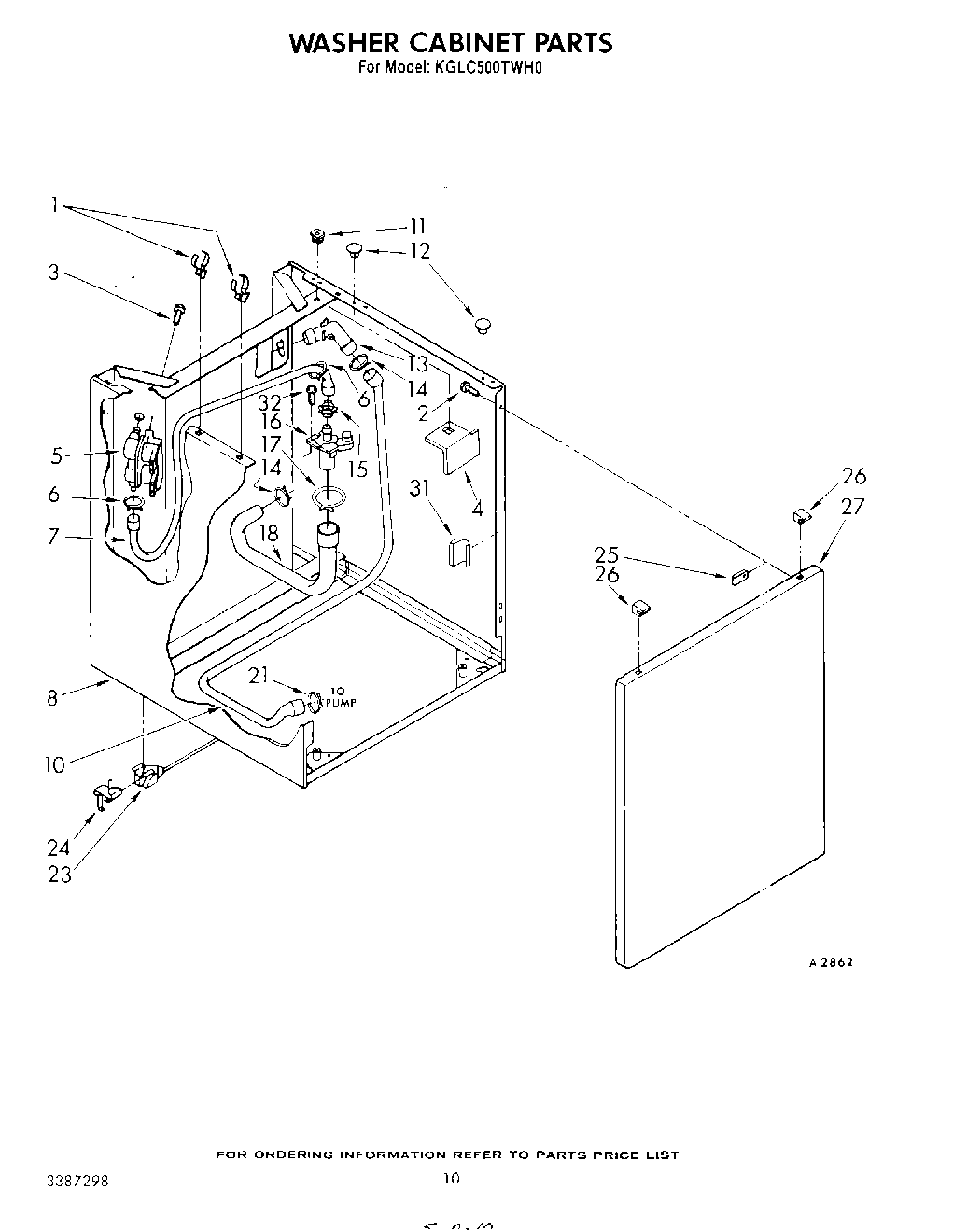

KGLC500TTO0 08 – WASHER CABINET

Products

Position	Product
1	356746 Whirlpool Clip
2	SCREW
3	WP3390631 Whirlpool Screw
4	Shield, Rear
5	285805 Whirlpool Washer Water Inlet Valve
6	WP596669 Whirlpool Hose Clamp
7	WP692699 Whirlpool Hose
8	Cabinet (Platinum)
8	Cabinet (Toast)
8	Cabinet (Almond)
8	Cabinet (White)
8	Cabinet (Golden Harvest)
10	WP696710 Whirlpool Hose
11	WP692400 Whirlpool Nut
12	WP660975 Whirlpool Button Plug
13	W11213338 Whirlpool Connector
14	Clamp, Hose
15	WP356471 Whirlpool Cap
16	WP356363 Whirlpool Siphon Break
17	WP616099 Whirlpool Clamp
18	WP696394 Whirlpool Hose
21	WP285655 Whirlpool Hose Clamp
23	WP358652 Whirlpool Link
24	WP359364 Whirlpool Clip
25	WP98234 Whirlpool Nut
26	Lock, Top (2)
27	WP692628 Whirlpool Panel
27	Panel, Front (Almond)
27	Panel, Front (Toast)
27	Panel, Front (Platinum)
27	Panel, Front (Golden Harvest)
31	Pad, Extruder (2)
32	60001022 Whirlpool Oven Screw
