KGLC500TTO1 04 – DRYER CABINET AND MOTOR

KGLC500TTO1 04 – DRYER CABINET AND MOTOR

Written by

in

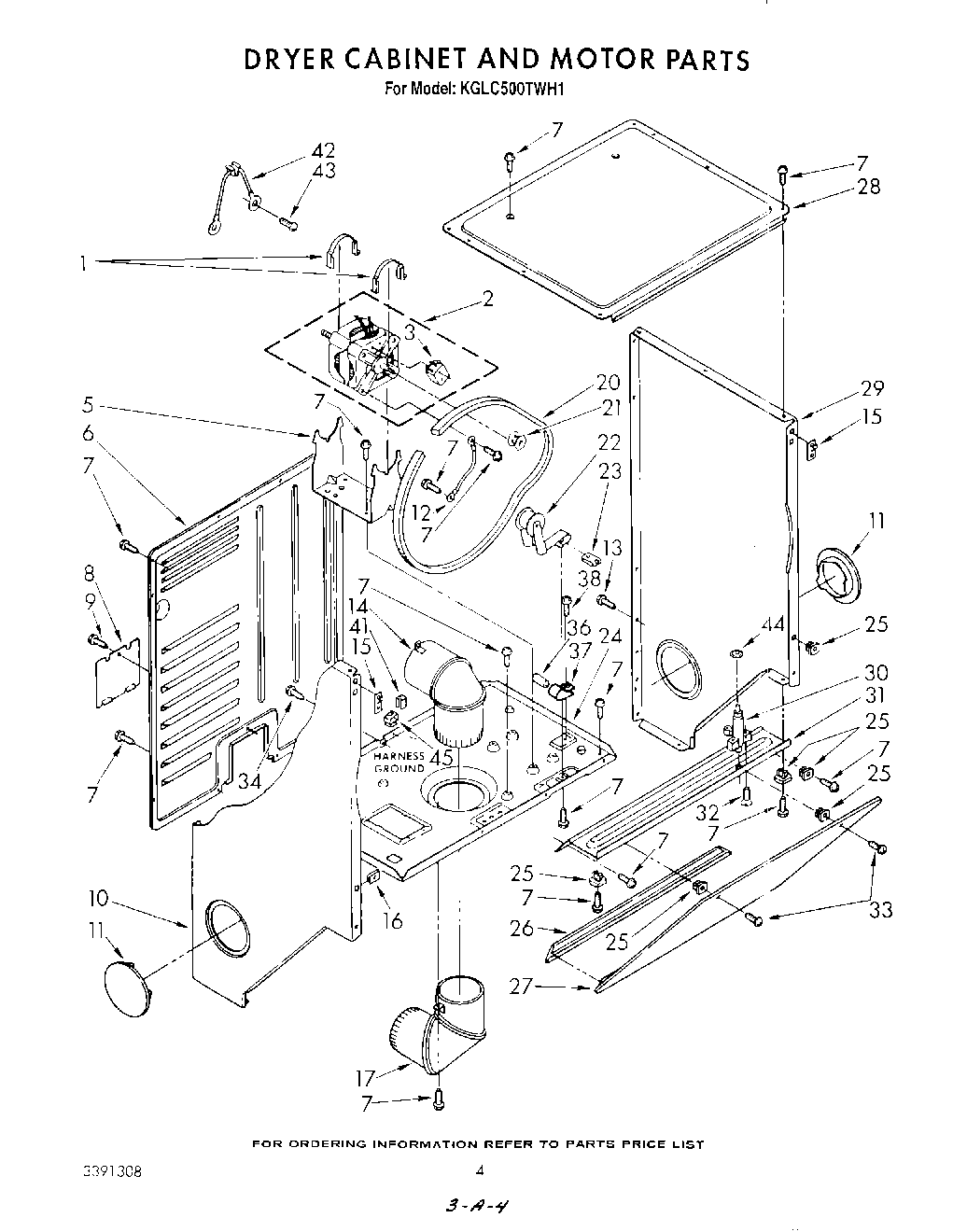

KGLC500TTO1 04 – DRYER CABINET AND MOTOR

Products

PositionProduct
1WP660658 Whirlpool Clamp
3279827 Whirlpool Dryer Drive Motor
5696541 Whirlpool Base
6Panel, Rear
8Cover, Service
10Panel, Side (L.H.) (Toast)
10Panel, Side (L.H.) (Platinum)
10Panel, Side (L.H.) (Almond)
10WP3402293 Whirlpool Panel Assembly
10Panel, Side (L.H.) (Golden Harvest)
11Plug, Side Panel (2) (Platinum)
11Plug, Side Panel (2) (Almond)
11Plug, Side Panel (2) (Toast)
11692790 Whirlpool Plug
11Plug, Side Panel (2) (Golden Harvest)
12Wire, Ground
13WP308544 Whirlpool Screw
14Elbow, Upper
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16WP98234 Whirlpool Nut
173399603 Whirlpool Elbow
203394652 Whirlpool Drum Belt
21W10837625 Whirlpool Dryer Motor Pulley
22WP691366 Whirlpool Dryer Idler Pulley Assembly
23WP692771 Whirlpool Nut
24Base, Dryer
25WP692400 Whirlpool Nut
26WP692926 Whirlpool Cover Appliance
27692933 Whirlpool Panel
27Panel, Transition (Almond)
27Panel, Transition (Toast)
27Panel, Transition (Golden Harvest)
27Panel, Transition (Platinum)
28WP692641 Whirlpool Dryer Top Assembly
29Panel, Side (R.H.) (White)
29Panel, S
29WPL 692610
29WPL 692611
29Panel, Side (R.H.) (Almond)
30WP693145 Whirlpool Lid Latch
31WPL 692784
31WPL 692783
31WP692781 Whirlpool Closure Assembly
31WPL 692782
31WPL 692785
32Screw & Washer
33WP693304 Whirlpool Screw
36CAPACITOR
37357030 Whirlpool Clamp
413390046 Whirlpool Protector
42Cable Assembly
43SCREW
44WP90296 Whirlpool Clip
45Clip
