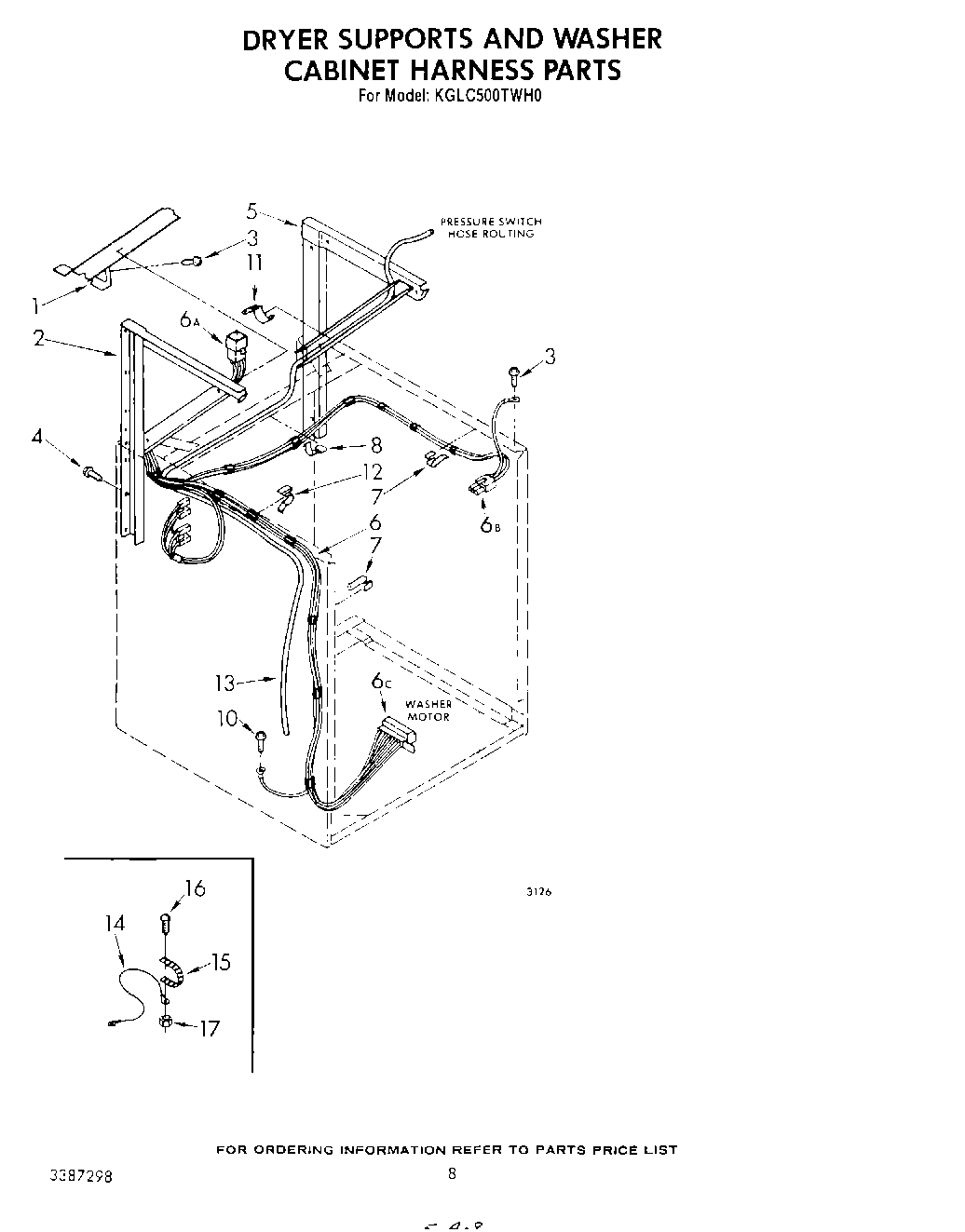

KGLC500TWH0 06 – DRYER SUPPORTS AND WASHER CABINET H

Products

Position	Product
1	694304 Whirlpool Channel Cover
2	W11174025 Whirlpool Support Assembly
3	SCREW
4	WP308544 Whirlpool Screw
5	W11174024 Whirlpool Support
6C	WP62505 Whirlpool Connector
6B	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
6A	Plug, Terminal (12-Way) (Connects With Automatic Console Harness)
6	Harness, Upper (Automatic) (Includes Illus. 6A, 6B & 6C)
8	Clip, Pressure Switch Hose And Wiring Harness (3)
10	WP488234 Whirlpool Air Conditioner Screw
11	WP90016 Whirlpool Clip
12	CLIP
13	W10834213 Whirlpool Hose
14	WPL 685449
15	Strap, Ground
16	Screw, Ground (10-24 x 1)
17	W10080180 Whirlpool Nut
