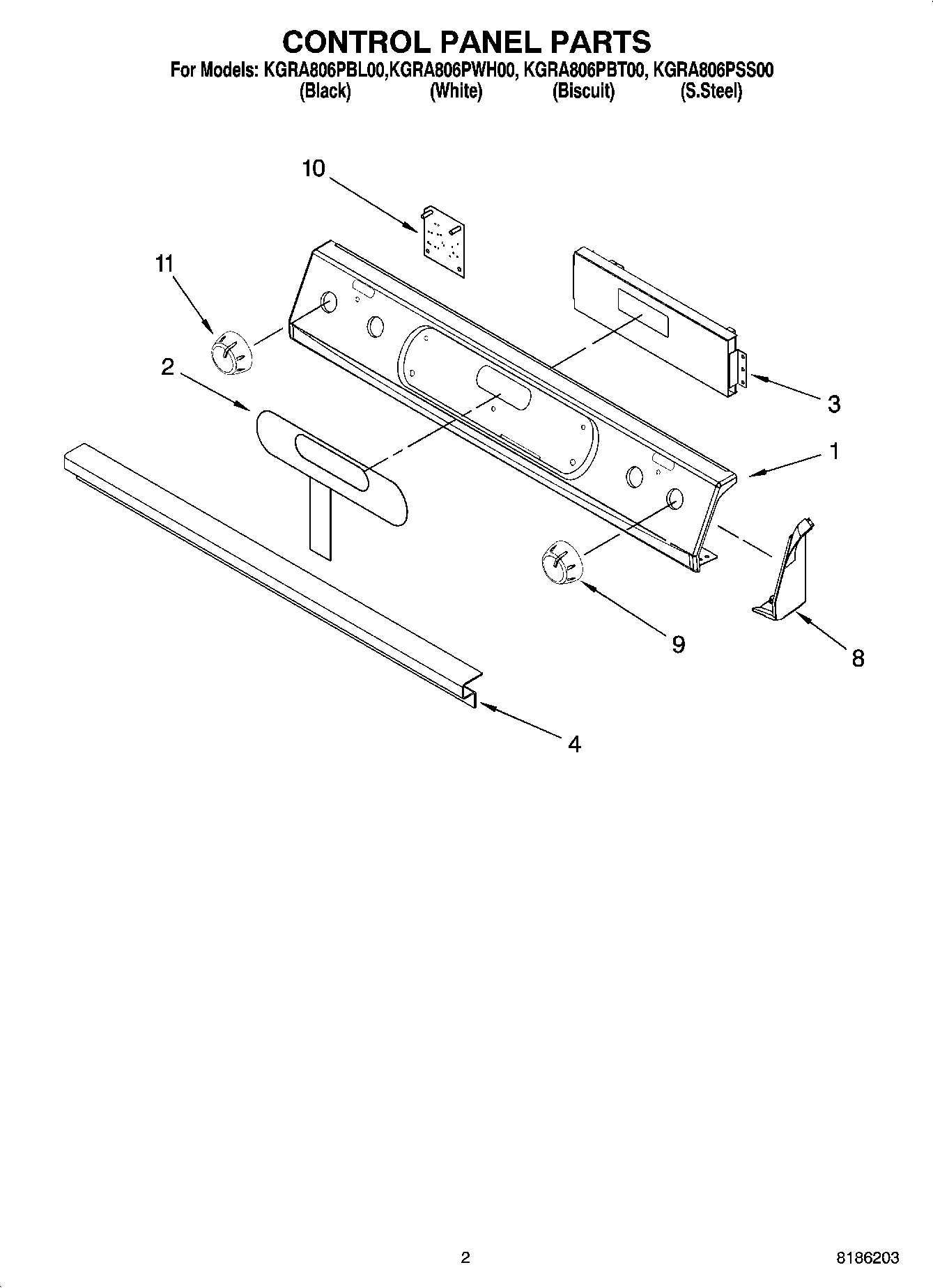

KGRA806PBL00 02 – CONTROL PANEL PARTS

KGRA806PBL00 02 – CONTROL PANEL PARTS

Written by

in

KGRA806PBL00 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Panel (Biscuit)
1Control Panel (Black)
1Control Panel (S.Steel)
1Control Panel (White)
2WP9756559BT Whirlpool Membrane Switch
2WP9756559ES Whirlpool Membrane Switch
2Membrane Switch (Black)
2Membrane Switch (White)
2WP3400832 Whirlpool Screw
3Screw
3Control, Migration
4Screw (4)
4Bracket, Console
8Endcap (Black LH)
8Endcap (White LH)
8Endcap (S.Steel)
8Endcap (Black RH)
8Endcap (S.Steel)
8Endcap (Biscuit RH)
8Endcap (White RH)
83196172 Whirlpool Oven Screw
8Endcap (Biscuit LH)
9Knob (Biscuit)
9Knob (White)
9Knob (Black)
9Knob, Burner (4) (Meteorite Model)
10WPW10331686 Whirlpool Oven Spark Module
11Knob (Black)
11Knob (Biscuit)
11Knob (Cashmere Metal)
11Knob (White)
