KGRA806PBL01 08 – TRIPLE CROWN BURNER, OPTIONAL PARTS

KGRA806PBL01 08 – TRIPLE CROWN BURNER, OPTIONAL PARTS

Written by

in

KGRA806PBL01 08 – TRIPLE CROWN BURNER, OPTIONAL PARTS

Products

PositionProduct
WPL ARI87780A6
9757426 Whirlpool Oven LP Conversion Kit
9756921 Whirlpool Oven Wire Harness
W10624584 Whirlpool Power Cord
261900 Whirlpool Microwave Spray
WPL 591014
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Gasket 19 x 388
Filler, Counter Top (Black)
Filler, Counter Top (Biscuit)
WPL ARI87779A9
WPL ARI87778A2
WPL ARI87777A8
WPL 9760526
WPL 9756920
WPL 9756635
WPL 9756618
WPL 9756617
WPL 9756610
Filler, Counter Top (White)
Wire (14 Ga. 150 c Orange)
350930 Whirlpool White Spray Paint
814381 Whirlpool Pin
WP482338 Whirlpool Refrigerator Adhesive
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
4450800 Whirlpool Oven Screw
4448664 Whirlpool Oven Mounting Bracket
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25` Roll (Black 14 Ga.)
WP3400015 Whirlpool Screw
WP112432 Whirlpool Nut Assembly
WP4449809 Whirlpool Screw
72017 Whirlpool Appliance Touch-Up Paint White
W11447673 Whirlpool Range Tip Anchor
242831 Whirlpool Oven Wire
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
Harness, Wire
Spacer, Harness
Clip, Ground Wire
WP4448950 Whirlpool Screw

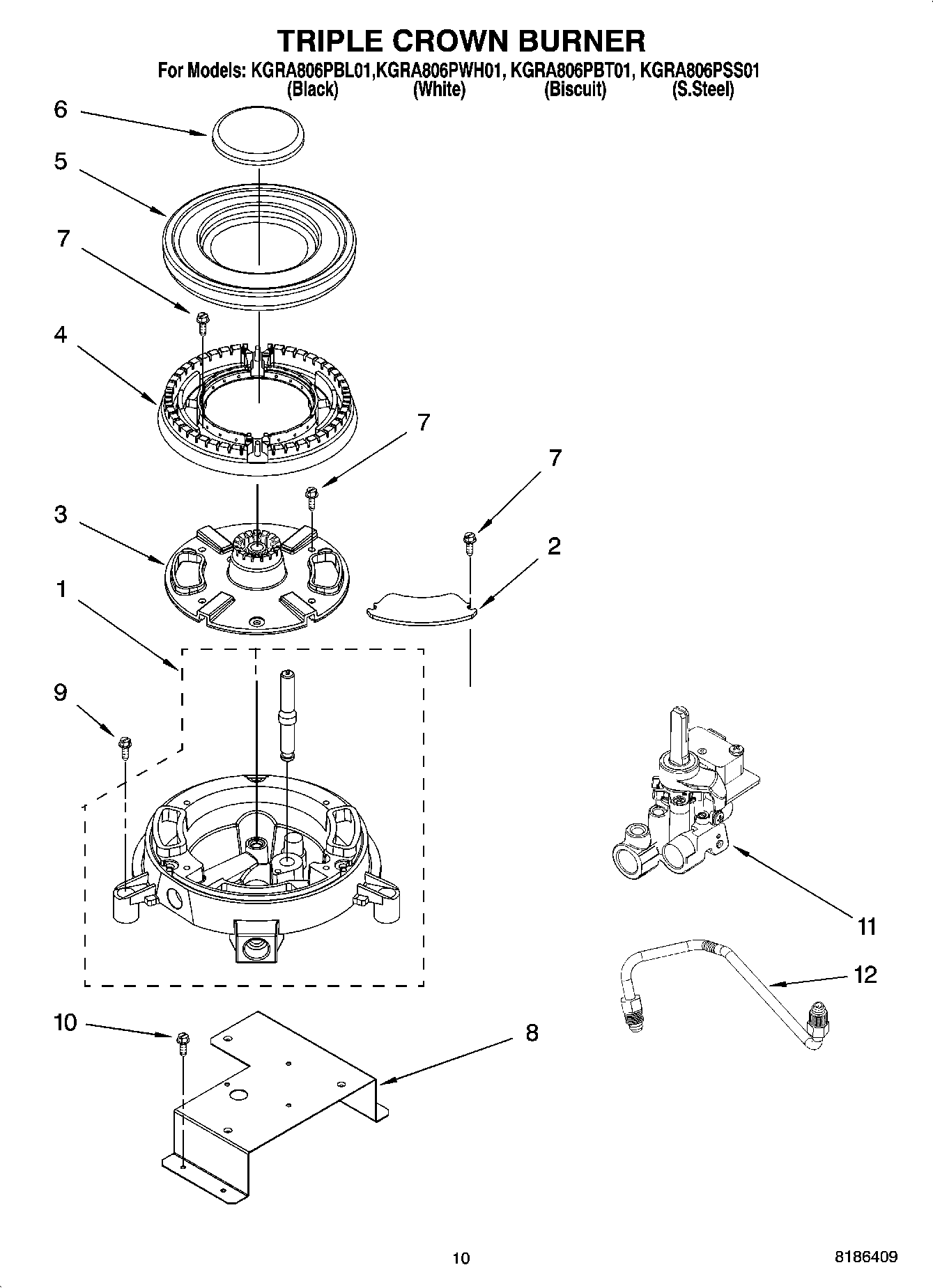

1Burner Assy., Triple Crown Brnr
28285250 Whirlpool Oven Cover Plate
3WP8285255 Whirlpool Burner Head
4WP8285256 Whirlpool Burner Head
5Cap, Burner Ext. (Mouse Gray)
5Cap, Burner Ext. (Black)
5Cap, Burner Ext. (Moleskin)
5WP8285258 Whirlpool Top Cap
6Cap, Burner Int. (Mouse Gray)
6WP9758829CB Whirlpool Burner Cap
6Cap, Burner Int. (Moleskin)
6Cap, Burner Int. (Black)
8Bracket, Triple Crown Burner
9WP12990527 Whirlpool Microwave Screw
10WP3400702 Whirlpool Screw
11VALVE, TCB
12Tube, T.C.B. Gas
