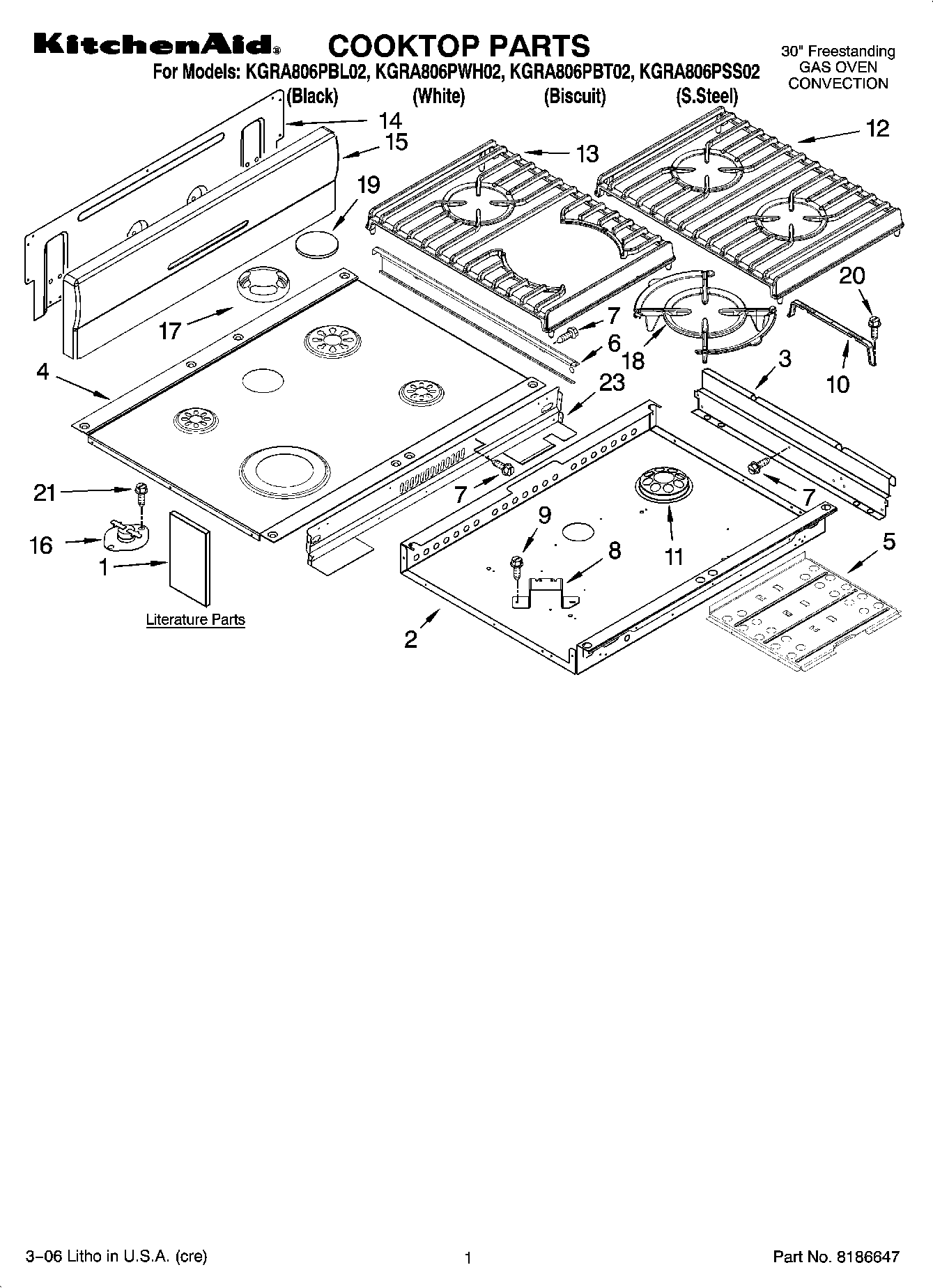

KGRA806PBL02 01 – COOKTOP PARTS

Products

Position	Product
1	Safe Cooking Tips
1	Guide, Easy Set (French)
1	Tech Sheet
1	Safe Cooking Tips (French)
1	Anti-Tip Instruct.
1	Guide, Easy Set
1	Installation Instructions
1	Use & Care Guide
2	Burner Box
3	Bracket, Mounting
4	Cooktop (Biscuit)
4	Cooktop (Black)
4	Cooktop (White)
5	Gasket
5	Shield, Heat
6	Trim-CkTop, SI (S.Steel LH)
6	Trim-CkTop, SI (White RH)
6	Trim-CkTop, SI (S.Steel RH)
6	Trim-CkTop, SI (Biscuit RH)
6	Trim-CkTop, SI (Black RH)
6	Trim-CkTop, SI (Black LH)
6	Trim-CkTop, SI (Biscuit LH)
6	Trim-CkTop, SI (White LH)
7	WP3196557 Whirlpool Screw
8	Bracket, Burner
9	WP12990527 Whirlpool Microwave Screw
10	WP9756821 Whirlpool Support
11	Dome Cap, Vent
12	Grate, Burner (Moleskin)
12	Grate, Burner (Coal Black)
12	Grate, Burner (Black)
12	Grate, Burner (Cumberland Gray)
13	Grate, Brnr (TCB) (Cumberland Gray)
13	Grate, Brnr (TCB) (Moleskin)
13	Grate, Brnr (TCB) (Coal Black)
13	Grate, Brnr (TCB) (Black)
14	Cover, Backsplash Rear
15	Backsplash (White)
15	Backsplash (Black)
15	Backsplash (S.Steel Gasket)
15	Backsplash (Gray)
15	Backsplash (Black)
15	Backsplash (Biscuit)
16	WP9759944 Whirlpool Thermostat
17	Vent, Center (Biscuit)
17	Vent, Center (Black)
17	Vent, Center (White)
18	WPL 9760222CG
18	Grate
18	WPL 9760222MS
18	WPL 9760222CB
19	WP3191898 Whirlpool Surface Burner Cap Black
19	WP3191904 Whirlpool Burner Cap
19	WP3191905 Whirlpool Burner Cap
19	Cap, Burner 6K (1) (Gray)
19	WP8284669 Whirlpool Burner Cap
19	WPL 3191898MS
19	WPL 3191904MS
19	WP4456536 Whirlpool Burner Cap
20	WP4449809 Whirlpool Screw
21	W10491985 Whirlpool Screw
23	WPL 9759627
