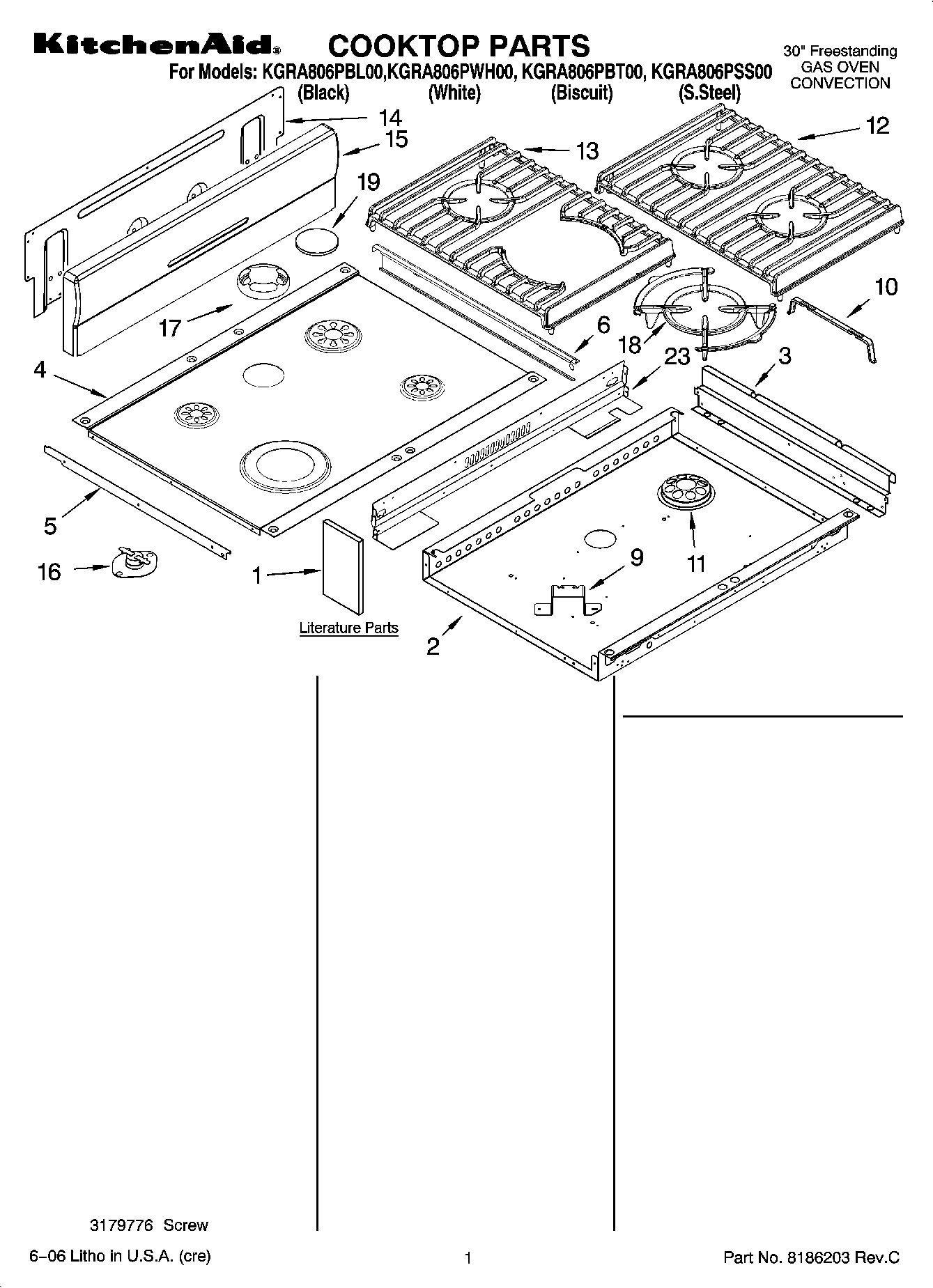

KGRA806PWH00 01 – COOKTOP PARTS

KGRA806PWH00 01 – COOKTOP PARTS

Written by

in

KGRA806PWH00 01 – COOKTOP PARTS

Products

PositionProduct
1Safe Cooking Tips
1Use & Care Guide
1Anti-Tip Instruct.
1Tech Sheet
1Installation Instructions
2Burner Box
3Bracket, Mounting
4Cooktop (Biscuit)
4Cooktop (White)
4Cooktop (Black)
5Wall, Side Cktp (White)
5Wall, Side Cktp (Biscuit)
5Wall, Side Cktp (Black)
6Trim-CkTop, SI (White RH)
6Trim-CkTop, SI (S.Steel RH)
6Trim-CkTop, SI (Black RH)
6Trim-CkTop, SI (Biscuit RH)
6Trim-CkTop, SI (S.Steel LH)
6Trim-CkTop, SI (Biscuit LH)
6Trim-CkTop, SI (Black LH)
6Trim-CkTop, SI (White LH)
9Bracket, Burner
9WP12990527 Whirlpool Microwave Screw
10WP9756821 Whirlpool Support
10WP4449809 Whirlpool Screw
11Dome Cap, Vent
12Grate, Burner (Cumberland Gray)
12Grate, Burner (Black)
12Grate, Burner (Moleskin)
12Grate, Burner (Coal Black)
13Grate, Brnr (TCB) (Cumberland Gray)
13Grate, Brnr (TCB) (Moleskin)
13Grate, Brnr (TCB) (Coal Black)
13Grate, Brnr (TCB) (Black)
14Cover, Backsplash Rear
15Backsplash (Gray)
15Backsplash (Black)
15Backsplash (Biscuit)
15Backsplash (White)
15Backsplash (Black)
15Backsplash (S.Steel Gasket)
16WP9759944 Whirlpool Thermostat
16W10491985 Whirlpool Screw
17Vent, Center (White)
17Vent, Center (Biscuit)
17Vent, Center (Black)
18WPL 9760222MS
18WPL 9760222CB
18Grate
18WPL 9760222CG
19WP4456536 Whirlpool Burner Cap
19WP3191898 Whirlpool Surface Burner Cap Black
19WPL 3191904MS
19WP3191904 Whirlpool Burner Cap
19WP3191905 Whirlpool Burner Cap
19Cap, Burner 6K (1) (Gray)
19WPL 3191905MS
19WP8284669 Whirlpool Burner Cap
23Screw (4)
23WPL 9759627
