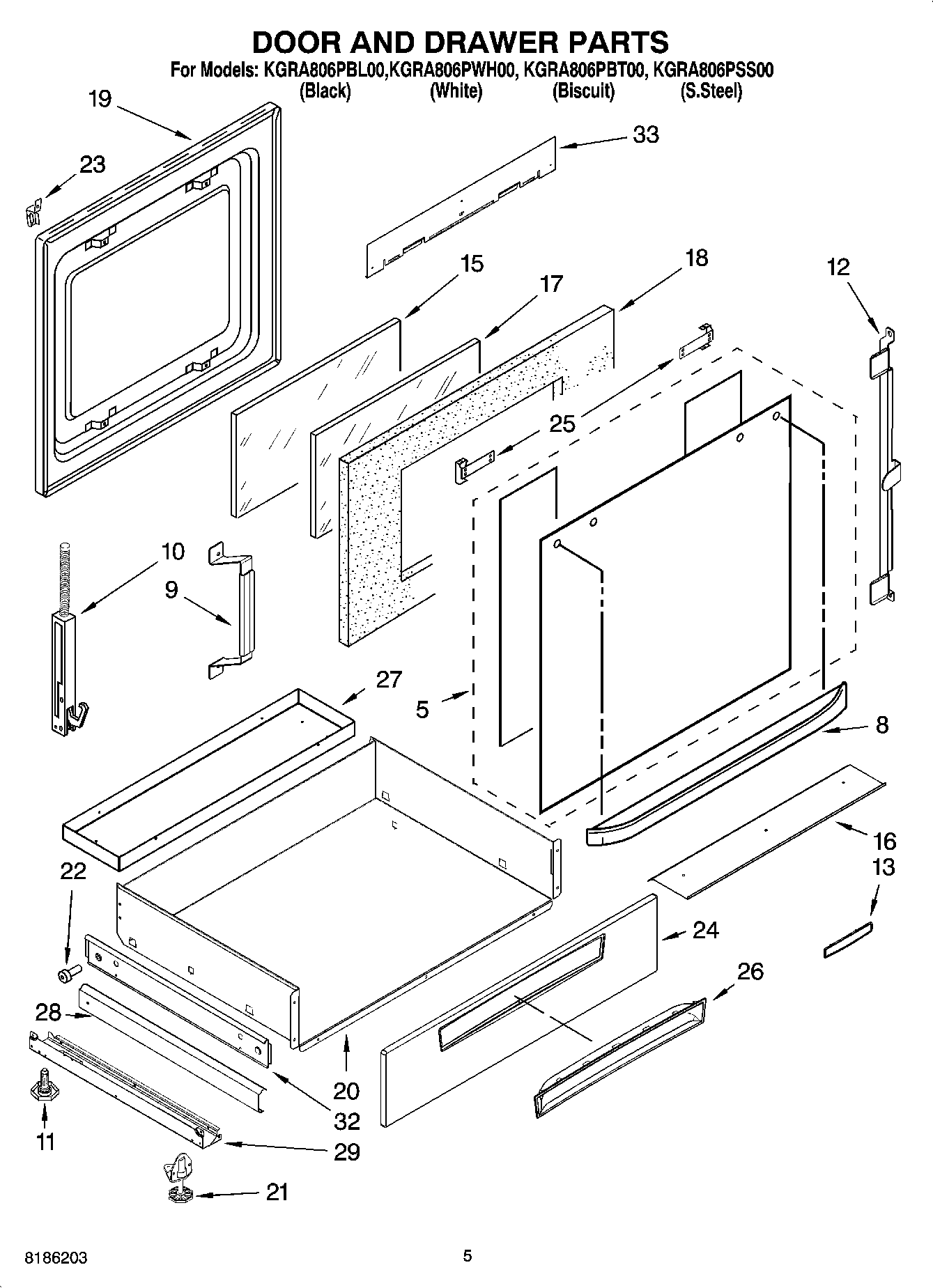

KGRA806PWH00 04 – DOOR AND DRAWER PARTS

Products

Position	Product
5	Glass, Door Front (S.Steel)
5	Glass, Door Front (White)
5	Glass, Door Front (Biscuit)
5	Glass, Door Front (Black)
8	Handle, Door (Black)
8	Handle, Door (Biscuit)
8	Handle, Door (S.Steel)
8	Handle, Door (White)
9	Bracket, Central
10	WP9760572 Whirlpool Door Hinge
10	WP9760571 Whirlpool Door Hinge
11	WPW10058460 Whirlpool Appliance Levelling Leg
12	WP9759229 Whirlpool Mounting Bracket
13	Nameplate (Biscuit)
13	Nameplate (White)
13	Palnut
13	Nameplate (Black)
15	WP9757706 Whirlpool Door Inner Glass
16	4457114 Whirlpool Oven Heat Shield
17	WP4449263 Whirlpool Inner Door Glass
18	WP4451722 Whirlpool Door Insulation Assembly
19	WP9759413 Whirlpool Door Liner
20	Drawer
21	WP3196037 Whirlpool Leveling Foot
21	WP4449743 Whirlpool Screw
22	814229 Whirlpool Primary Roller
23	Retainer, Door
24	Front, Drawer (Biscuit)
24	Front, Drawer (S.Steel)
24	Front, Drawer (Black)
24	Front, Drawer (White)
25	Bracket, Handle (L.Hand)
25	Bracket, Handle (R.Hand)
25	WP8533988 Whirlpool Screw Fastener
26	Handle, Drawer (White)
26	Handle, Drawer (Black)
26	Handle, Drawer (Biscuit)
26	Handle, Drawer (S.Steel)
27	Panel, Drawer
28	WPW10155633 Whirlpool Drawer Slide Rail
28	WPW10155632 Whirlpool Slide Drawer Assembly
29	Side, Base (R.Side)
29	Side, Base (L.Side)
32	Guide, Roller
33	Shield, Heat Top
