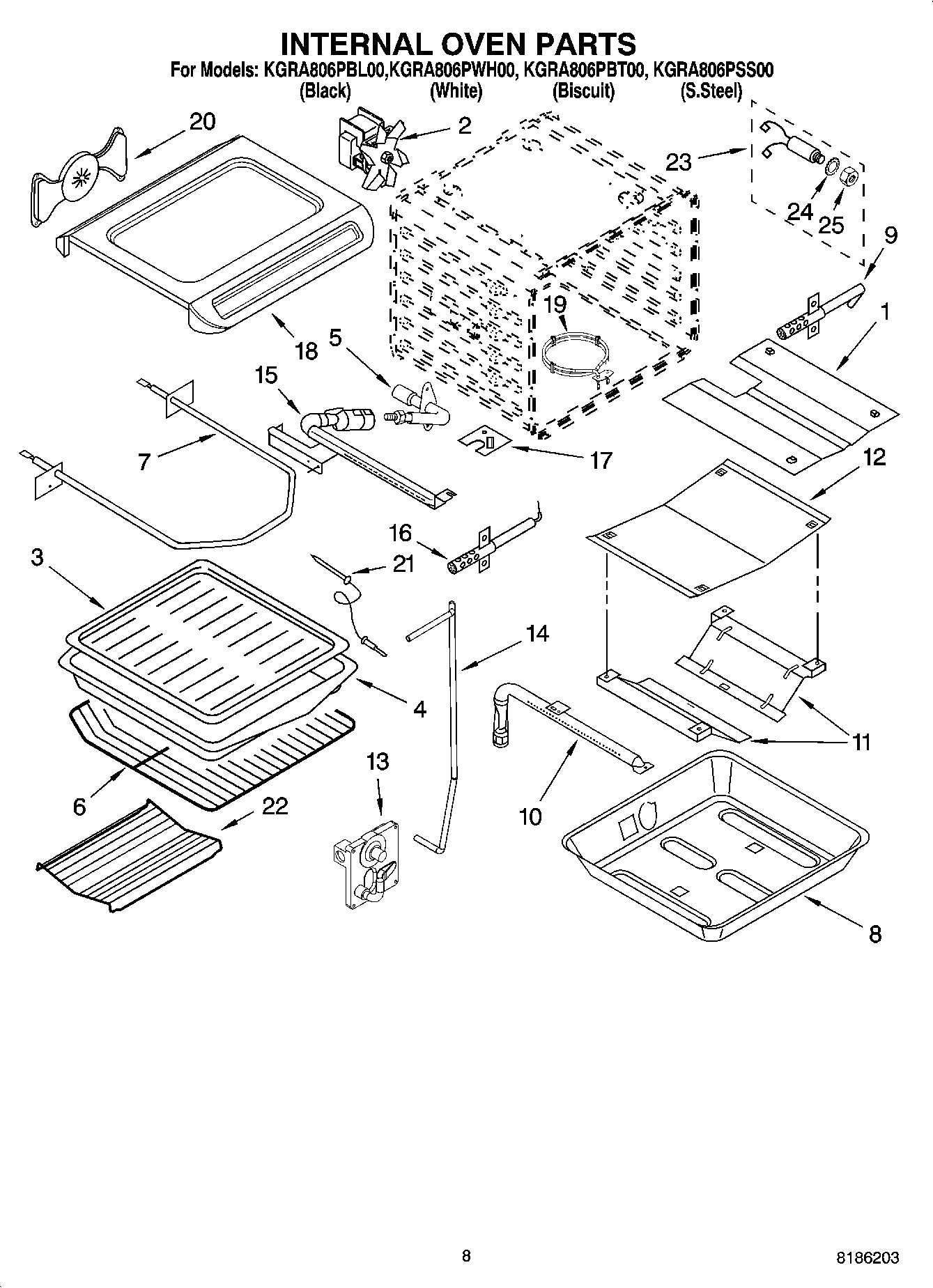

KGRA806PWH00 06 – INTERNAL OVEN PARTS

Products

Position	Product
1	Shield, Flame
2	Motor Convection
3	WP3195996 Whirlpool Pan Grid
4	W10737569 Whirlpool Broil Pan
5	9757779 Whirlpool Oven Fitting
6	WPW10179152 Whirlpool Rack Oven
7	Element, Broil
8	WPW10145744 Whirlpool Support
10	8191123 Whirlpool Oven Burner Assembly with Igniter
11	Shield, Oven (2)
12	Shield, Bake Flame
13	Screw
13	WP9763716 Whirlpool Gas Valve
14	Tube, Broil
15	Burner, Broil
16	WP8054129 Whirlpool Oven Igniter
16	W11684507 Whirlpool Screw
17	Cover, Ignitor
17	SCREW
18	WPW10272546 Whirlpool Broiler Pan
19	9760777 Whirlpool Oven Element
20	WP4449154 Whirlpool Screw
20	Cover, Fan
21	WP9755542 Whirlpool Oven Meat Probe
22	Rack, Roasting
23	8186589 Whirlpool Jack Probe
24	WP9755547 Whirlpool Lockwasher
25	WP9755546 Whirlpool Locknut
