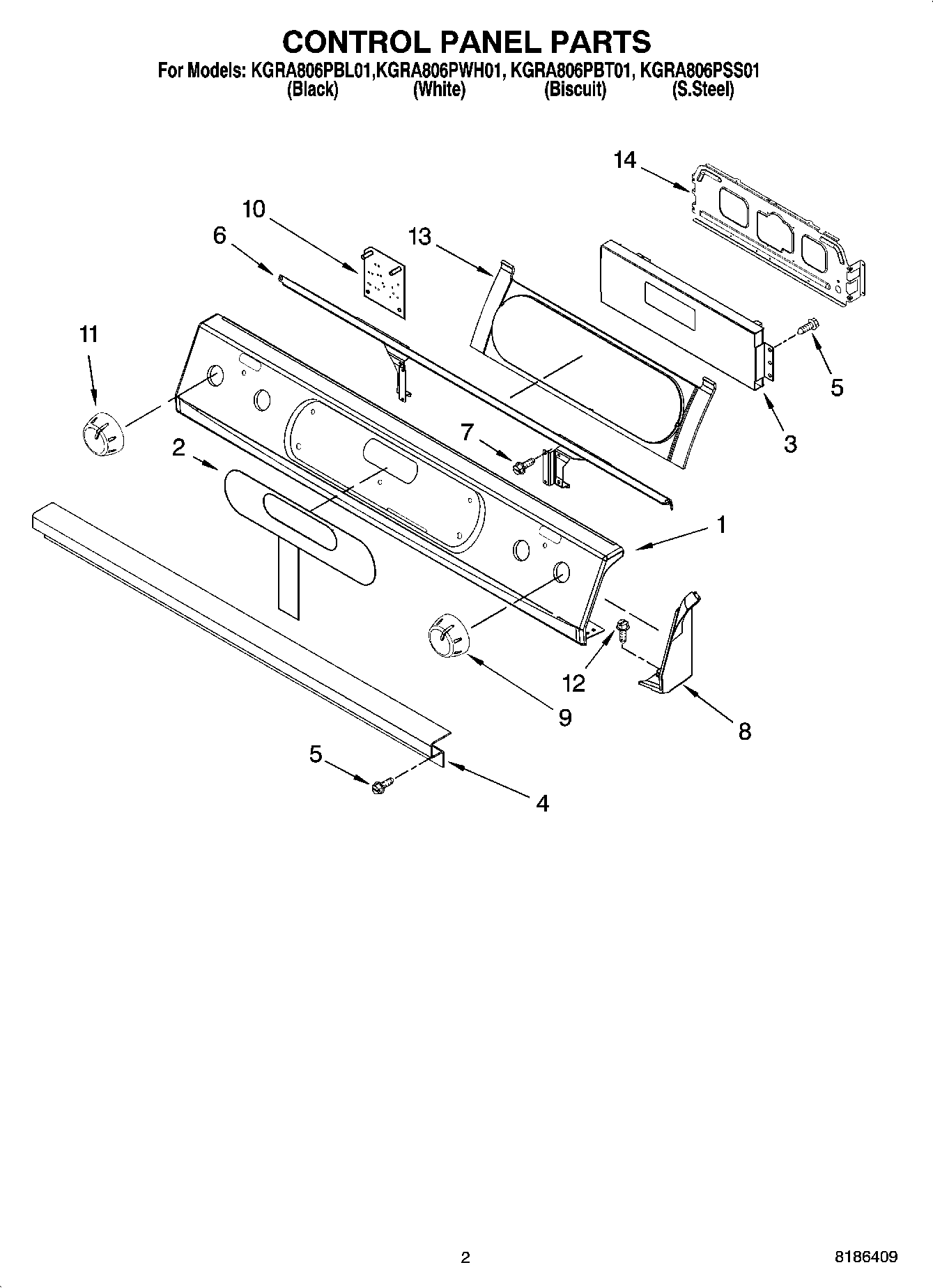

KGRA806PWH01 02 – CONTROL PANEL PARTS

KGRA806PWH01 02 – CONTROL PANEL PARTS

Written by

in

KGRA806PWH01 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Panel (Black)
1Control Panel (Biscuit)
1Control Panel (S.Steel)
1Control Panel (White)
2WP9756559BT Whirlpool Membrane Switch
2Membrane Switch (White)
2Membrane Switch (Black)
2WP9756559ES Whirlpool Membrane Switch
3Control, Migration
4Bracket, Console
5WP3196557 Whirlpool Screw
6Bracket, User Interface
7WP486579 Whirlpool Air Conditioner Screw
8Endcap (Biscuit LH)
8Endcap (Black LH)
8Endcap (S.Steel LH)
8Endcap (White LH)
8Endcap (Black RH)
8Endcap (Biscuit RH)
8Endcap (S.Steel RH)
8Endcap (White RH)
9Knob (Biscuit)
9Knob (Black)
9Knob (White)
9Knob, Burner (4) (Meteorite Model)
10WPW10331686 Whirlpool Oven Spark Module
11Knob (Biscuit)
11Knob (Black)
11Knob (Cashmere Metal)
11Knob (White)
123196172 Whirlpool Oven Screw
13Insert, Membrane
14Support, Gas Valve
