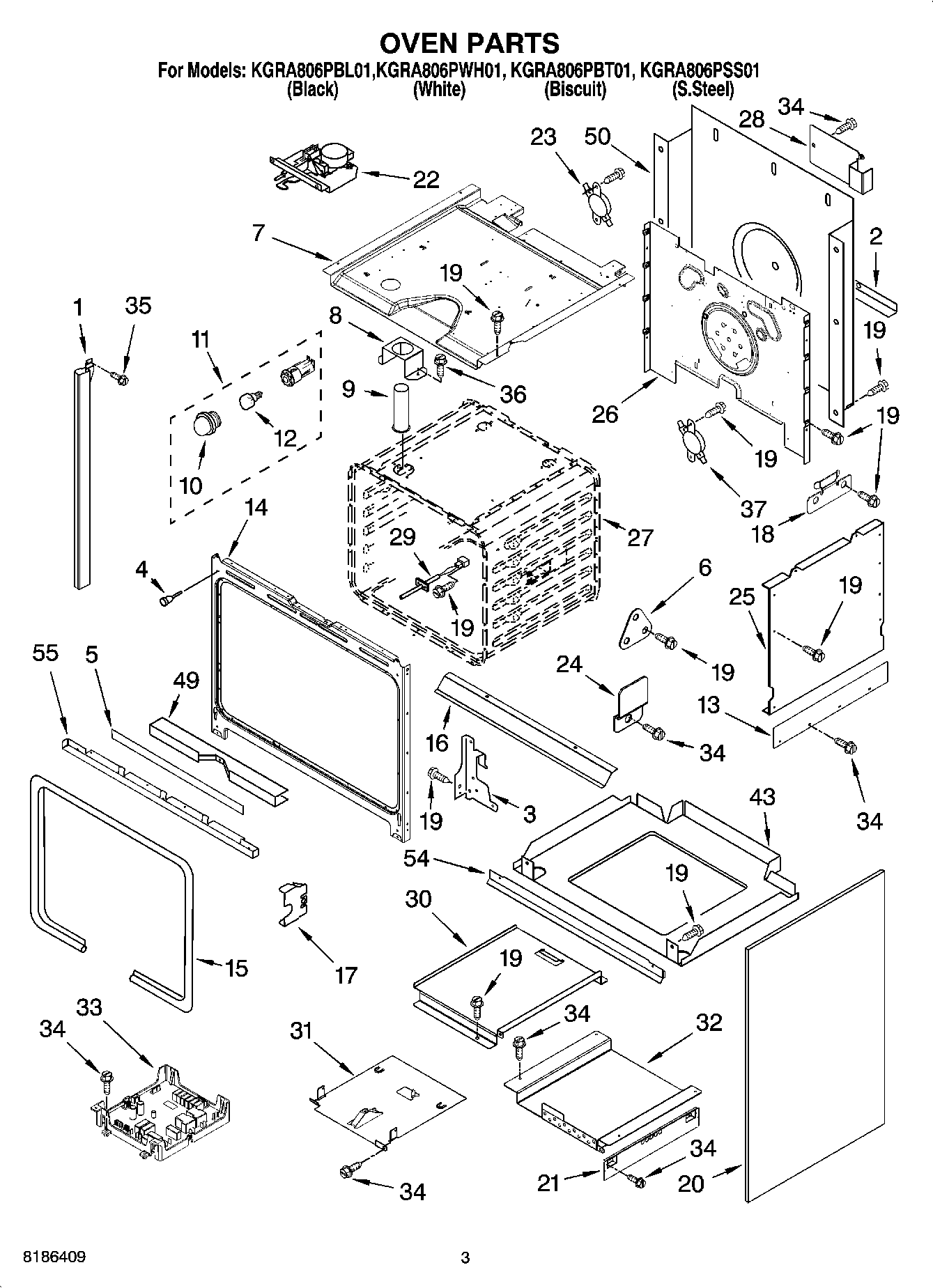

KGRA806PWH01 03 – OVEN PARTS

KGRA806PWH01 03 – OVEN PARTS

Written by

in

KGRA806PWH01 03 – OVEN PARTS

Products

PositionProduct
1Trim, Side (Right Hand) (Black)
1Trim, Side (Right Hand) (Biscuit)
1Trim, Side (Right Hand) (White)
1Trim, Side (Left Hand) (Black)
1Trim, Side (Left Hand) (Biscuit)
1Trim, Side (Left Hand) (S.Steel)
1Trim, Side (Left Hand) (White)
1Trim, Side (Right Hand) (S.Steel)
2Brace, Main Back
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
44448520 Whirlpool Oven Bumper
5Insulation, Bottom Vent
6BRACKET,SIDE PANEL
7Top Chassis
8Bracket, Vent Sprt
9Tube, Vent
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Shield, Heat
14Frame, Front
15W11675844 Whirlpool Oven Gasket
16Deflector, Vent Bottom
174452152 Whirlpool Oven Mounting Bracket
18WP9757685 Whirlpool Guide Panel
19WP4449809 Whirlpool Screw
20Body, Side (White)
20Body, Side (Biscuit)
20BODY, SIDE BLACK
21Brace, Side Panel
22WP9760889 Whirlpool Door Latch
23WP9757807 Whirlpool High Limit Thermostat
24Clip, Side Panel
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
28Cover, Rear Standoff
29WPW10131825 Whirlpool Oven Temperature Sensor
30Bracket, GOC
31Slide, GOC
32W10083460 Whirlpool Slide Assembly
33Central, Appliance
34WP3196557 Whirlpool Screw
35WP3400832 Whirlpool Screw
36SCREW
37WP8300802 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
54Ve
54Vent, Bottom Upper (Black)
54Vent, Bottom Upper (Biscuit)
54Vent, Bottom Upper (S. Steel)
55WPL ARI87833A3
55WPL 9756485SS
55WPL 9756485WH
55WPL 9756817
55WPL 9756470
55WPL 9756485BL
55WPL 9756485BT
