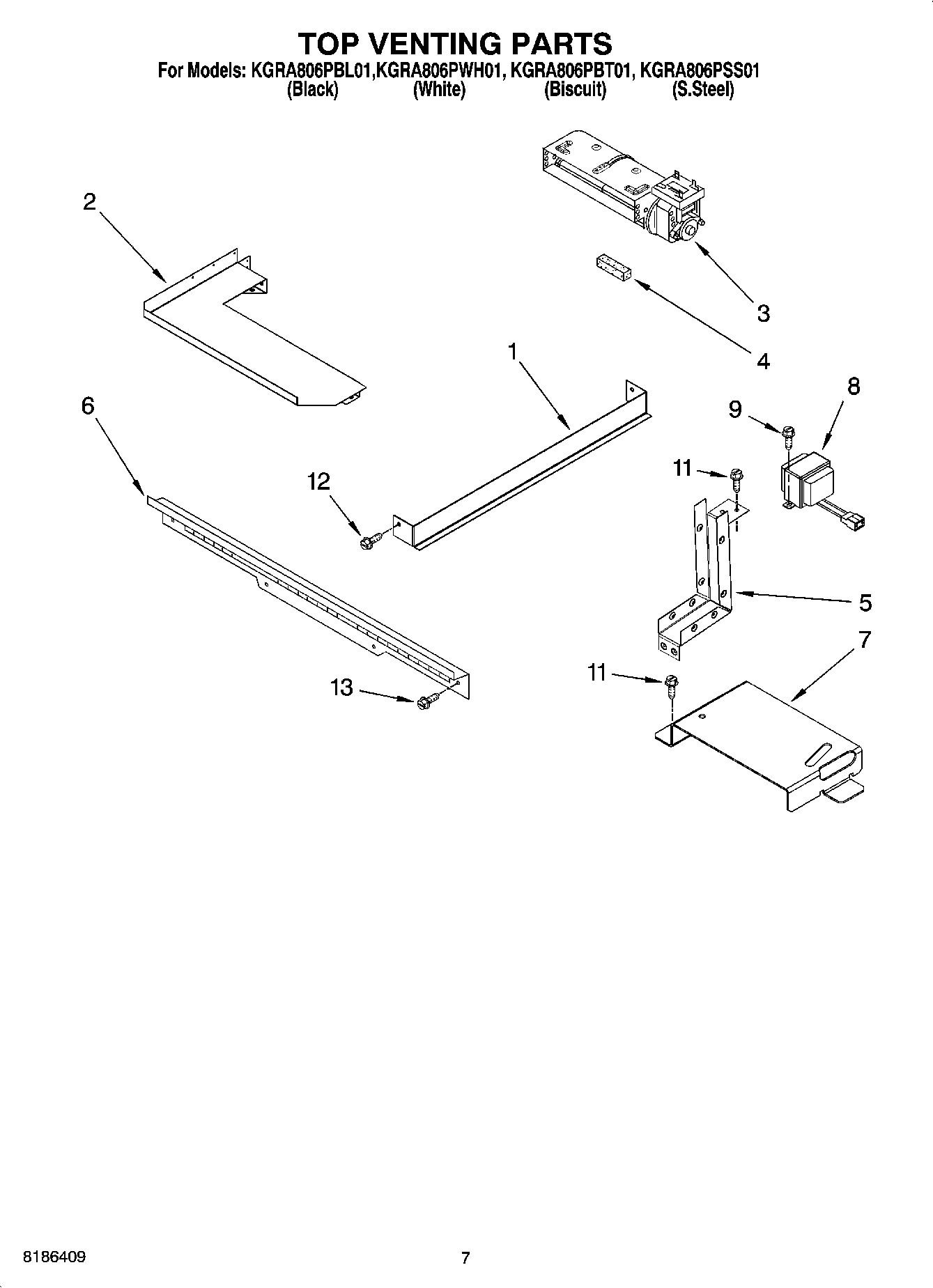

KGRA806PWH01 05 – TOP VENTING PARTS

Products

Position	Product
1	Front, Air Duct
2	Top, Air Duct (L.Hand)
2	Top, Air Duct (R.Hand)
3	W10810687 Whirlpool Blower Assembly
4	W10491987 Whirlpool Foam Seal
5	Corner, Air Duct (L.Hand)
5	Corner, Air Duct (R.Hand)
6	Vent, (Control Panel)
7	WP9757829 Whirlpool Mounting Bracket
8	Transformer
9	WP3196557 Whirlpool Screw
11	WP4449809 Whirlpool Screw
12	Screw
13	WP4450038 Whirlpool Screw
