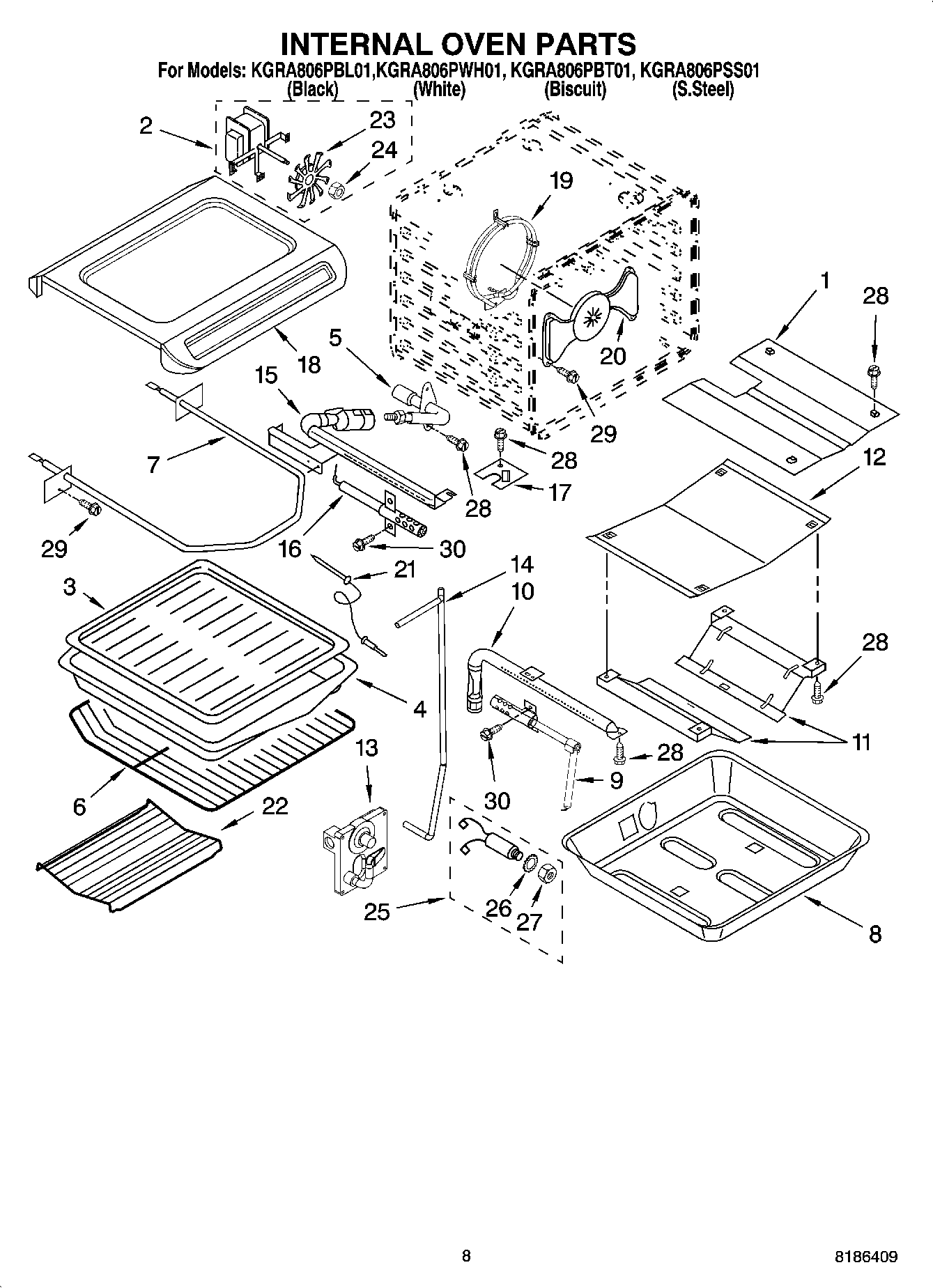

KGRA806PWH01 06 – INTERNAL OVEN PARTS

Products

Position	Product
1	Shield, Flame
2	Motor Convection
3	WP3195996 Whirlpool Pan Grid
4	W10737569 Whirlpool Broil Pan
5	9757779 Whirlpool Oven Fitting
6	WPW10179152 Whirlpool Rack Oven
7	Element, Broil
8	WPW10145744 Whirlpool Support
10	8191123 Whirlpool Oven Burner Assembly with Igniter
11	Shield, Oven (2)
12	Shield, Bake Flame
13	WP9763716 Whirlpool Gas Valve
14	Tube, Broil
15	Burner, Broil
16	WP8054129 Whirlpool Oven Igniter
17	Cover, Ignitor
18	WPW10272546 Whirlpool Broiler Pan
19	9760777 Whirlpool Oven Element
20	Cover, Fan
21	WP9755542 Whirlpool Oven Meat Probe
22	Rack, Roasting
23	WP4452226 Whirlpool Convection Fan
24	Nut
25	8186589 Whirlpool Jack Probe
26	WP9755547 Whirlpool Lockwasher
27	WP9755546 Whirlpool Locknut
28	SCREW
29	WP4449154 Whirlpool Screw
30	W11684507 Whirlpool Screw
