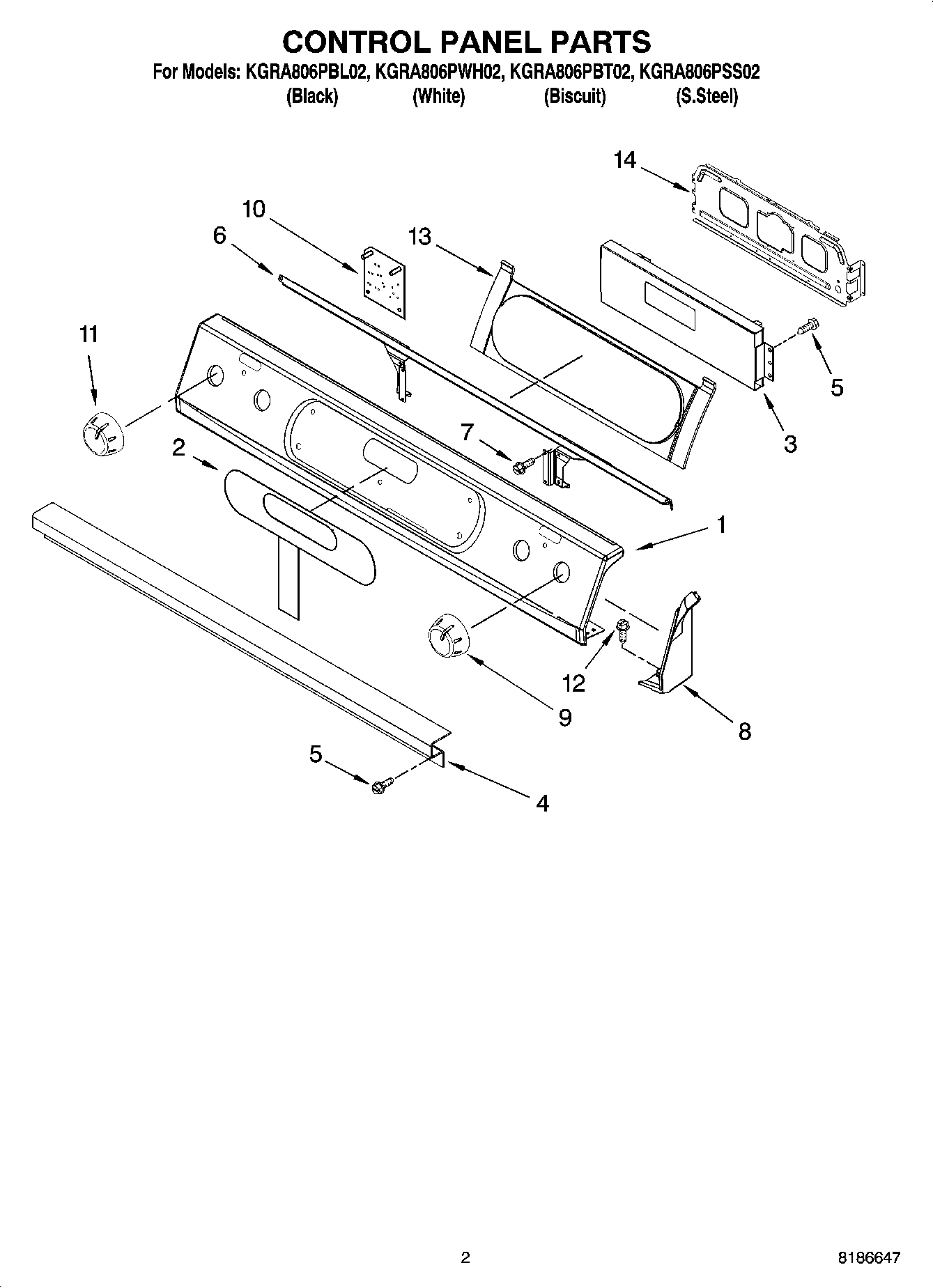

KGRA806PWH02 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Control Panel (Black)
1	Control Panel (Biscuit)
1	Control Panel (S.Steel)
1	Control Panel (White)
2	WP9756559BT Whirlpool Membrane Switch
2	Membrane Switch (White)
2	Membrane Switch (Black)
2	WP9756559ES Whirlpool Membrane Switch
3	Control, Migration
4	Bracket, Console
5	WP3196557 Whirlpool Screw
6	Bracket, User Interface
7	WP486579 Whirlpool Air Conditioner Screw
8	Endcap (Biscuit LH)
8	Endcap (Black LH)
8	Endcap (S.Steel LH)
8	Endcap (White LH)
8	Endcap (Black RH)
8	Endcap (Biscuit RH)
8	Endcap (S.Steel RH)
8	Endcap (White RH)
9	Knob (Biscuit)
9	Knob (Black)
9	Knob (White)
9	Knob, Burner (4) (Meteorite Model)
10	WPW10331686 Whirlpool Oven Spark Module
11	Knob (Biscuit)
11	Knob (Black)
11	Knob (Cashmere Metal)
11	Knob (White)
12	3196172 Whirlpool Oven Screw
13	Insert, Membrane
14	Support, Gas Valve
