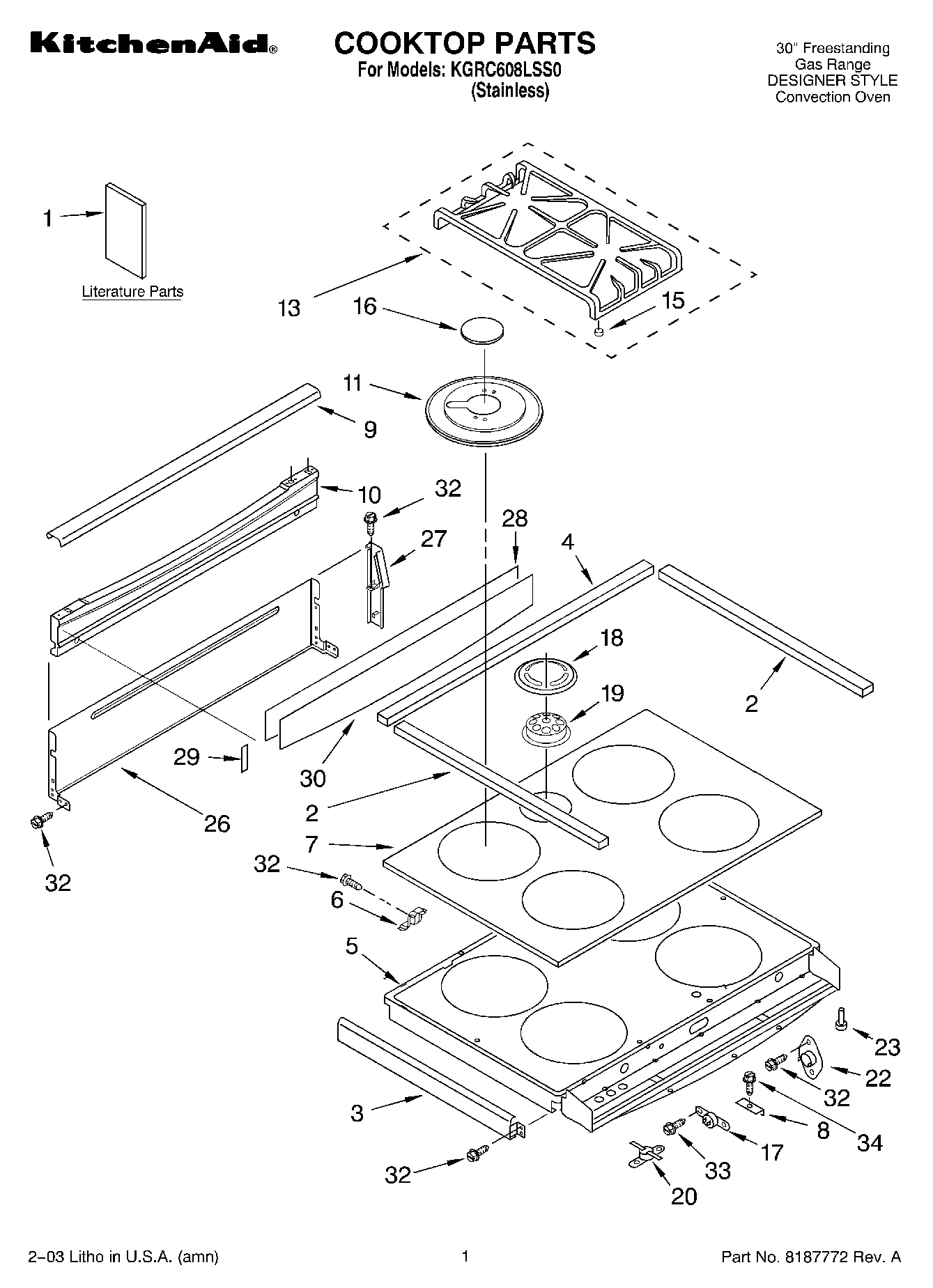

KGRC608LSS0 01 – COOKTOP PARTS

Products

Position	Product
1	Safer Cooking Tips
1	Use & Care Guide (English)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Easy Set Guide)
1	WPL LIT9752775
1	Literature Parts (Tech Sheet)
1	Literature Parts (LP Installation Instructions)
1	Literature Parts (Guide, Cleaner Use)
2	WP9780939 Whirlpool Cooktop Gasket
3	WPL 9751276PB
3	Trim, Cooktop (Black (Right))
4	Gasket, Silicone
5	Support, Burner
6	Washer, Pivot
6	Bracket, Pivot
7	Cooktop, Glass (Black)
8	Support Clips (4)
9	Cover, Light (Black)
10	Backsplash (Black)
11	(Bezel, Burner (Black)) (14K LF)
11	(Bezel, Burner (Black)) (6K RF-LR)
11	Bezel, Bu
13	WPL 9753616GB
15	814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
16	WPL 9753939GB
16	WP3191904 Whirlpool Burner Cap
16	WP3191898 Whirlpool Surface Burner Cap Black
17	Thermostat SPST (205)
18	WPL 9751271GB
19	WPL 9751366
20	WP9759944 Whirlpool Thermostat
22	WPL 9752006
23	238614 Whirlpool Bumper Hinge
26	Cover, Backsplash
27	Endcap, Backsplash (Black, Left)
27	Endcap, Backsplash (Black, Right)
28	WP9753292 Whirlpool Backsplash Glass
28	WPL 9753910CB
29	Vent, Door (Seal, Door Vent Side)
30	WPL 9754071
32	WP4159387 Whirlpool Compactor Screw
33	Back Splash (Screw (4) 10AB x 1/2“)
34	Screw, 10-16 x 1
