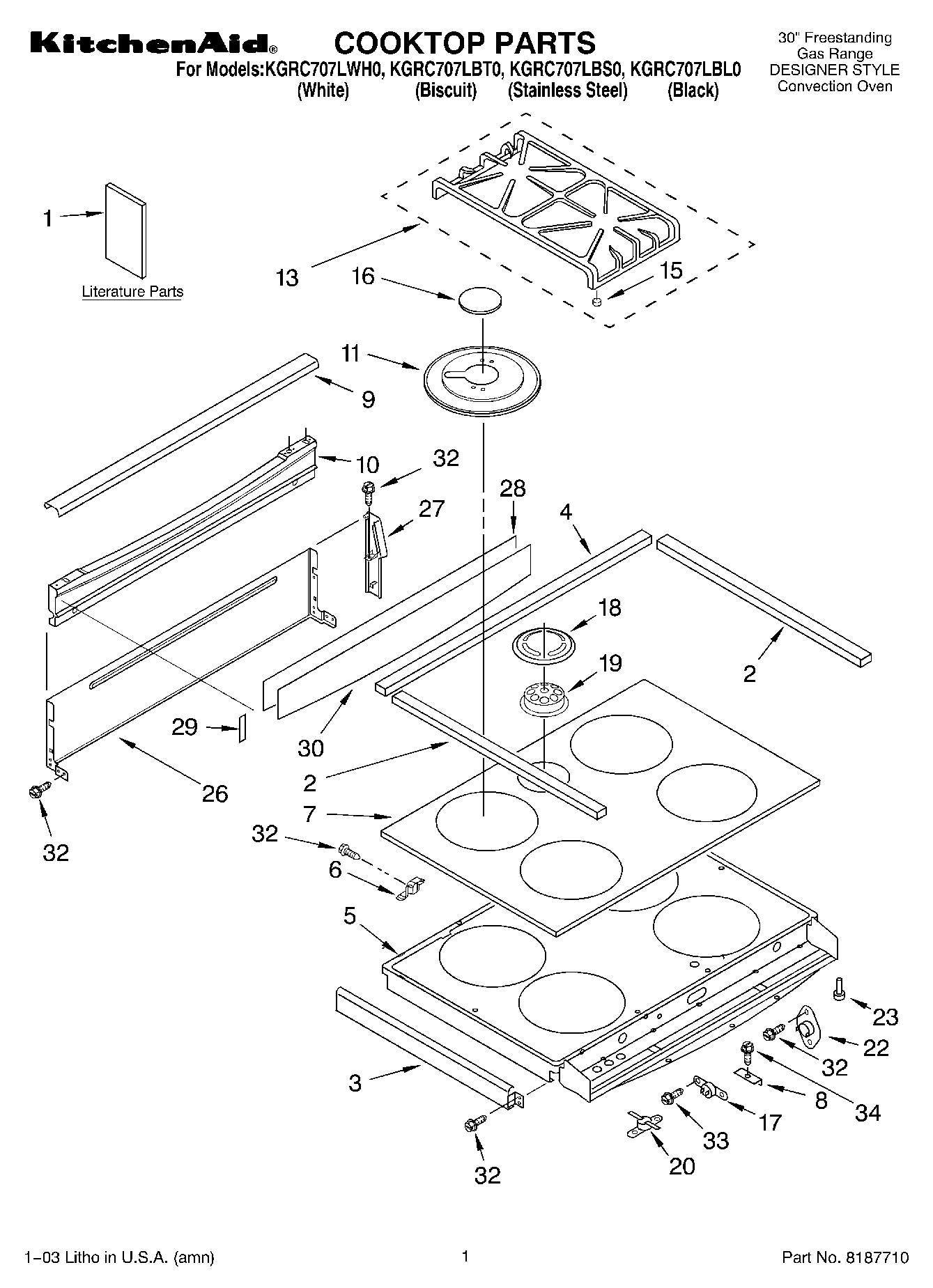

KGRC707LBL0 01 – COOKTOP PARTS

KGRC707LBL0 01 – COOKTOP PARTS

Written by

in

KGRC707LBL0 01 – COOKTOP PARTS

Products

PositionProduct
1Literature Parts (Wiring Diagram)
1Use & Care Guide (English)
1Literature Parts (Tech Sheet)
1Literature Parts (LP Installation Instructions)
1Literature Parts (Installation Instructions)
1Literature Parts (Easy Set Guide)
1WPL LIT9752775
1Safer Cooking Tips
2WP9780939 Whirlpool Cooktop Gasket
3Trim, Cooktop (White (Right))
3(Trim, Cooktop (Left Hand)) (White)
3WPL 9751276PB
3Trim, Cooktop (Black (Right))
3WPL 9751275PC
3WPL 9751276PC
4Gasket, Silicone
5Support, Burner
6Washer, Pivot
6Bracket, Pivot
7Cooktop, Glass (Opaque White)
7Cooktop, Glass (Black)
7Cooktop, Glass (Biscuit)
8Support Clips (4)
9Cover, Light (White)
9Cover, Light (Biscuit)
9Cover, Light (Black)
10Backsplash (White)
10Backsplash (Biscuit)
10Backsplash (Black)
11Bezel, Burner (Mouse Gray) (14K LF)
11WPL 9753602GS
11Bezel, Bu
11Bezel, Burner (Mouse Gray) (6K RF-LR)
11(Bezel, Burner (Black)) (6K RF-LR)
11(Bezel, Burner (Black)) (14K LF)
13WPL 9753616GS
13WPL 9753616GB
15814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
16WPL 9753939GS
16WPL 9753939GB
16WP3191904 Whirlpool Burner Cap
16WP3191898 Whirlpool Surface Burner Cap Black
16WP3191905 Whirlpool Burner Cap
16Cap, Burner 6K (1) (Gray)
17Thermostat SPST (205)
18WPL 9751271GB
18WPL 9751271GW
19WPL 9751366
20WP9759944 Whirlpool Thermostat
22WPL 9752006
23238614 Whirlpool Bumper Hinge
26Cover, Backsplash
27Endcap, Backsplash (Black, Left)
27Endcap, Backsplash (Biscuit, Left)
27Endcap, Backsplash (White, Left)
27Endcap, Backsplash (Biscuit, Right)
27Endcap, Backsplash (White, Right)
27Endcap, Backsplash (Black, Right)
28WPL 9753910CB
28WPL 9753910CC
28WPL 9754071
28WPL 9753910CW
29Vent, Door (Seal, Door Vent Side)
30WP9753292 Whirlpool Backsplash Glass
32WP4159387 Whirlpool Compactor Screw
33Back Splash (Screw (4) 10AB x 1/2“)
34Screw, 10-16 x 1
