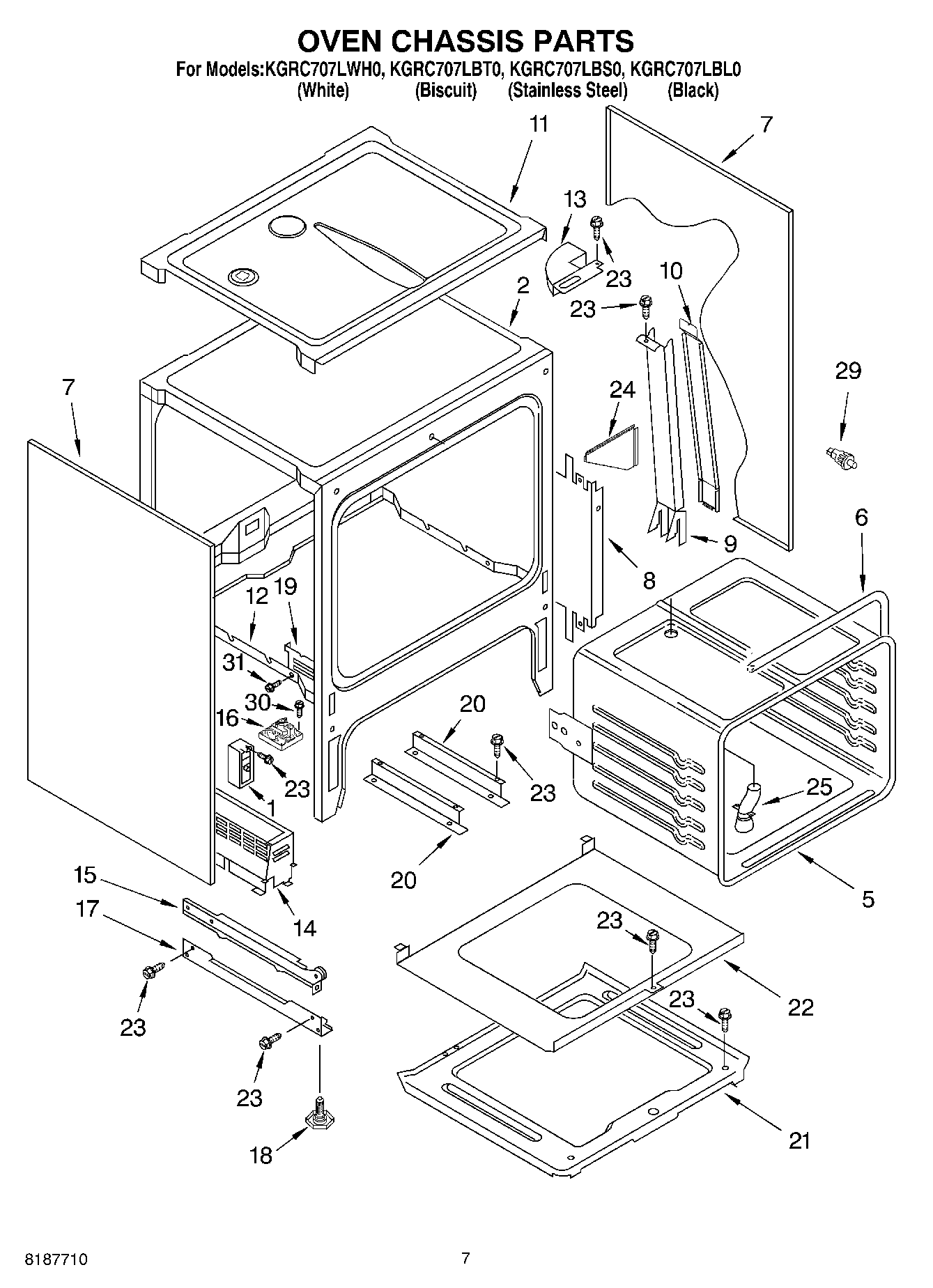

KGRC707LBL0 05 – OVEN CHASSIS PARTS

Products

Position	Product
1	WPW10110491 Whirlpool Spark Module
2	Chassis, Front
5	Oven Liner
6	Gasket, Oven
7	Body, Side (Black)
7	Body, Side (Biscuit)
7	Body, Side (White)
8	Shield, Insulation
9	Duct, Side Fan
10	Fan Duct, Cover
11	Burner Box
12	Retainer, Insulation
13	Duct, Top
14	Support, Fan
15	Drawer Rail, Left
15	Rail, Drawer (Right)
16	Motor, Fan
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Base L or R
20	Support Rail
21	Shield
22	Plate, Reflector
23	WP4159387 Whirlpool Compactor Screw
24	Shield, Heat
25	Vent Tube
29	Door Switch
30	Screw, (3) No.8 x 1“
31	Screw (2) 8 x 3/8
