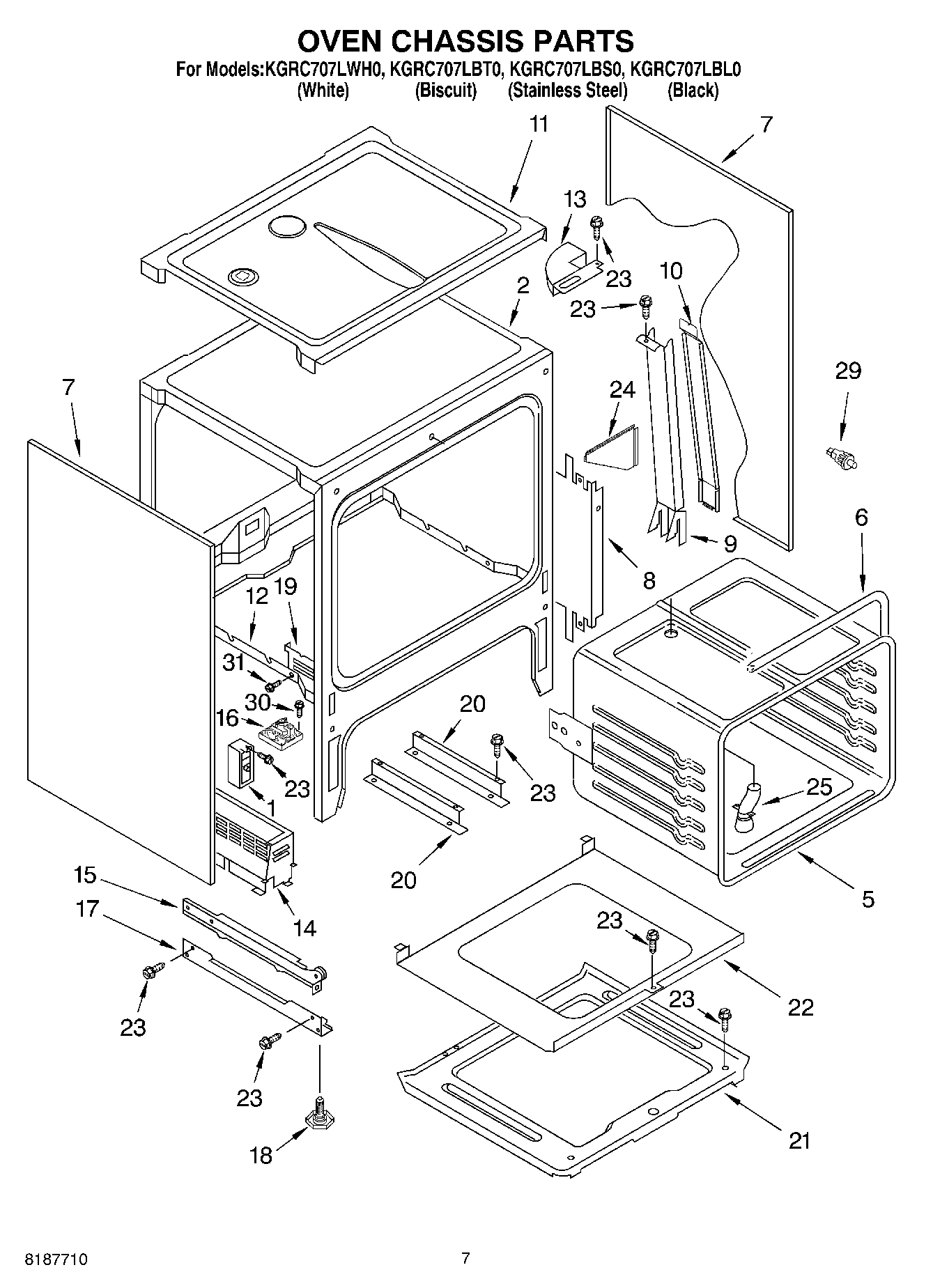

KGRC707LBS0 05 – OVEN CHASSIS PARTS

Products

PositionProduct
1WPW10110491 Whirlpool Spark Module
2Chassis, Front
5Oven Liner
6Gasket, Oven
7Body, Side (Black)
7Body, Side (Biscuit)
7Body, Side (White)
8Shield, Insulation
9Duct, Side Fan
10Fan Duct, Cover
11Burner Box
12Retainer, Insulation
13Duct, Top
14Support, Fan
15Drawer Rail, Left
15Rail, Drawer (Right)
16Motor, Fan
17Bottom Rail (2)
18WPW10058460 Whirlpool Appliance Levelling Leg
19Hinge, Base L or R
20Support Rail
21Shield
22Plate, Reflector
23WP4159387 Whirlpool Compactor Screw
24Shield, Heat
25Vent Tube
29Door Switch
30Screw, (3) No.8 x 1“
31Screw (2) 8 x 3/8
