KGRC707LBT0 08 – REAR CHASSIS PARTS, MISCELLANEOUS PARTS

KGRC707LBT0 08 – REAR CHASSIS PARTS, MISCELLANEOUS PARTS

Written by

in

KGRC707LBT0 08 – REAR CHASSIS PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI87887A2
WPL 9781055
WPL 9752717
WPL 9753374
WPL 9755120
WPL 9755024
WPL 9782443
WPL 9754366
WPL 9782111
WPL 9755193
WPL 9751868
Grease
8212471 Whirlpool Oven Paint
Insulation
Insulation, Rear
1
Insulation, Wrap
WPL 9782344
WPL ARI87886A9
WPL ARI87885A8
WPL ARI87884A4
WPL ARI87883A8
WPL ARI87882A8
WPL ARI87881A7
WPL ARI87880A6
WPL ARI87879A7
WPL ARI87878A1
WPL 9782466
WPL 9782465
WPL 9782460
WP9755428 Whirlpool Orifice Spud
WPL 9754301
WPL 9782454
Wire (14 Ga. 200 c Brown)
350930 Whirlpool White Spray Paint
FOIL, ALUMINUM OVEN (18“ X 25 )
WA906B Whirlpool Cooktop Glass Scraper
Wire, 25` Roll (Black 14 Ga.)
Wire, 25` Roll (Red 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
WPW10339879 Whirlpool Wire Tie
285006 Whirlpool Spray
Almond (Uncut)
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
Clip, Wire
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
242831 Whirlpool Oven Wire
WPL 9751745
3400964 Whirlpool Oven Clip

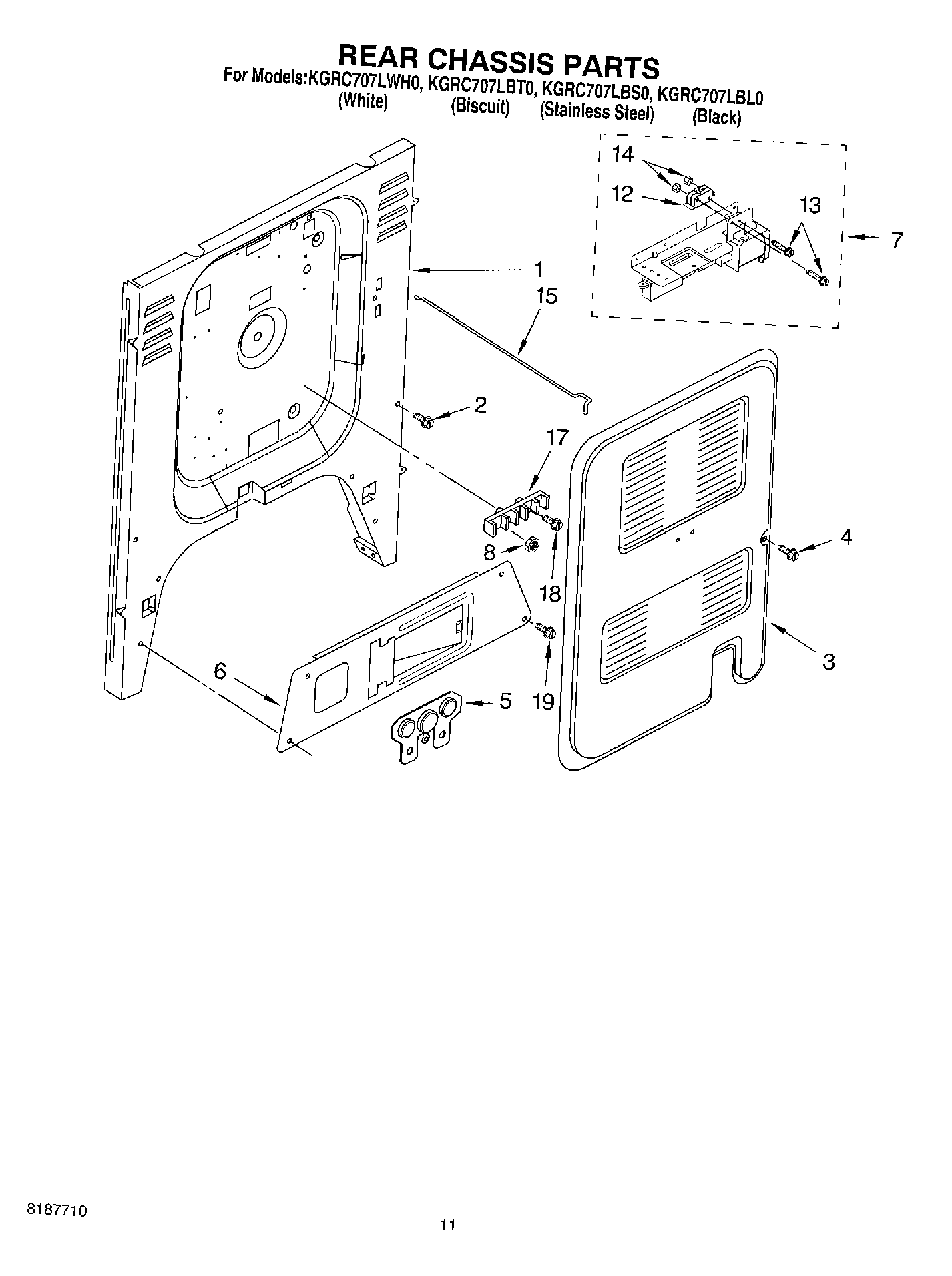

1Back panel, Chassis
2340184 Whirlpool Screw
3Panel, Rear Cover
4Screw (4) 10 x 3/8
5Suppressor, Trans
6Bracket, Regulator Valve
7Oven Lock Assembly
8WP112432 Whirlpool Nut Assembly
12Switch, Interlock
13Screw, (2)
14Nut (2)
15Rod, Lock
17WP8203546 Whirlpool Terminal Block
18Screw, (2) 10-16 x 1
19WP4159387 Whirlpool Compactor Screw
