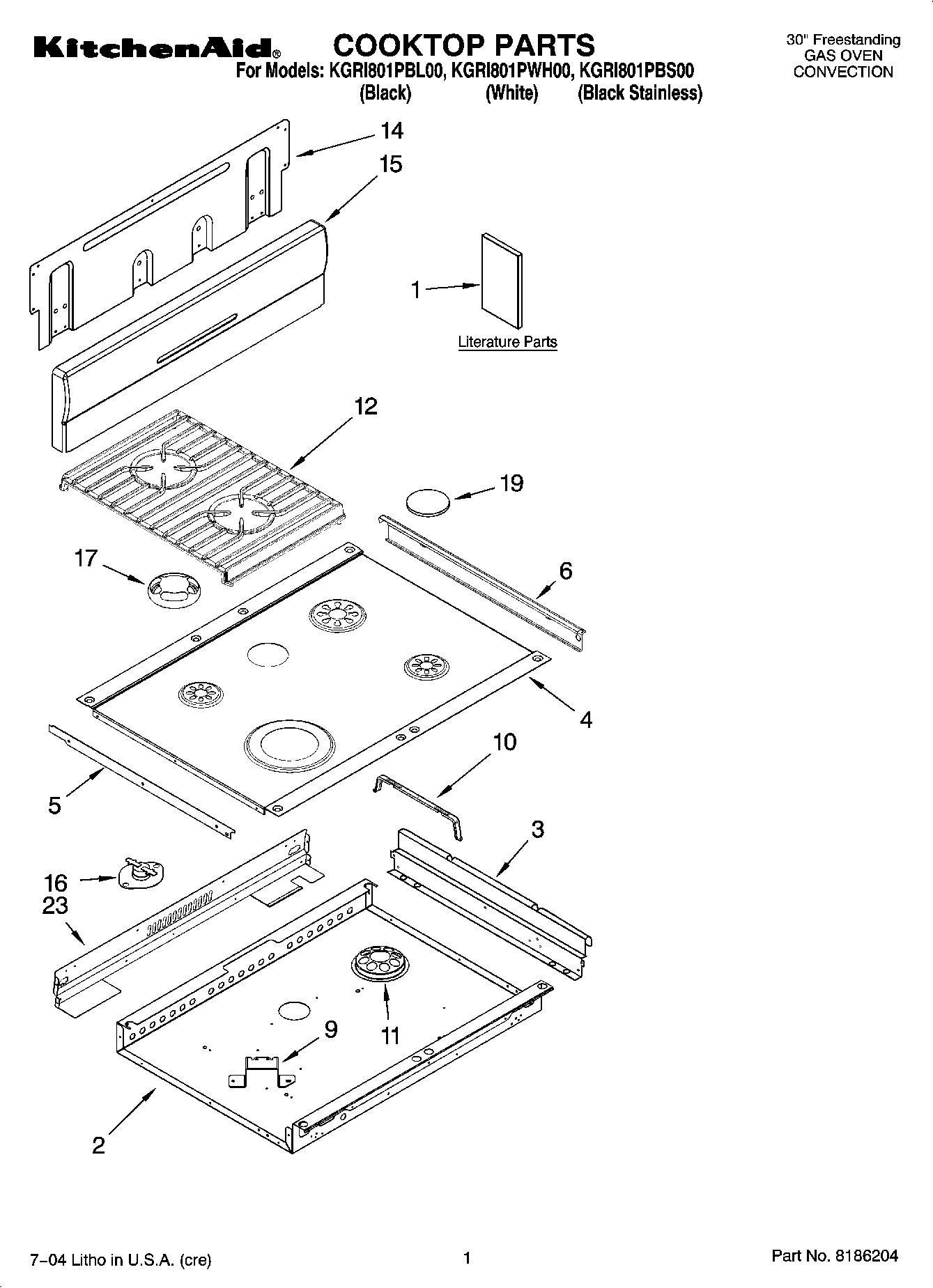

KGRI801PBL00 01 – COOKTOP PARTS

Products

PositionProduct
1Installation Instructions
1Use & Care Guide
1Anti-Tip Instruct.
1Tech Sheet
1Safe Cooking Tips
2Burner Box
3Bracket, Mounting
4Cooktop (White)
4Cooktop (Black)
5Wall, Side Cktp (Black)
5Wall, Side Cktp (White)
6Trim-CkTop, SI (White RH)
6Trim-CkTop, SI (Black RH)
6Trim-CkTop, SI (White LH)
6Trim-CkTop, SI (Black LH)
9WP12990527 Whirlpool Microwave Screw
9Bracket, Burner
10WP9756821 Whirlpool Support
10WP4449809 Whirlpool Screw
11Dome Cap, Vent
12Grate, Burner (Mouse Grey)
12Grate, Burner (Coal Black)
12Grate, Burner (Black)
14Cover, Backsplash Rear
15Backsplash (White)
15Backsplash (Black)
15Backsplash (Black)
15Backsplash (Gray)
16W10491985 Whirlpool Screw
16WP9759944 Whirlpool Thermostat
17Vent, Center (Black)
17Vent, Center (White)
19WP3191904 Whirlpool Burner Cap
19WP3191905 Whirlpool Burner Cap
19Cap, Burner 6K (1) (Gray)
19WP8284669 Whirlpool Burner Cap
19WP4456536 Whirlpool Burner Cap
19WPL 9753939GS
19WPL 9753939GB
19WP8273343 Whirlpool Burner Cap
19Cap, Burner ((14K))
19WP3191898 Whirlpool Surface Burner Cap Black
23Screw (4)
23WPL 9759627
